OPERATING INSTRUCTIONS
EXTENDING THE PULLOUT SECTION
NOTE: The jib must be erected before extending the
pullout section. Do not attempt to extend the
pullout section while the jib is stowed.
1. Retract the boom completely and boom down to
minimum boom angle.
2. Attach the dead end of the wire rope to the eye on
the bottom of the jib tip. This is done to prevent the
pullout from extending uncontrollably.
3. Unplug the pull out anti two-block plug from the anti
two-block Retracted socket. Move the dummy plug
from the extended socket to the retracted socket.
4. Remove pullout retaining pin from the retaining pin
hole.
5. Pay out cable and extend the pullout until the retain-
ing pin holes line up. Install retaining pin.
6. Plug the anti two-block plug into the anti two-block
Extended socket.
7. Test the anti two-block system by lifting the anti two-
block weight. The light and audible alarms should be
actuated in the cab and the boom down, boom
extend, and winch up controls should disconnect.
RETRACTING THE PULLOUT SECTION
1. Retract the boom completely and boom down to
minimum boom angle.
2. Unplug the anti two-block plug from the anti two-
block Extended socket. Move the dummy plug from
the retracted socket to the extended socket.
3. Attach the dead end of the wire rope to the eye on
the bottom of the jib tip.
4. Remove pullout retaining pin from the erected retain-
ing pin hole.
5. Winch up slowly to retract the pullout until the
retracted retaining pin holes line up and install
retaining pin.
6. Plug the anti two-block plug into the anti two-block
Retracted socket.
7. Test the anti two-block system by lifting the anti two-
block weight. The light and audible alarms should be
actuated in the cab and the boom down, boom
extend, and winch up controls should disconnect.

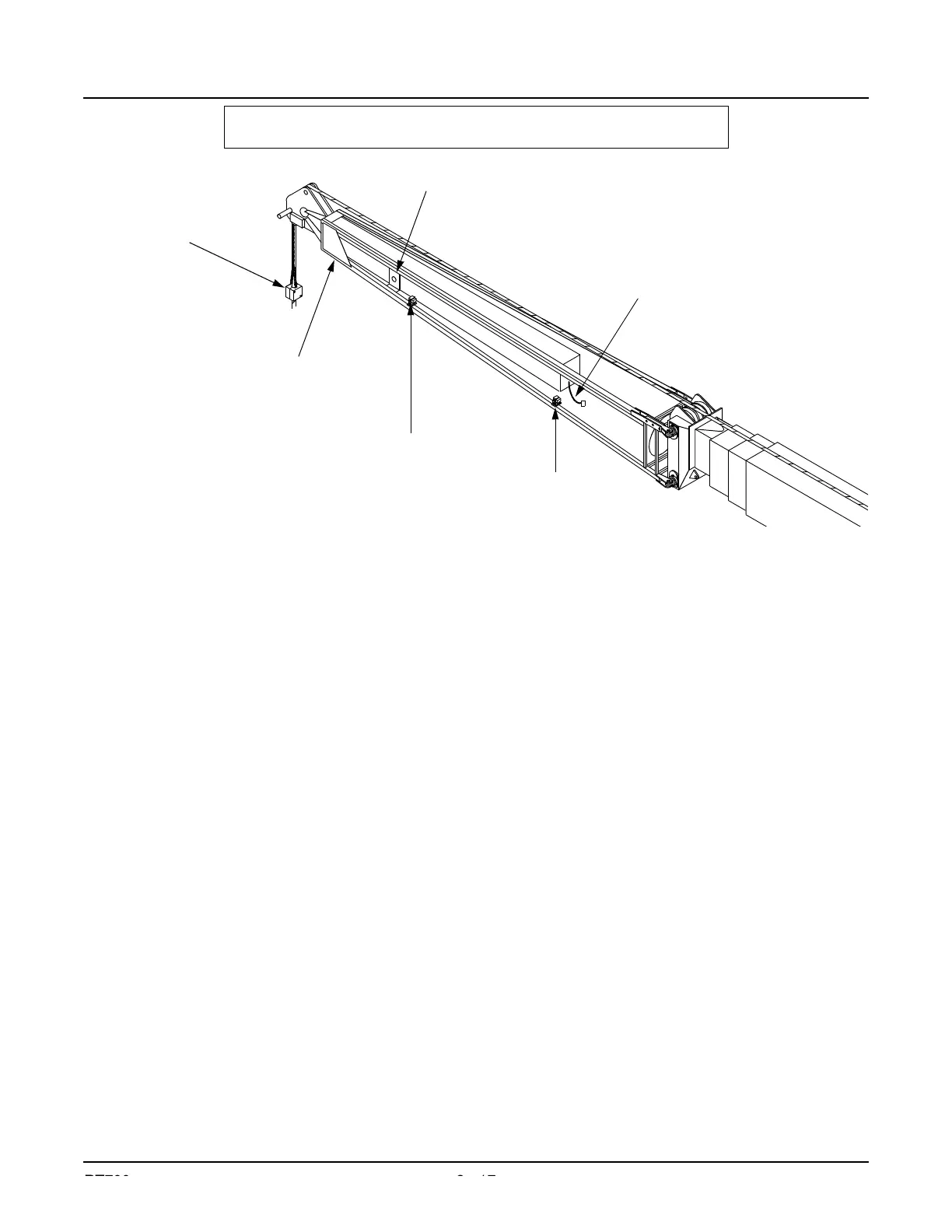

EXTENDING AND RETRACTING THE JIB PULLOUT SECTION
Anti Two-block
Anti Two-block
Retracted Socket
Extended Socket
Pull Out Retaining
Pin Hole
Anti Two-block Weight
Attach Dead-end Of Rope
Pull out
Anti Two-block
Plug
3 - 17RT700
