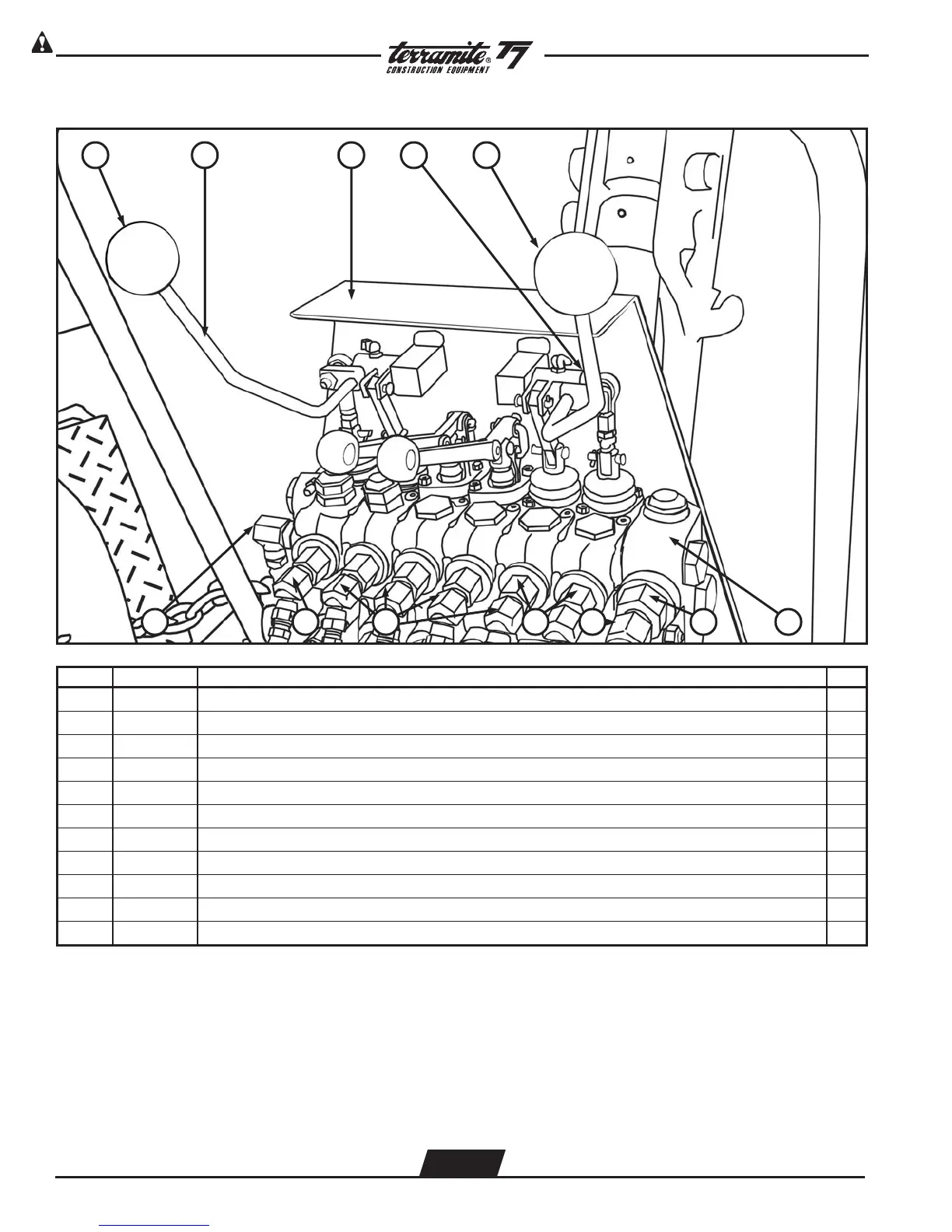

View from Operator Position of Rear Valve (Straight Boom - Non 180 Only)
1 2 3 4 1
567891011
ITEM PART NUMBER DESCRIPTION QTY.
1 13942 Knob, Red, Wobblestick Handle, Valve, T5C/T5D/T6/T7/T9 2
2 13073 Handle, Wobblestick, Left Rear 2
3 14050 Decal, Wobblestick and Operator Hazard 1
4 13123 Handle, Wobblestick, Right Rear 1
5 13400 Valve, Rear 1
6 25128 Fitting, #12 O’ring x
1
/2” FPT 2
7 21788 Fitting,
1
/2”M x
1
/2”FM 45, Swivel 2
8 25286 Fitting,
3
/4”MB x
3
/8”F, Bushing HD 12
9 21764 Fitting,
3
/8”M x
1
/4”F 45, Swivel 9
10 21765 Fitting,
3
/8”MP x
1
/4”FP 45, Restrictor 3
11 25718 Fitting,
7
/8”MP 90 x
1
/2”, Swivel 1
