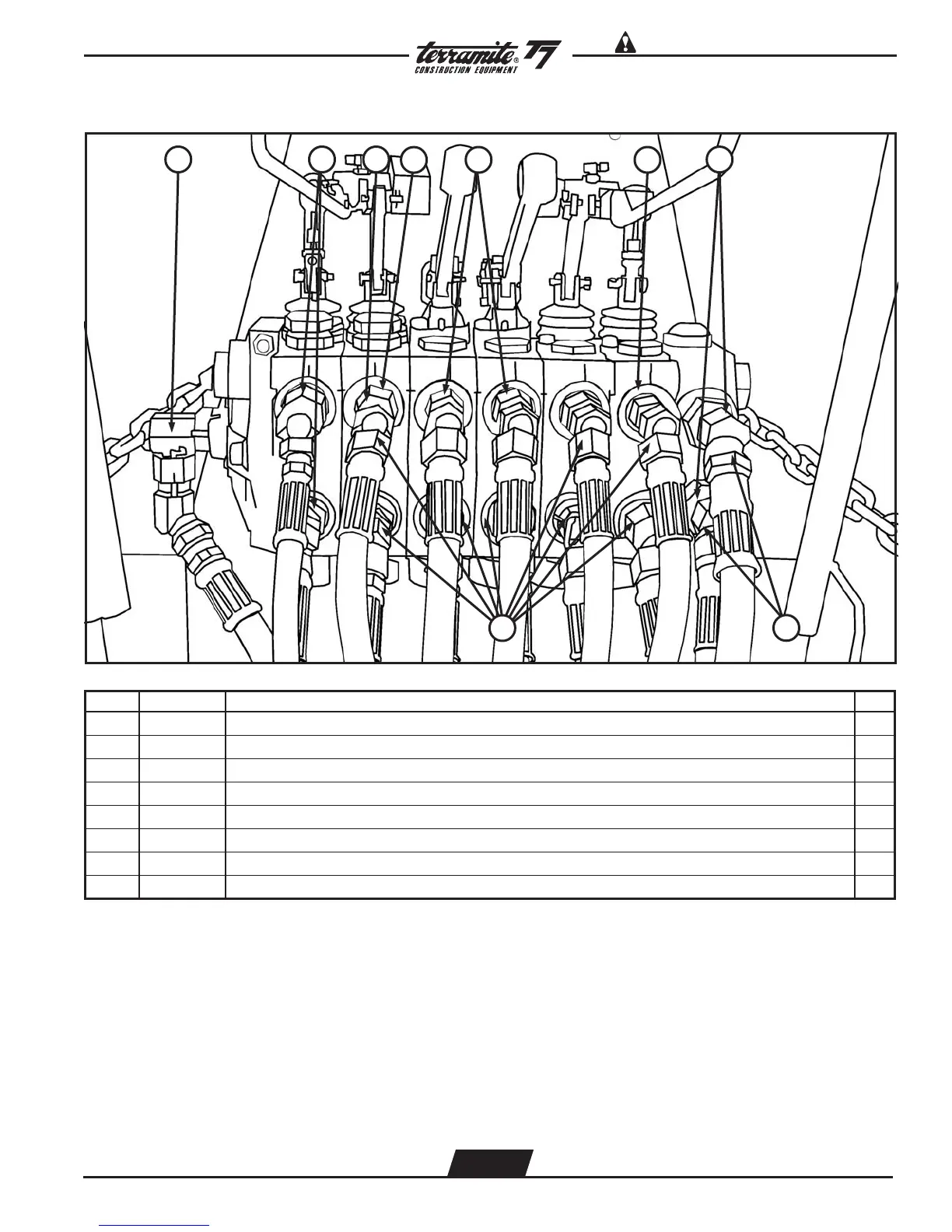

View from Operator Position of Rear Valve Curved Boom Prior to 1-1-01 Non 180 Only
ITEM PART NUMBER DESCRIPTION QTY.
1 25718 Fitting,
7
/8" MP 90 x
1
/2", Swivel 2
2 21765 Fitting,
3
/8" MP x
1
/4" FP 45 - Restrictor 2
3 13048 Restrictor, w/spring, Rear Valve 1
4 85031 Checks, Anti-Cavitation, (Not Shown) 2
5 25286 Fitting,
3
/4" MB x
3
/8" F, Bushing HD 12
6 20065 Fitting, #12 O'Ring x
1
/2" FPT 2
7 21788 Fitting,
1
/2" M x
1
/2" FM 45, Swivel 2
8 21764 Fitting,
3
/8" M x
1
/4" F 45, Swivel 8
1 2 3
6
8
7
4
2 5
o
o
2.37
