Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation

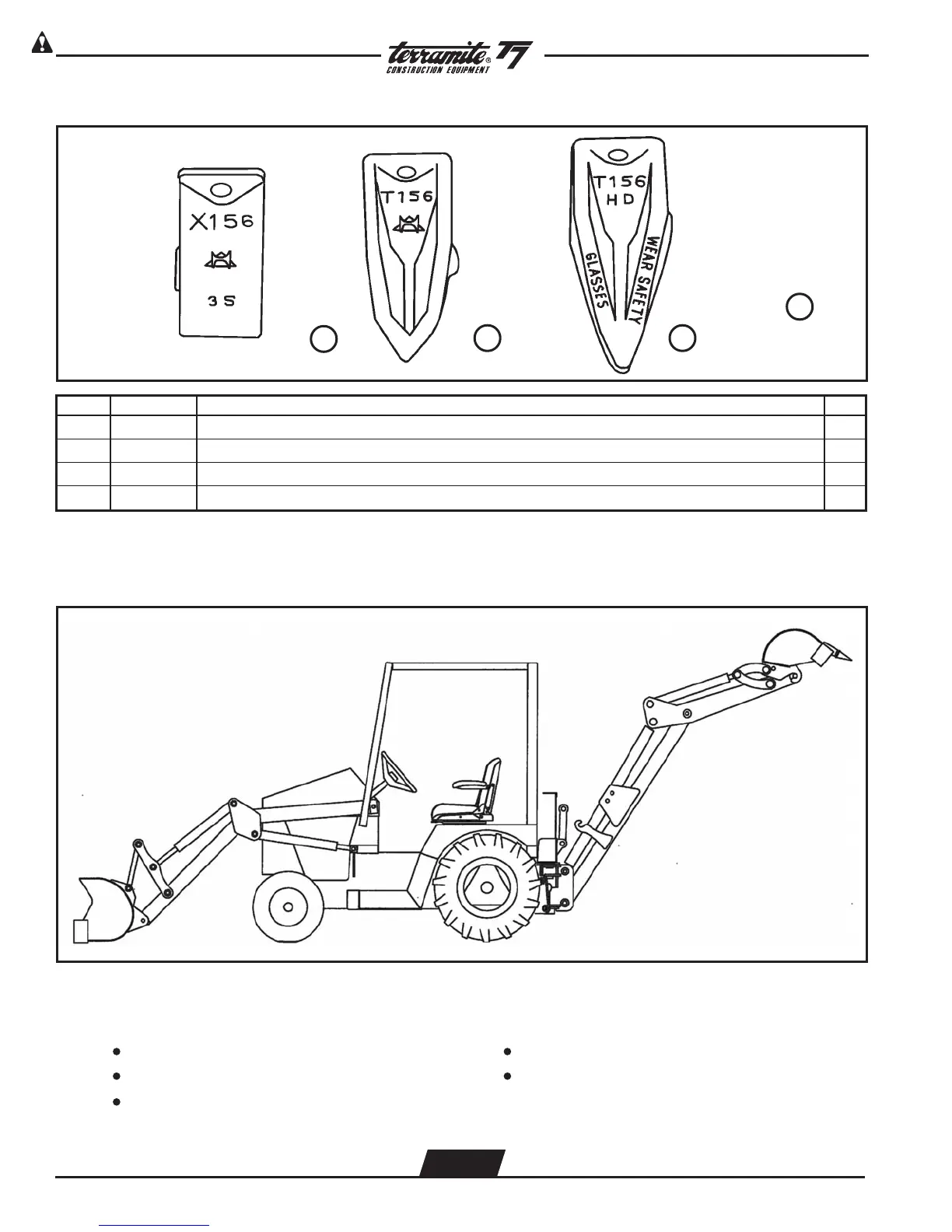

NOTE: Filling tank with loader or backhoe in any other position will result in overfilling and spillage of fluid
through the breather cap. Replace cap if oil should ever spill out of breather cap since it will clog off
the air supply that the systems needs to operate properly.
Position machine must be in to check proper level in hydraulic tank.
Loader arm lifted off ground a few inches. Backhoe dipper fully extended
Front loader bucket curled back Backhoe Bucket curled all the way back
Backhoe boom in full raised position
Tooth Caps
1
2 3
4
ROLL PIN
Not Shown
ITEM PART NUMBER DESCRIPTION QTY.
1 10500 Cap, Tooth, Standard Pin, T5C/T5D/T6/T7/T9 NA
2 10590 Cap, Tooth, Tiger NA
3 10591 Cap, Tooth, Tiger, HD NA
4 10530 Roll Pin, Tooth Cap, SD NA
2.54
