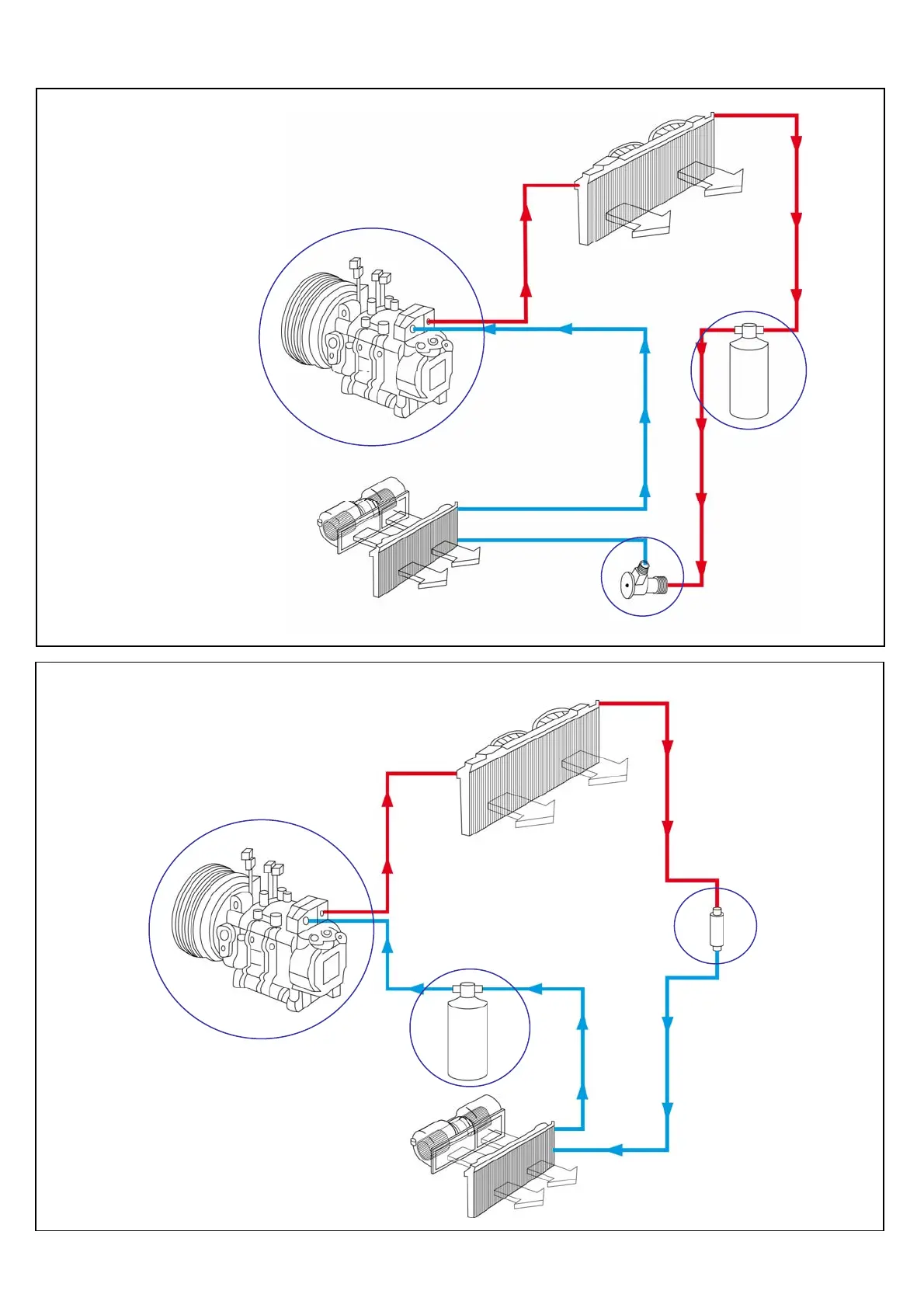

Components to remove from
A/C systems with TXV
Components to remove from
A/C systems with orifice tube
(1)
(1)
(2)
(2)
(3)
(3)
(1) Compressor
(2) Accumulator
(3) Orifice tube
(1) Compressor
(2) Receiver drier
(3) Thermostatic expansion valve
Condenser
Condenser
Evaporator
Evaporator
