6.3 Installation of bridges and adapters

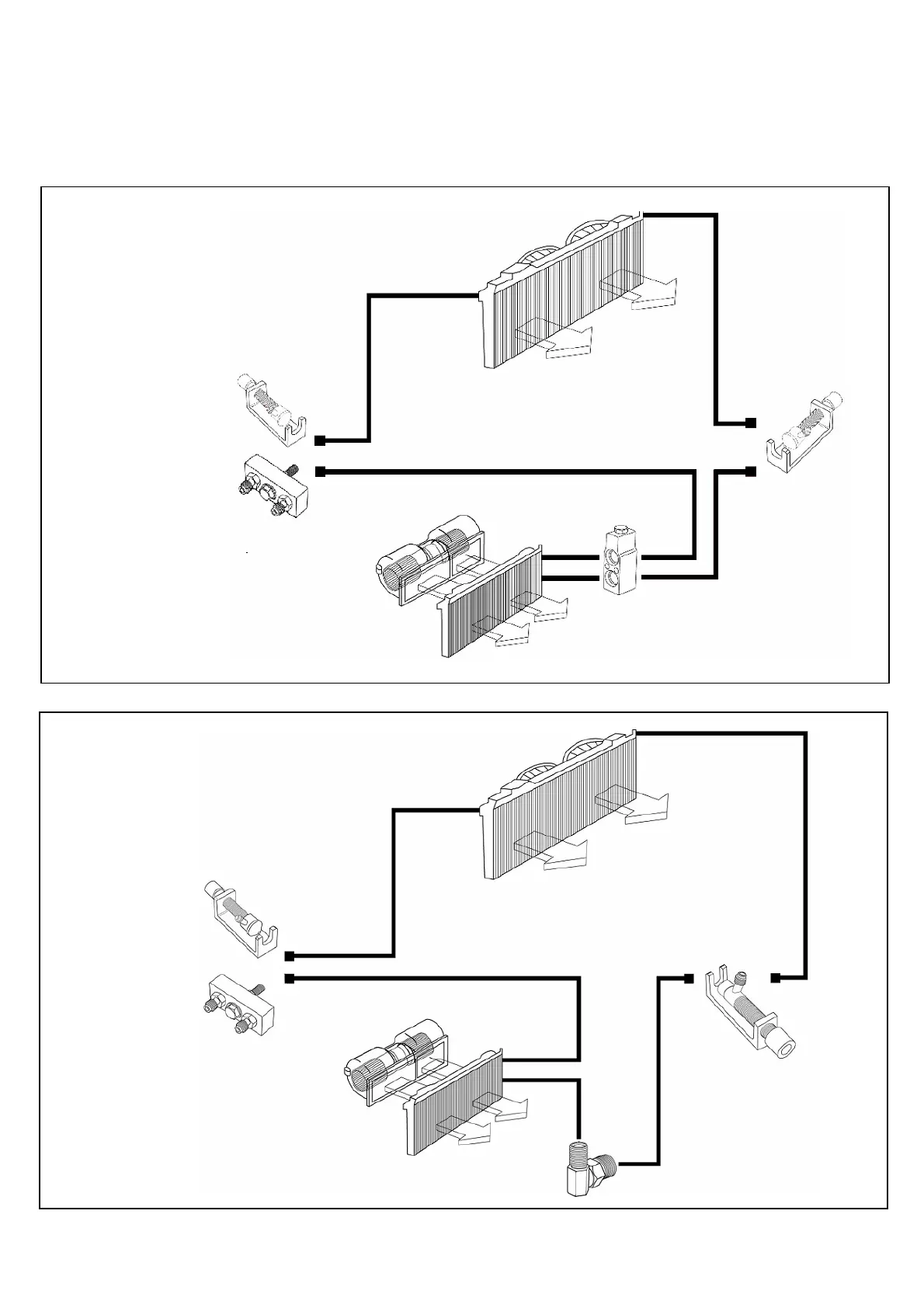

Depending on the system configuration, you need to install adapters and bridges supplied with
the kit. The next 3 drawings are illustrating common situations encountered on A/C systems.
Compressor
location
Receiver
drier
location
System equipped with Block
type expansion valve
System equipped with thermostatic
expansion valve
(1)
(2)
(1)
(1) Universal adapter
(2) Compressor bridge
(3) Block expansion valve bridge
(3)
(1) Universal adapter
(2) Compressor bridge
(3) Thermostatic Expansion valve bridge
(1)
(2)
(1)
(3)
Compressor
location
Receiver
drier
location
Evaporator
Condenser
Condenser
Evaporator
