TEXA ACKF01 - Flushing the Condenser Side

ACKF01_GB_00 TEXA S.p.A. 92/122
6.5.3 Flushing the condenser side
In order to prevent particles from the faulty compressor contaminating the rest of the system;
start flushing towards the compressor location against the regular flow of the A/C system .

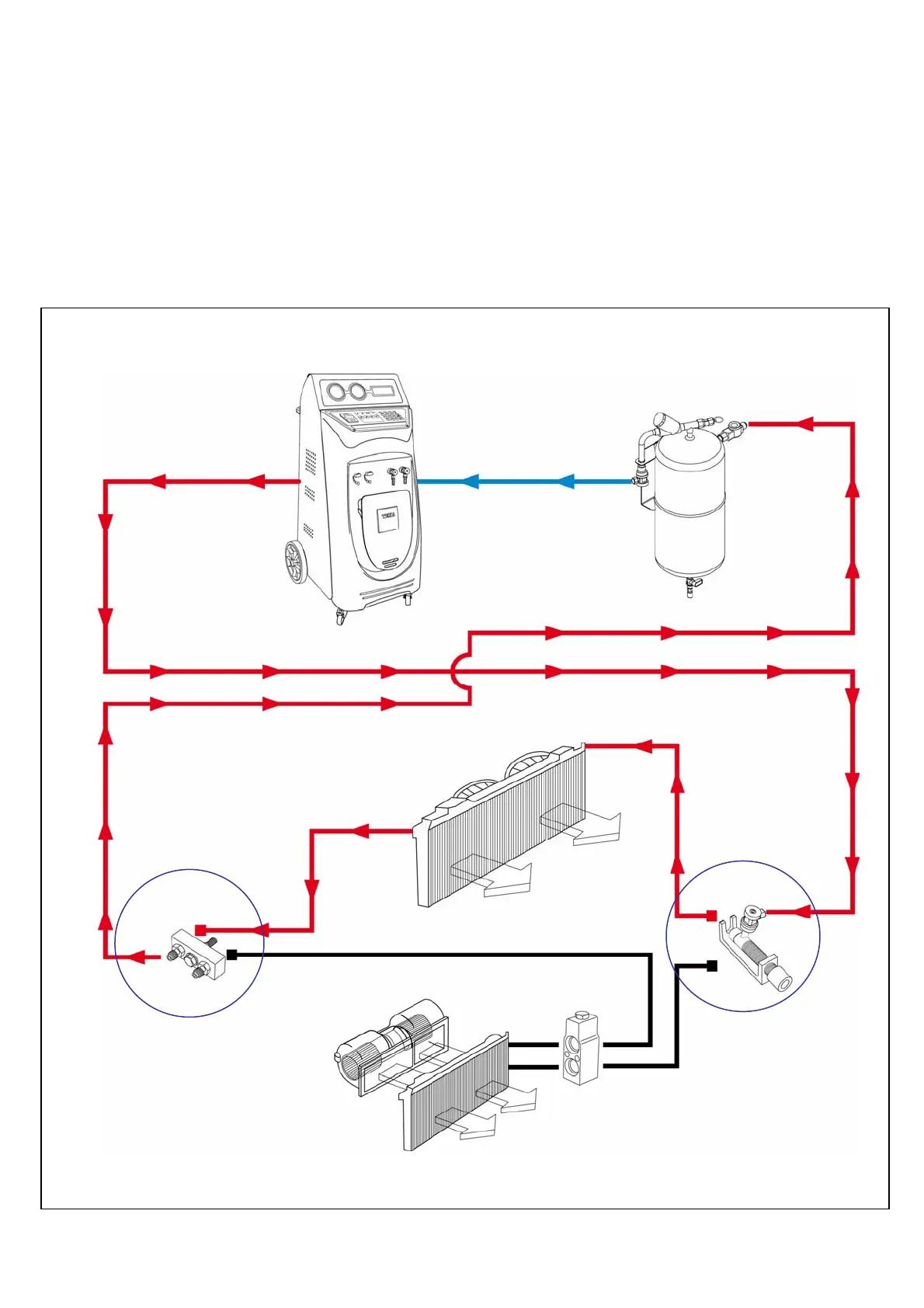

Connect the Konfort unit to system as following :
(1)Konfort red service hose with HP coupler to the receiver drier location
(2)Canister red service hose 3/8’’ SAE P/N 3900171 to the compressor location
Compressor
location
Receiver
drier
location
(1)
(2)
Condenser
Evaporator
