TEXA ACKF01 - Flushing Connections Examples

ACKF01_GB_00 TEXA S.p.A. 87/122

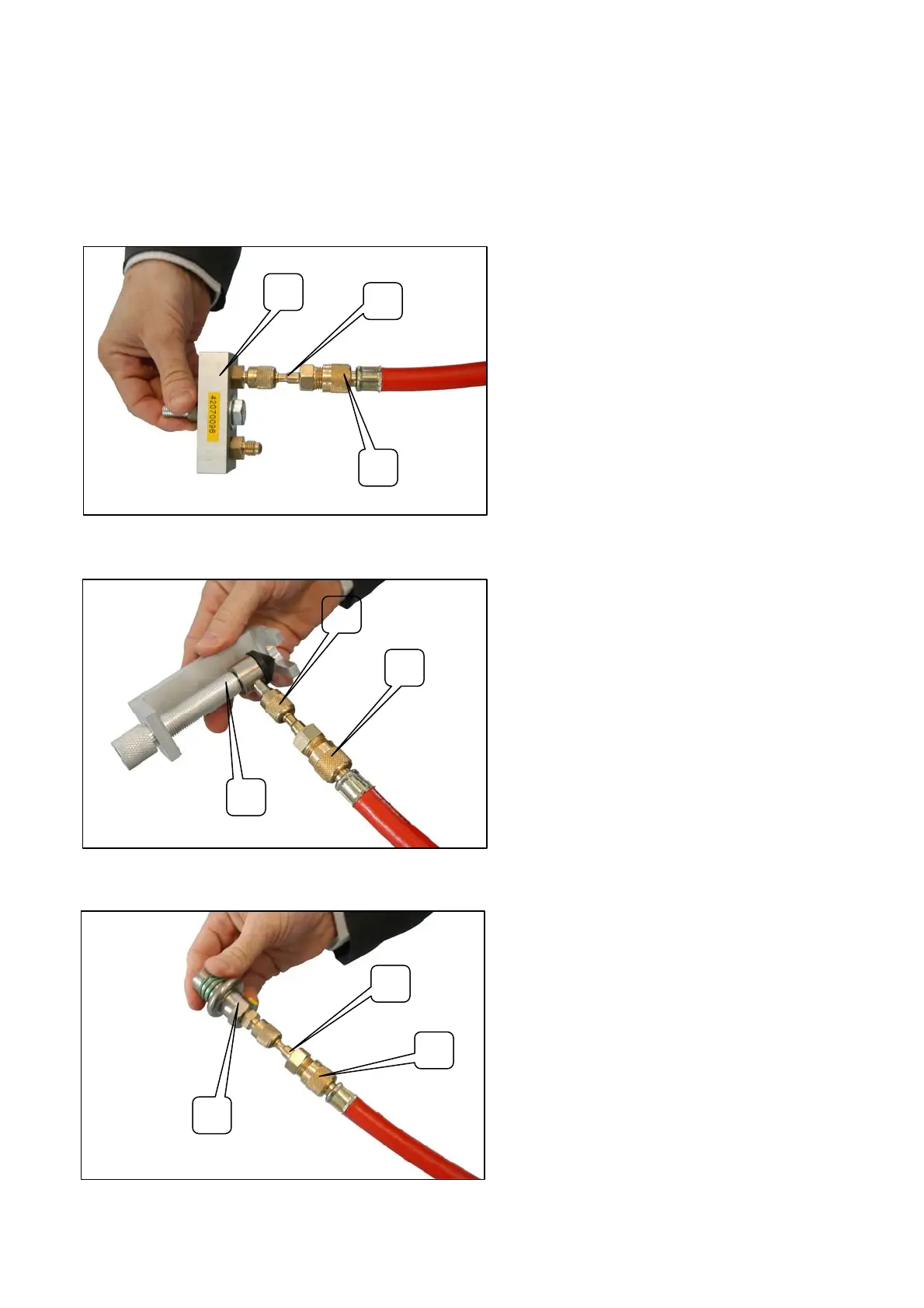

6.4 Examples of adaptors and connections for flushing
Following are described various examples of connections which can be used for flushing the
A/C systems. You need to choose the appropriate connection depending on configuration of the
encountered system. (The Universal flushing adapter case P/N 3134, contains about 60
different types of adapters)
(With ¼’’ x 3/8’’ adapter P/N 3900172
installed between)
Example 1
(1) Red flushing hose P/N 3900171
(2) ¼’’ x 3/8’’ adapter P/N 3900172
(3) Compressor bridge P/N 42070096
Example 2
(1) Red flushing hose P/N 3900171
(2) ¼’’ x 3/8’’ adapter P/N 3900172
(3) Universal adaptor P/N 42070098
Example 3
(1) Red flushing hose P/N 3900171
(2) ¼’’ x 3/8’’ adapter P/N 3900172
(3) “Spring-lock” adaptor P/N 42070086
3
2
1
1
2
3
1
2
3
