ACKF01_GB_00 TEXA S.p.A. 93/122
6.5.4 Back-flushing the condenser side
In order to perform the final pass of flushing, reverse the connections to the system. In this
situation you will be back-flushing towards the receiver drier location and in the regular flow of
the A/C system.

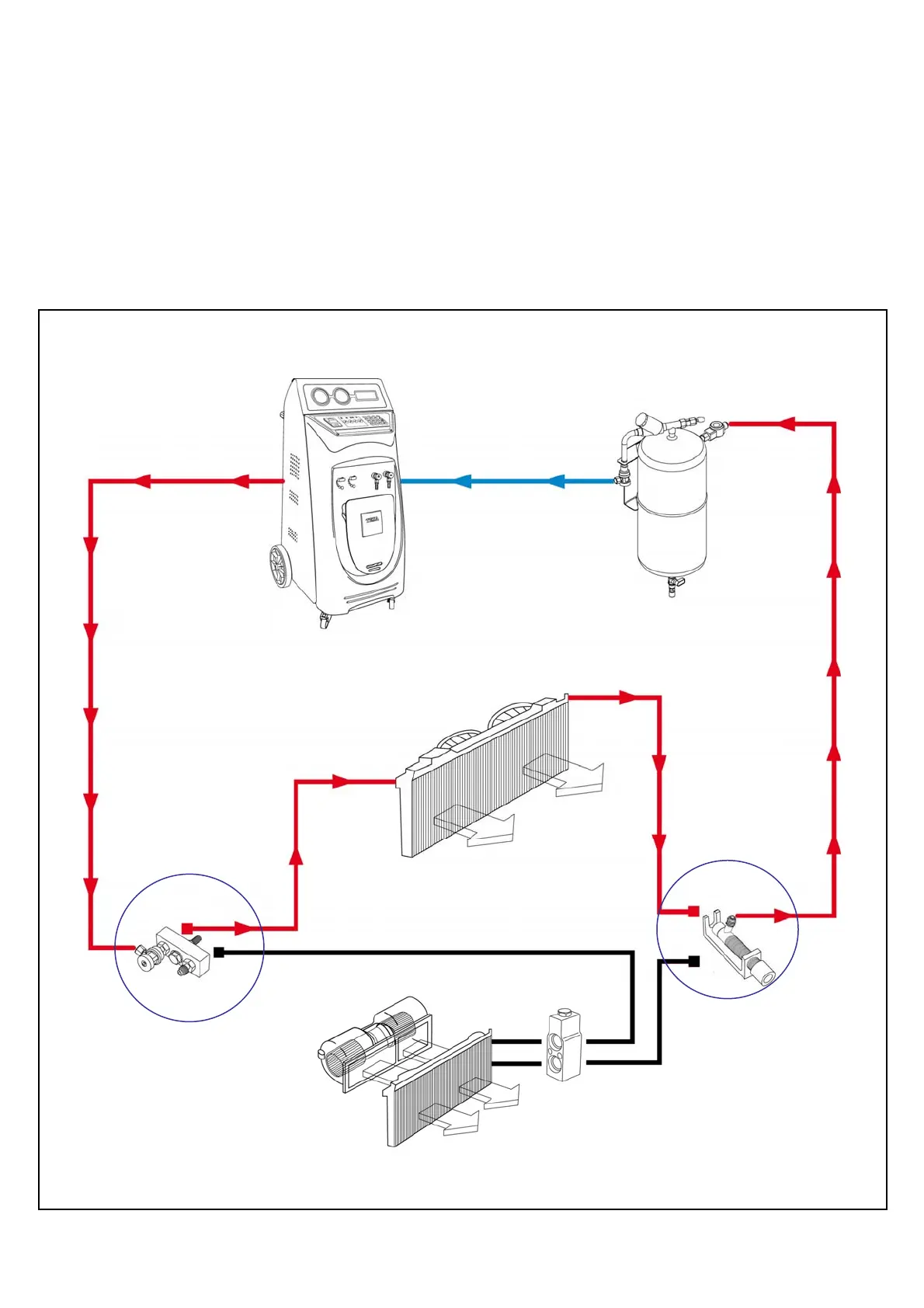

Connect the Konfort unit to system as following :
(1)Konfort red service hose with HP coupler to the compressor location
(2)Canister red service hose 3/8’’ SAE P/N 3900171 to the receiver drier location
Compressor
location
Receiver
drier
location
(2)
(1)
Condenser
Evaporator
