ACKF01_GB_00 TEXA S.p.A. 99/122
6.6.6 Back-flushing the condenser side
In order to perform the final pass of flushing, reverse the connections to the system. In this
situation you will be back-flushing towards the orifice tube location and in the regular flow of
the A/C system.

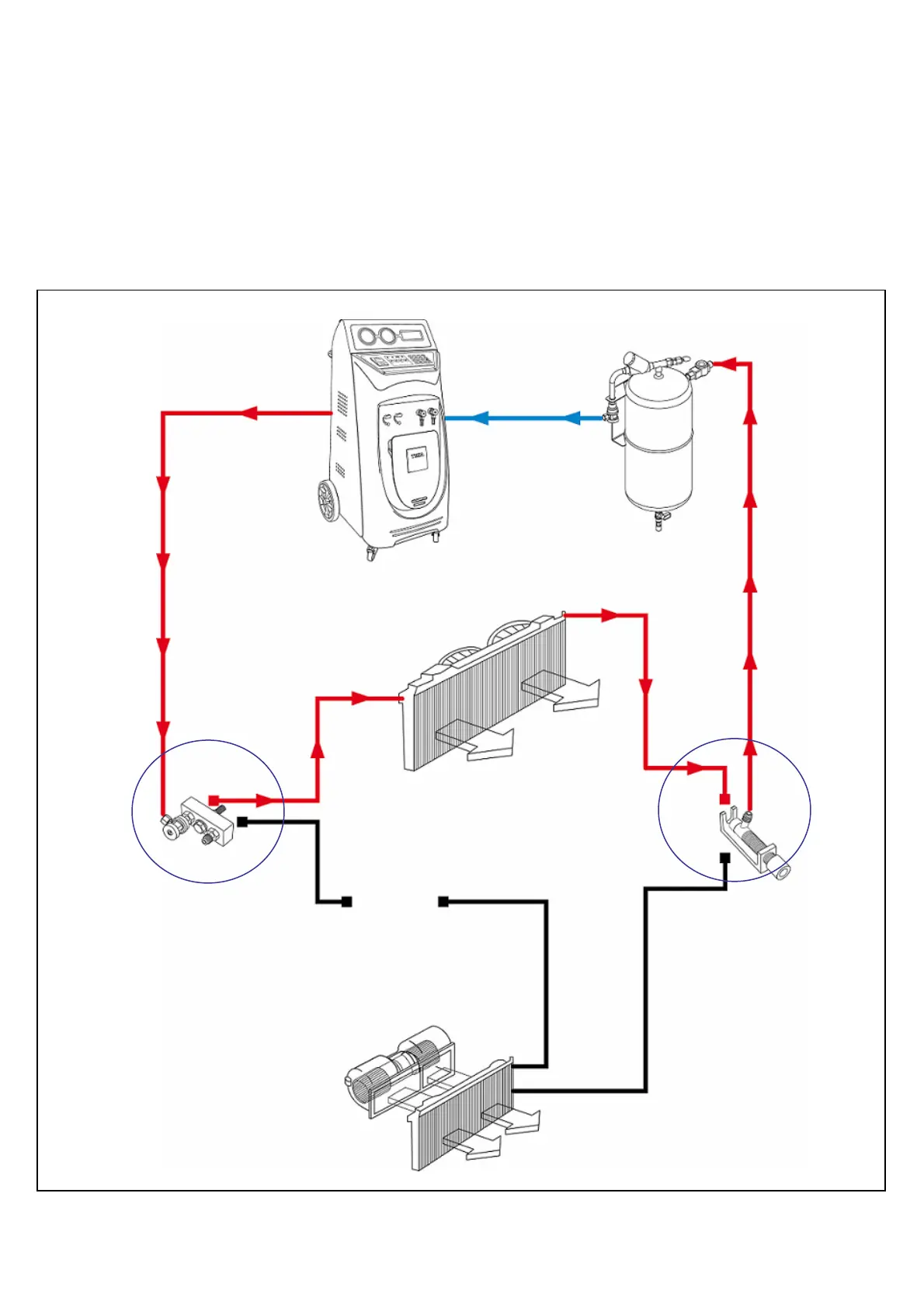

Connect the Konfort unit to system as following:
(1)Konfort red service hose with HP coupler to the compressor location
(2)Canister red service hose 3/8āā SAE P/N 3900171 to the orifice tube location
(1)
(2)
Compressor
location
Orifice tube
location
Condenser
Evaporator
Accumulator
location
