4.8.3 UFS Interface

The Common Processor board has 32GB UFS memory device Mfr. Part# THGAF8G8T23BAIL connected to

UFS0 port of SoC. The UFS memory is Gear3/2Lane capable and supports UFS Version 2.1.

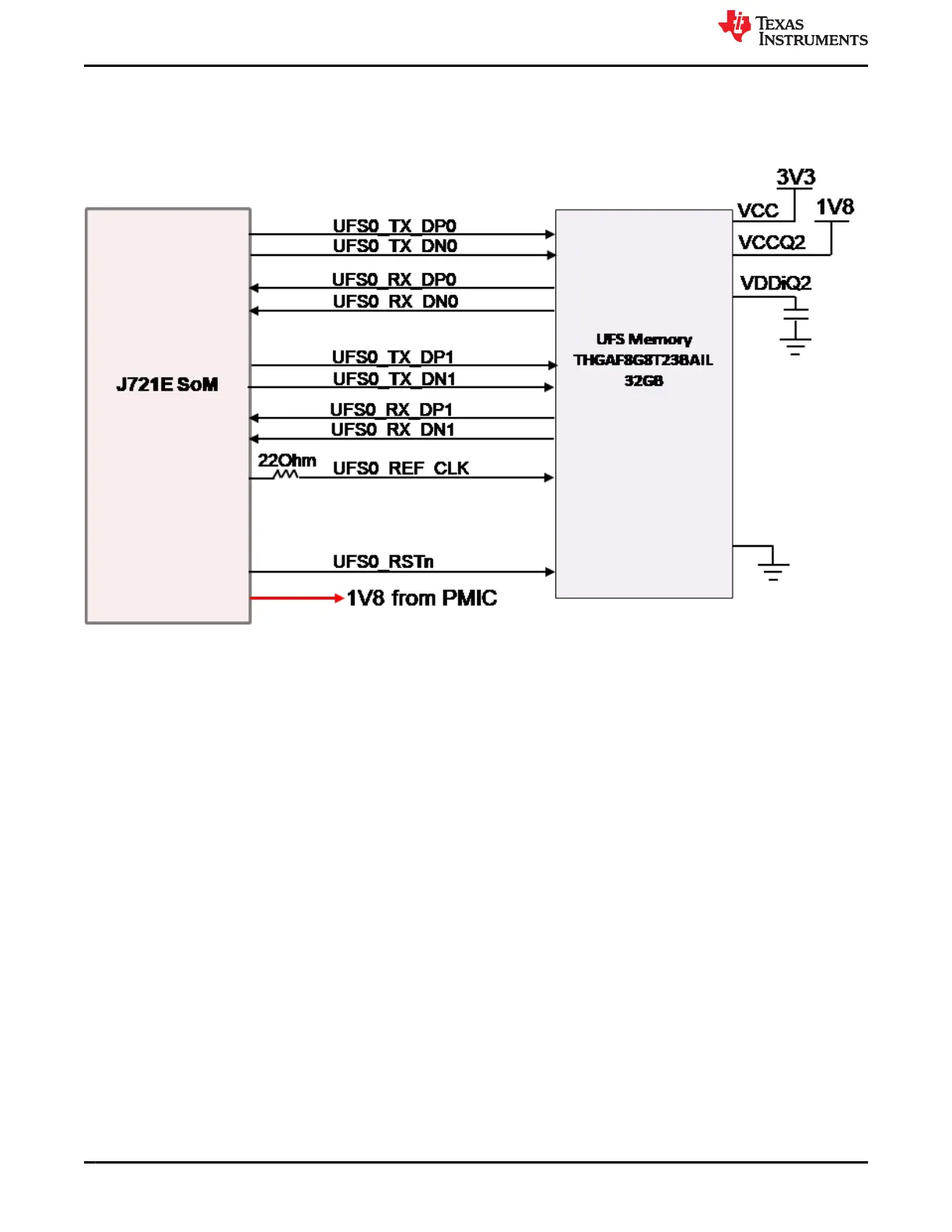

Figure 4-12. UFS Memory Block Diagram

J721E EVM Hardware Architecture www.ti.com

44 Jacinto7 J721E/DRA829/TDA4VM Evaluation Module (EVM) SPRUIS4D – MAY 2020 – REVISED MARCH 2022
