3.3.4 Advanced Configuration Mode
To configure additional fields and registers such as I2C Interrupt Masking, GPIO events, or making custom
changes to Source/Sink PDOs, click on the Advanced Configuration slider at the top of the tool. After clicking on
the slider, a message appears asking for confirmation before enabling Advanced Configuration.
Click here to enable
“Advanced Configuration”
Click here to enter
“Advanced Configuration”

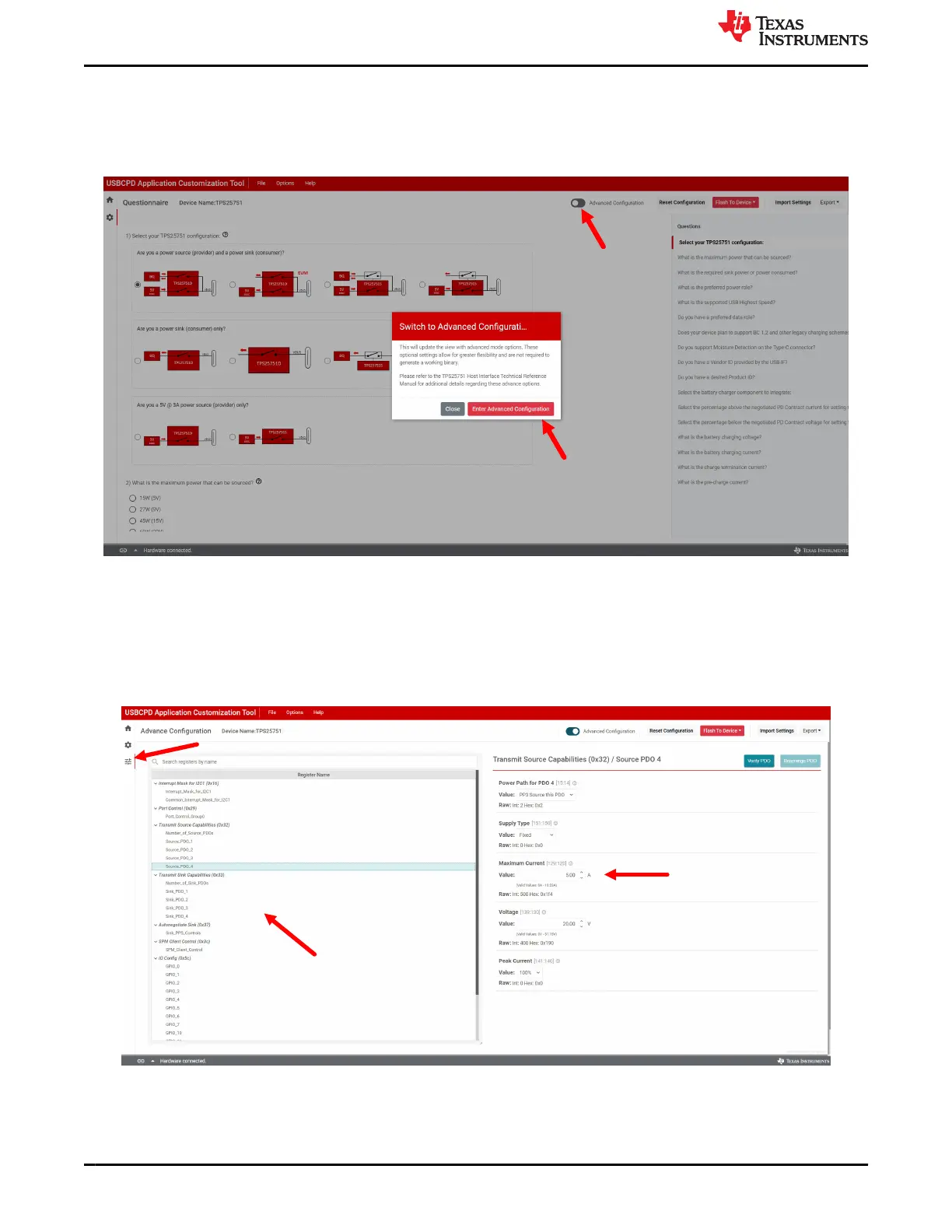

Figure 3-3. Enabling Advanced Configuration
Once Advanced Configuration is enabled, an Advanced Icon appears on the left side underneath the gear
icon to go back to the questionnaire. Within Advanced Configuration, users have the ability to configure most
available registers on the TPS25751. For details on register fields and the description, refer to the TPS25751
Technical Reference Manual. See the example below of configuring the Source_PDO_4 under Transmit Source
Capabilities (0x32).
Click here to enter “Advanced Configuration”
Click on any registers to
expand their fields
To make changes, click on
the field to modify
Figure 3-4. Using Advanced Configuration
