4.2.3 Setting up with BQ25713EVM
To use the TPS25751EVM and BQ25713EVM, the following items are needed:
1. TPS25751EVM
2. Test hook clips jumper wires
3. TPS25751EVM User Guide and Application Customization Tool
4. BQ25713EVM
5. BQ25713EVM user's guide and data sheet
6. BQStudio with EV2400 [optional]
7. DC Power Supply or Battery Simulator
4.2.3.1 Hardware Setup with BQ25713EVM
To setup the hardware, follow the instructions below.
1. Set the J1 jumper of TPS25751EVM to select VBAT for power. Refer to Section 4.2 for details.
2. Use the test hook clips/jumper wires to connect the two EVMs as shown below. See Figure 4-5 for details.
3. Refer to BQ25713EVM user's guide for setting the proper jumper for battery charging application. Incorrect
jumper settings or insufficient power can result in a faulty evaluation.
4.

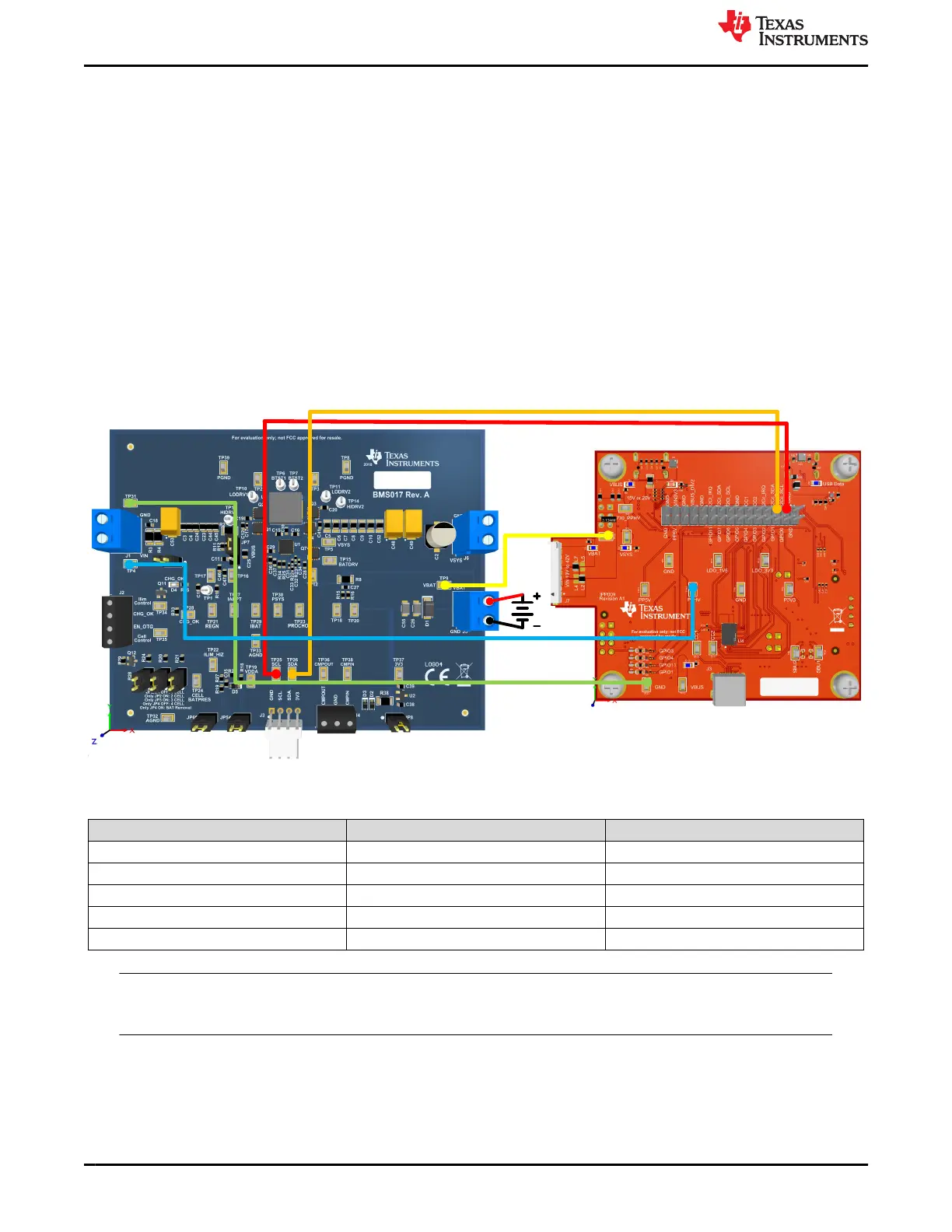

Figure 4-5. TPS25751EVM and BQ25713EVM Hardware Setup
Table 4-2. TPS25751EVM and BQ25713EVM Connections
Color Designator TPS25751EVM Location BQ25713EVM Locator
Red I2Cc_SCL TP25 - SCL
Orange I2Cc_SDA TP26 - SDA
Yellow TP4 - VBAT TP9 - BAT
Blue TP14 - PPHV J1 - VIN (TP4)
Green GND J1 - PGND (TP31)
Note
VBAT, PPHV, and GND pins on TPS25751EVM draws significant current, so make sure the cables
used to connect the EVMs are able to support high current (max 5A).
