3.3.6.3 Generating the Binary
To generate a binary of the current tool settings including the current configuration of the device as indicated by
the form, click on the Export drop-down button on the top-right side of the tool and click on Generate low region
binary or Generate full flash binary.
Note
Low Region Binary includes the firmware base image and AppConfig, this is used for EC patch
loading. Full Flash Binary includes the Low Region and High Region, this is used for EEPROM
configuration loading. For more information, refer to the Technical Reference Manual.
Users have the option to generate a .bin or .C file. Select a file format, enter the file name and click the
Download button to download the binary file.

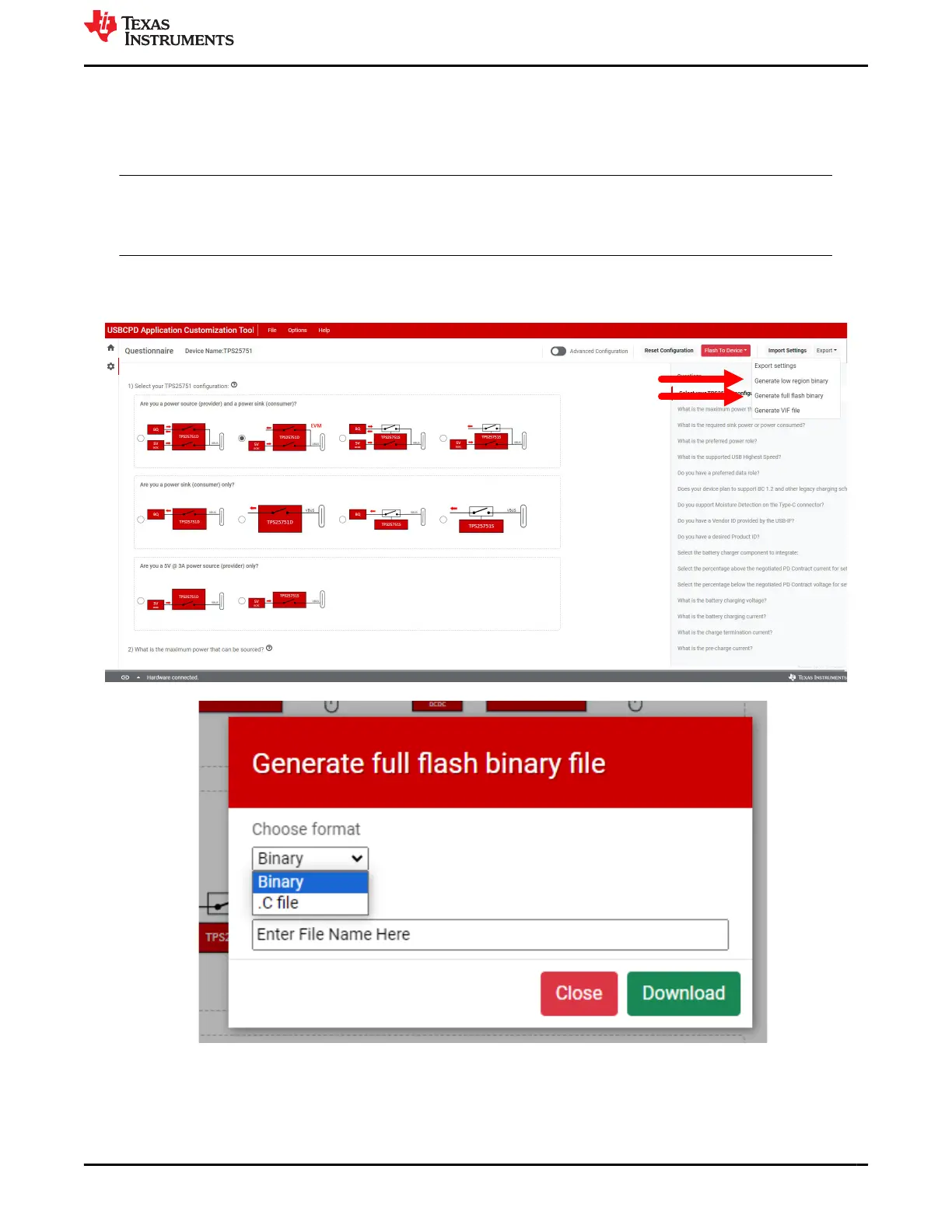

Figure 3-13. Generating Binary Configuration Using the Application Customization Tool
www.ti.com Software
SLVUCP9A – NOVEMBER 2023 – REVISED MARCH 2024
Submit Document Feedback
TPS25751 Evaluation Module 21
Copyright © 2024 Texas Instruments Incorporated
