3.3.2 Selecting a Configuration
The first question of the GUI asks to select a configuration the TPS25751 is used for. The ten configuration
are separated into three main categories: Power Source (provider) and Power Sink (consumer), Power Sink
(consumer) only, and Power Source (consumer) only. When choosing a configuration, check to make sure which
variant is selected. Based on the configuration selected, certain questions are disabled. See the image and table
below for a breakdown of each configuration.

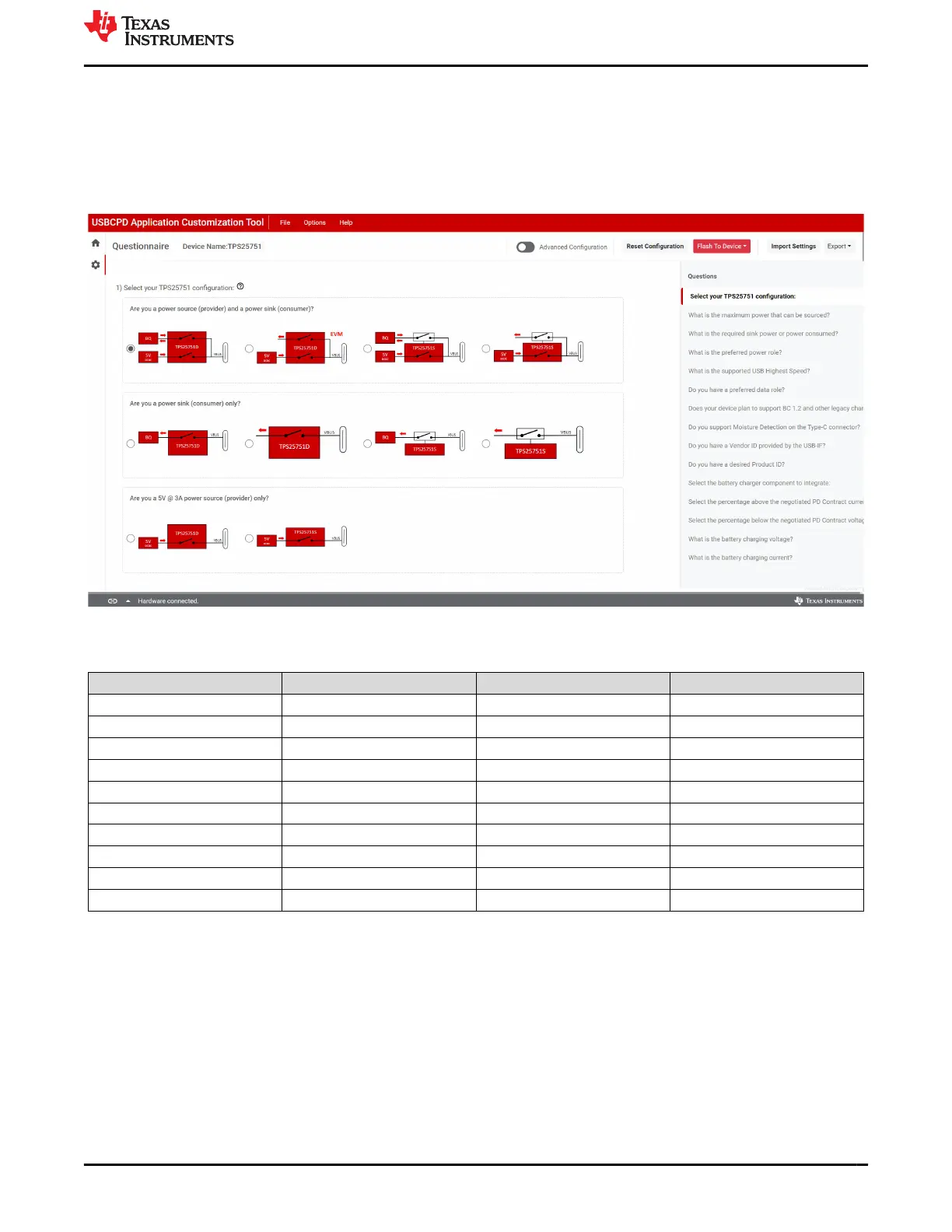

Figure 3-2. Application Customization Tool Configuration
Table 3-1. TPS25751 Configuration
Configuration Index Device Variation Power Role BQ Support
1 D Source and Sink (DRP) Yes
2 D Source and Sink (DRP) No
3 S Source and Sink (DRP) Yes
4 S Source and Sink (DRP) No
5 D Sink Only Yes
6 D Sink Only No
7 S Sink Only Yes
8 S Sink Only No
9 D Source Only No
10 S Source Only No
