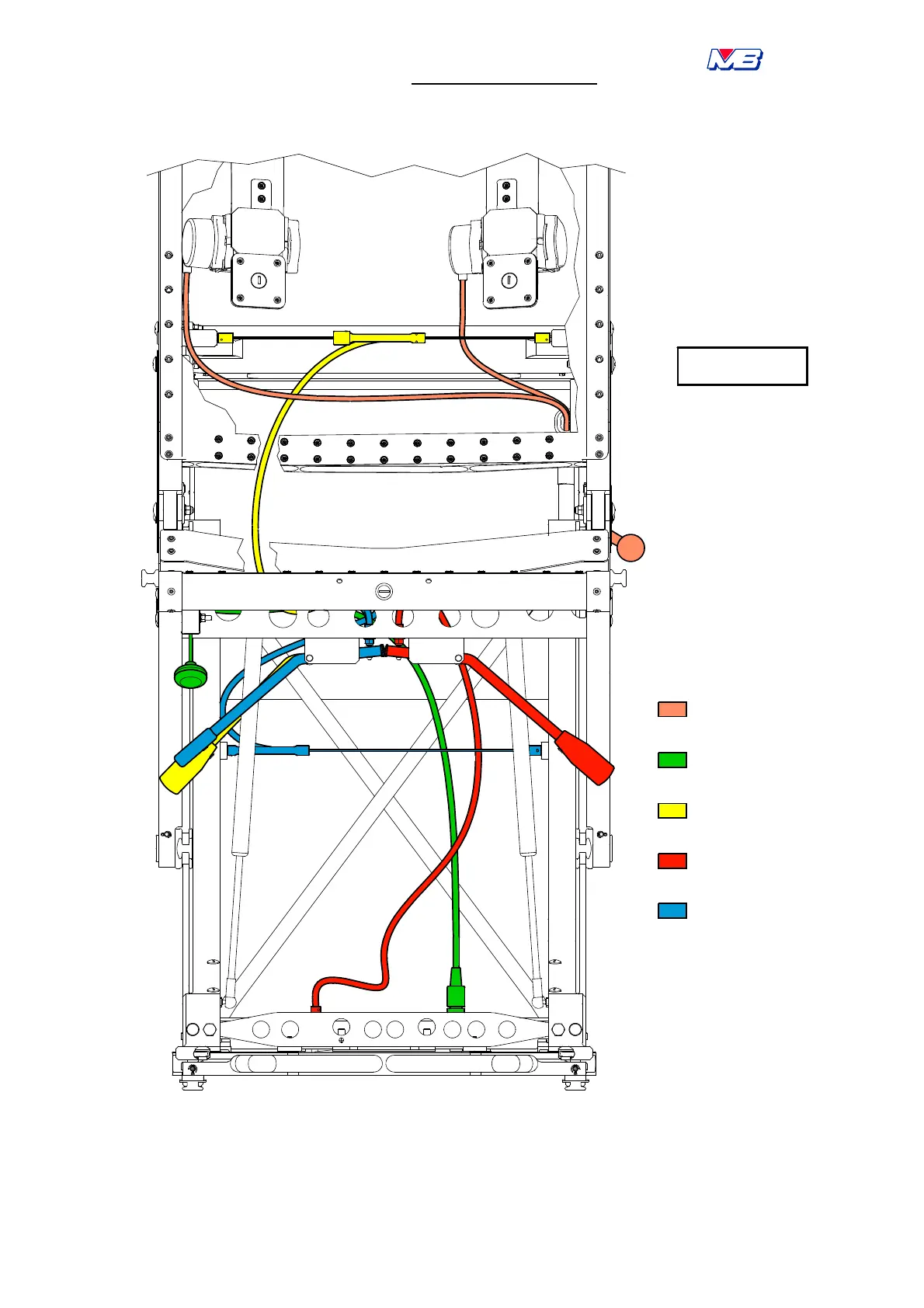

Fig. 1 Cable routing (Sheet 1 of 3)
CABLE ASSY
INERTIA REEL
CABLE ASSY
ROTATE CONTROL
C ABLE ASSY
RECLINE CONTROL
C ABLE ASSY
FORE AFT CONTROL
C ABLE ASSY
HEIGHT CONTROL
MBI21414-01
FRONT VIEW OF
SEAT SHOWN
