Textron Aviation 680A - Page 49

Page 006
25-20-00
MB680
Martin-Baker
MISSION SEAT ETSO
MAINTENANCE MANUAL

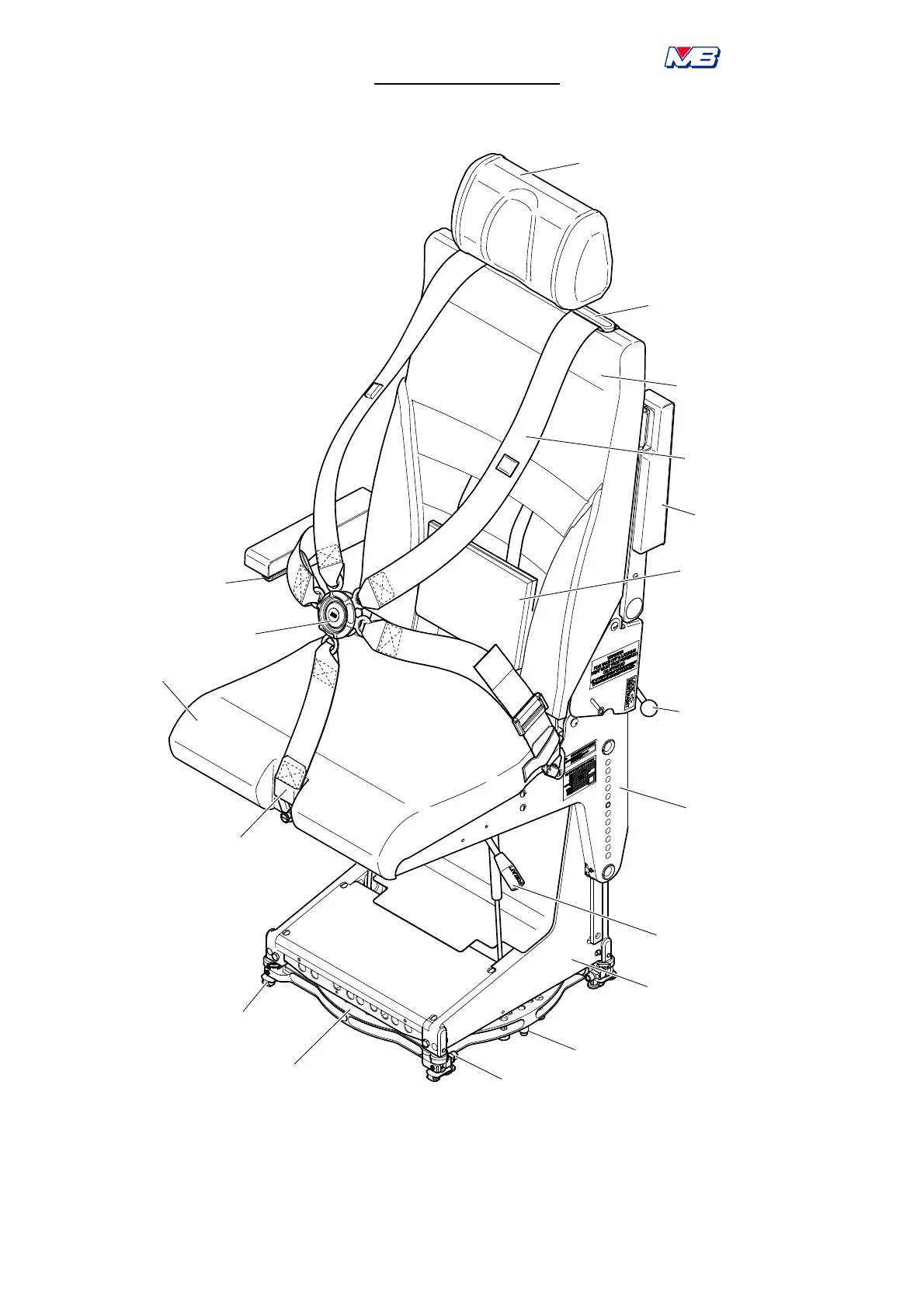

Fig. 1 Mission seat MBCS14550 (Sheet 1)
HEADREST
HARNESS GUIDE
SITTING
CUSHION
ARMREST
ADJUSTMENT
SCREW
LOWER FRAME
TURNTABLE
CORNER
ATTACHMENT
HARNESS
STRAP TABS
QUICK
RELEASE
BOX
LOCKING PIN
BACKREST AND
BACK CUSHION
FIVE-POINT
HARNESS
LUMBAR CUSHION
HARNESS LOCK/
UNLOCK LEVER
BUCKET
ASSEMBLY
FORE/AFT LEVER
ARMREST
LOCKING PLUNGERS
MBI43556-02
ICA-680A-25-80003A
Sep 4/2020
