NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 100 of 129
1.45: POWER SUPPLY
A variant of the CRUZcontrol power supply shall be developed with 2x2 connectivity and be UL Listed
as Class II. Two input power options will be available:
• 115/230 VAC, single-phase
• 480 VAC, two (2)-phase supply
Cables
Application specific cables will be necessary in certain cases. A list of necessary components may be
found below, NOTE that male refers to a male housing on 2x2 connections while female refers to a
female housing: See Part Number Listing Table 19 Accessories w2/2 Connections

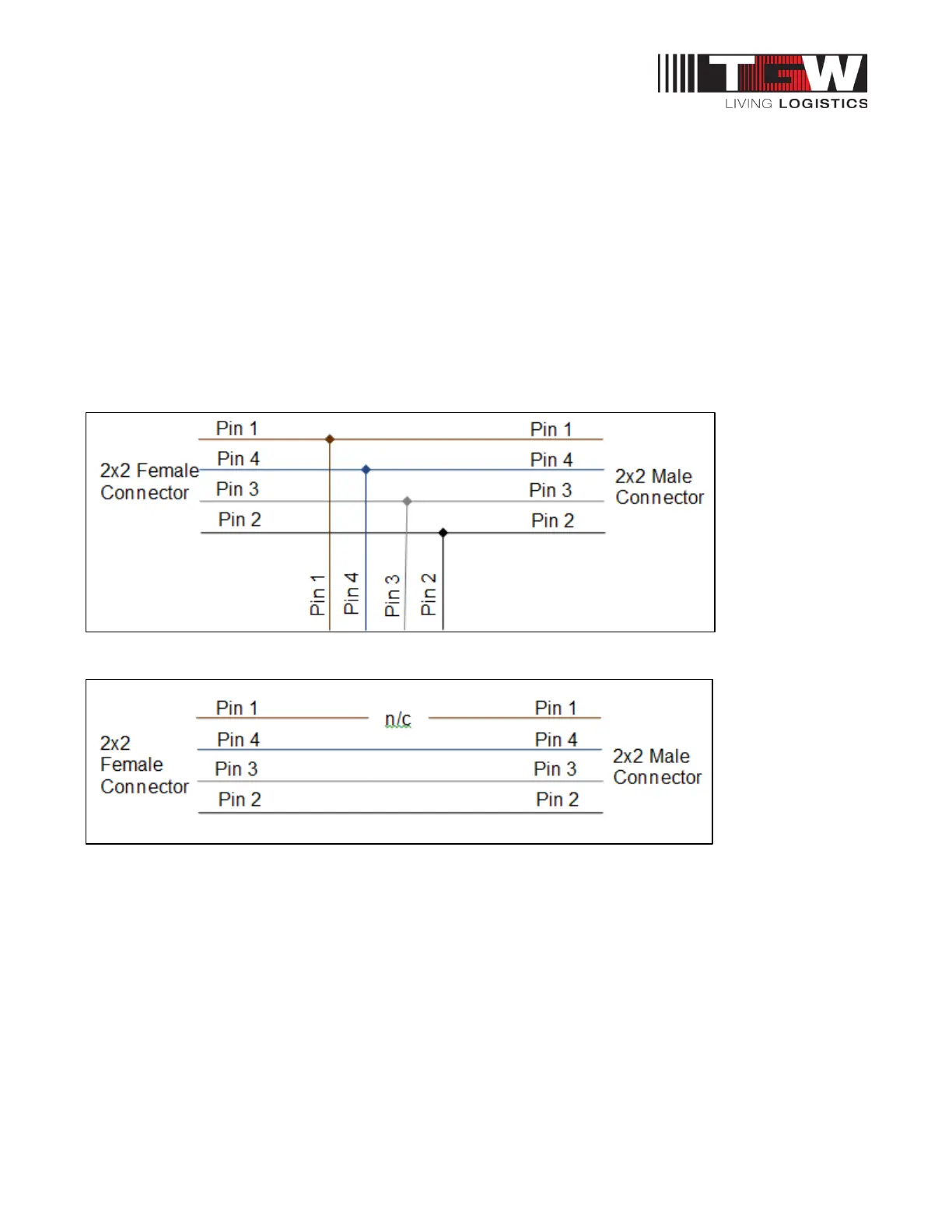

Figure 25: “T”-Cable Wiring
Figure 26: Power Interrupt Wiring
