TGW NBC - Air Take-Up Assemblies and Parts

NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 116 of 129
1.50: NBC AIR TAKE-UP
NBC 500-AT Air Take-Up
Replacement Parts - NBC 500-AT Air Take-Up
DR-ASY,NBC-28BF-500AT-LH
Balloon Description 16 BF 22 BF 28 BF 34 BF
5 CYL,CABLE 2.5"B X 28S MOD 1103837 1103837 1103837 1103837
6 PULLEY,CABLE 1/4"W X 5"OD 1121143 1121143 1121143 1121143
2 BRG, R6 ZZ C3 90050111 90050111 90050111 90050111
13 PULLEY,ASY 6"DIA W/FLANGE E0002214 E0002214 E0002214 E0002214

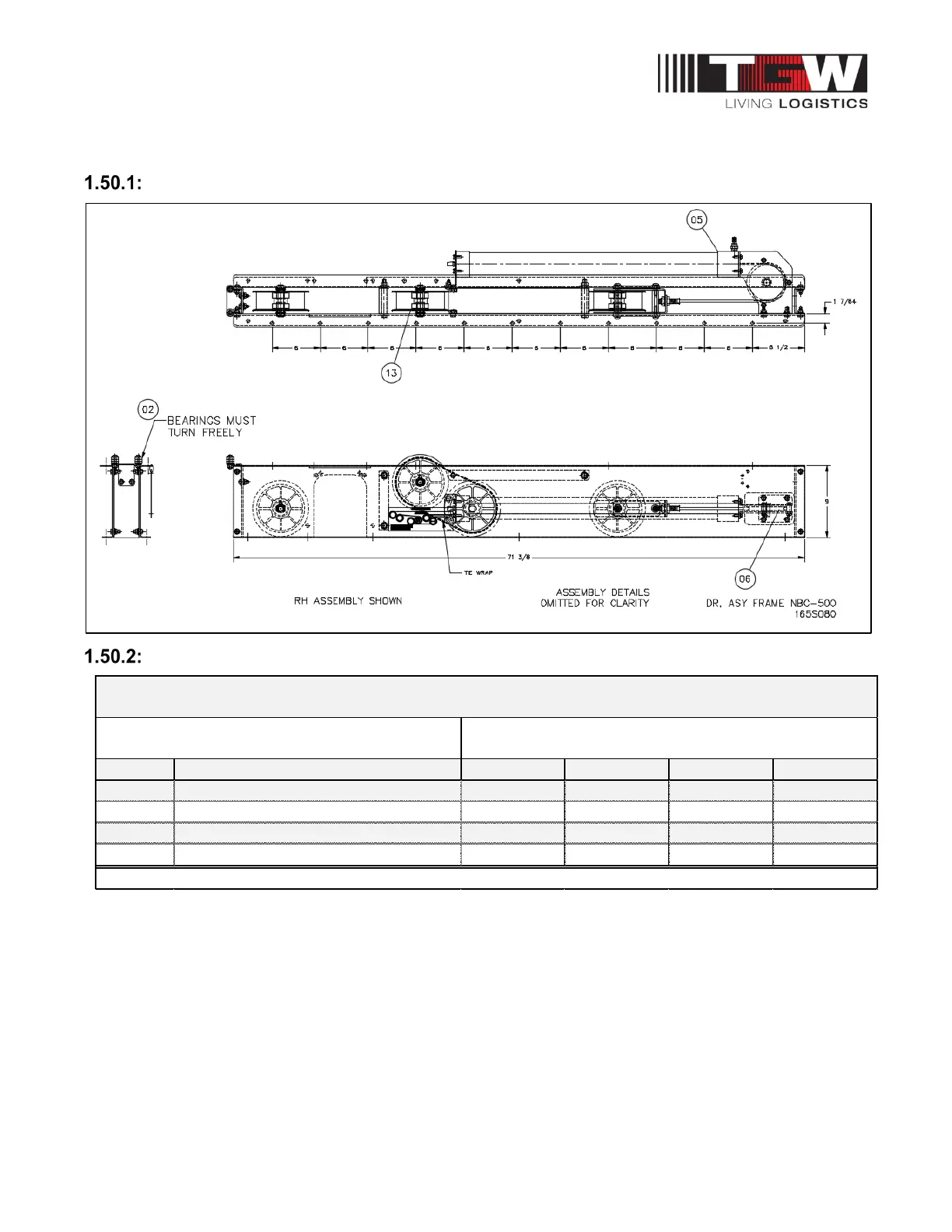

DRIVE ASSEMBLY - NBC 500-AT Air Take-UP
Width & Item #
REF DWG# 165S080
