NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 121 of 129

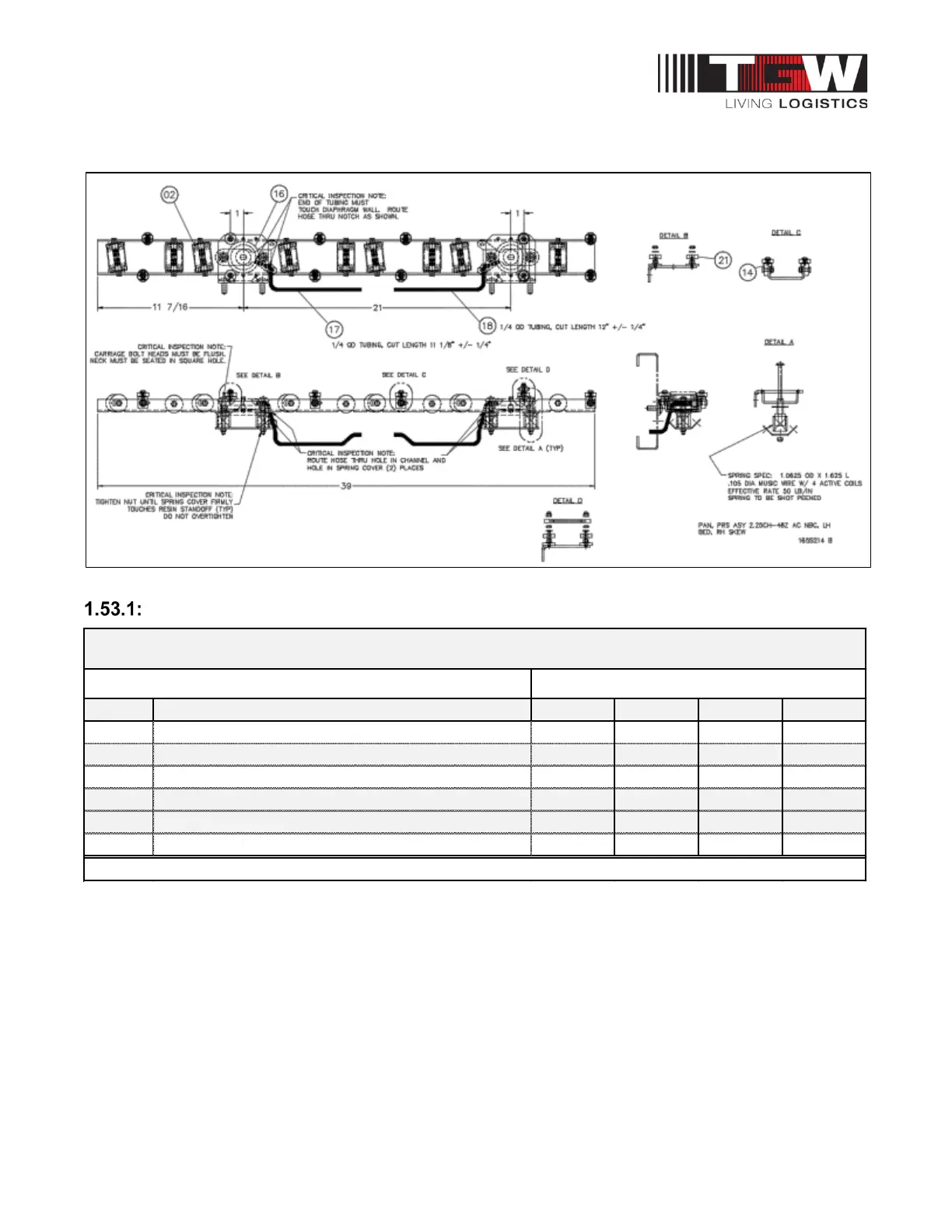

1.53: NBC SKEWED PRESSURE PAN ASSEMBLY
(LH bed, RH skew shown)
Replacement Parts - NBC Skewed Pressure Pan Assembly
PAN,PRS ASY 2.25CH-48Z AC NBC LH BED, RH SKEW
Balloon Description 16 BF 22 BF 28 BF 34 BF
2 ROLLER, PRS NBC W/ AXLE 1118018 1118018 1118018 1118018
14 ASY,BELT GUIDE BRKT NBC SKEW PAN 1132973 1132973 1132973 1132973
16
DIAPHRAGM,ASY PNEUMATIC 1 AIR
60710000 60710000
60710000 60710000
17
TUBING,URETHANE .250OD,.159ID 89000580 89000580 89000580 89000580
18
TUBING,URETHANE .250OD,.159ID 89000580 89000580 89000580 89000580
21 BEARING, R6ZZ 90050111 90050111 90050111 90050111
REPLACEMENT PARTS - NBC SKEWED PRESSURE PAN ASSEMBLY
Width & Item #
REF DWG# 165S214B
