CRUZcontrol Logic Assembly
The CRUZcontrol Logic Assembly consists of a polarized retro-reflective type photoelectric sensor,
pneumatic valve and logic module integrated into one assembly.
The photoelectric sensor will function reliably on conveyor widths up to 34" between frames. The
sensor is polarized, and is not affected by shiny surfaces. On NBC applications, the reflector is
mounted with a 6 inch offset from the photoelectric sensor, so that the sensor scans across the
conveyor on a slight angle.
The sensor bracket as provided allows for easy adjustment of the sensor. An amber LED output
indicator on the back of the sensor aids in the adjustment of the sensor. The LED is off if the sensor is
not aligned, flashes if functional but marginally aligned, and is on steady if properly aligned. A green
LED indicates power on status.

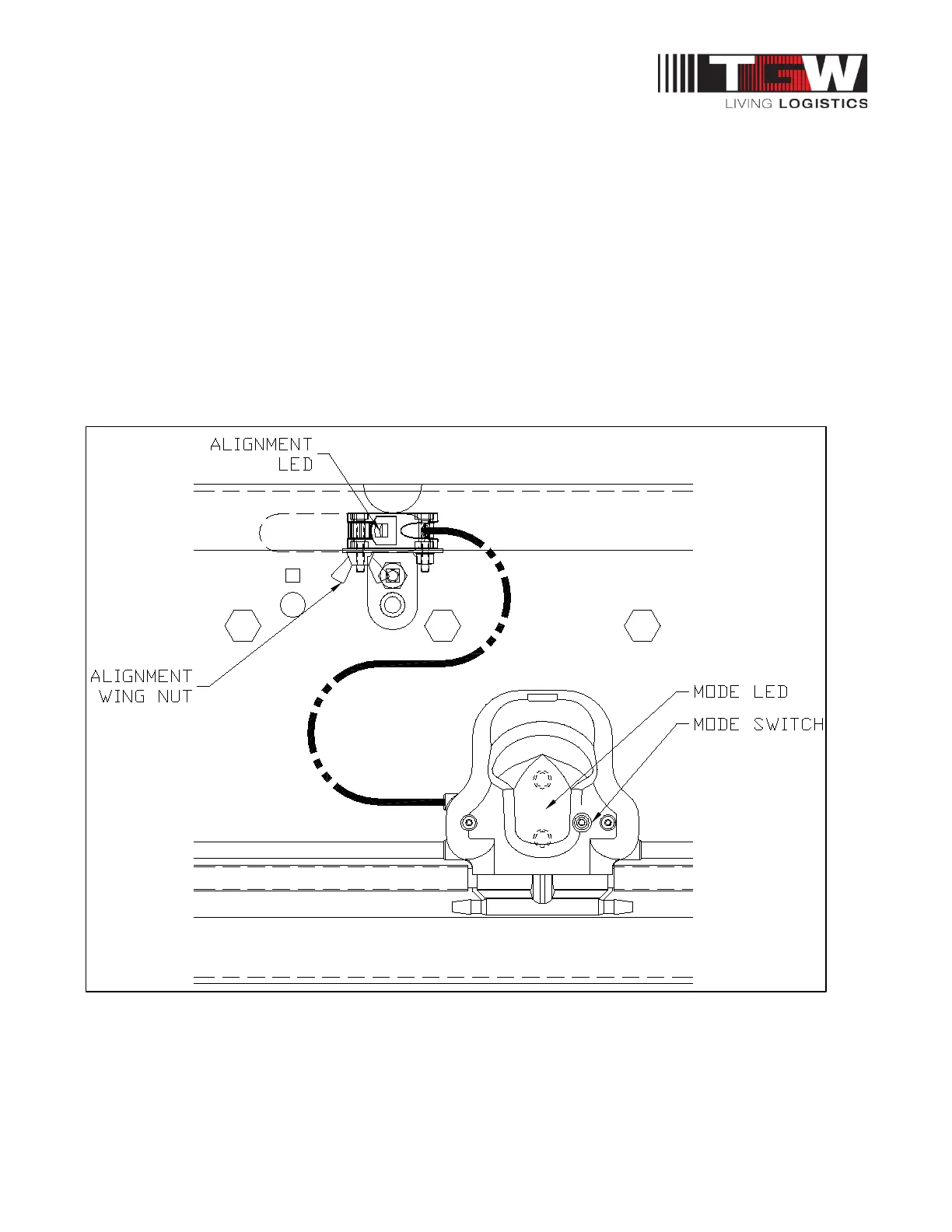

Figure 2: Logic Assembly Mode & Alignment
