NBC SKEWING NBC ROLLERS
Skewing rollers is required on NBC if you are using contact accumulation and if the between frame
(BF) dimension of your conveyor is double the width of the smallest product. The normal method of
skewing is to install a factory skew bed at the charge end of your conveyor. If your conveyor line is
over 100' long and you have small product on it, you may want to add a maintenance skew bed
midway down the conveyor to preserve the product alignment.

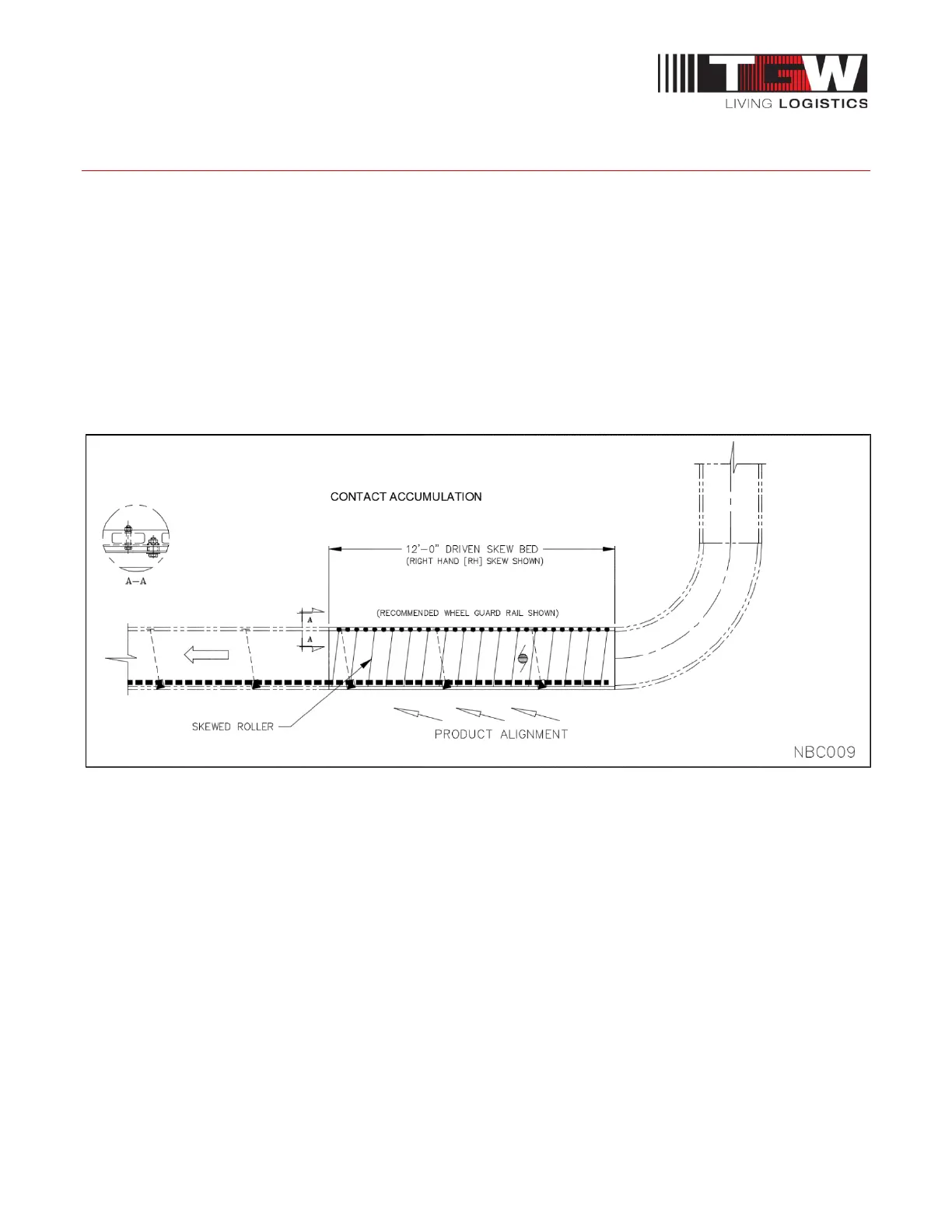

1.20: FACTORY SKEW CHARGE SECTION
A standard 12' charge end skew bed is available with factory skewed rollers at 7 degrees. This bed is
available in left or right hand. The wheel guard rail is included. This skewed bed will move products
across the conveyor about 16" over the 12' length. This side movement is dependent on the bottom
condition of the product.
