NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 45 of 129

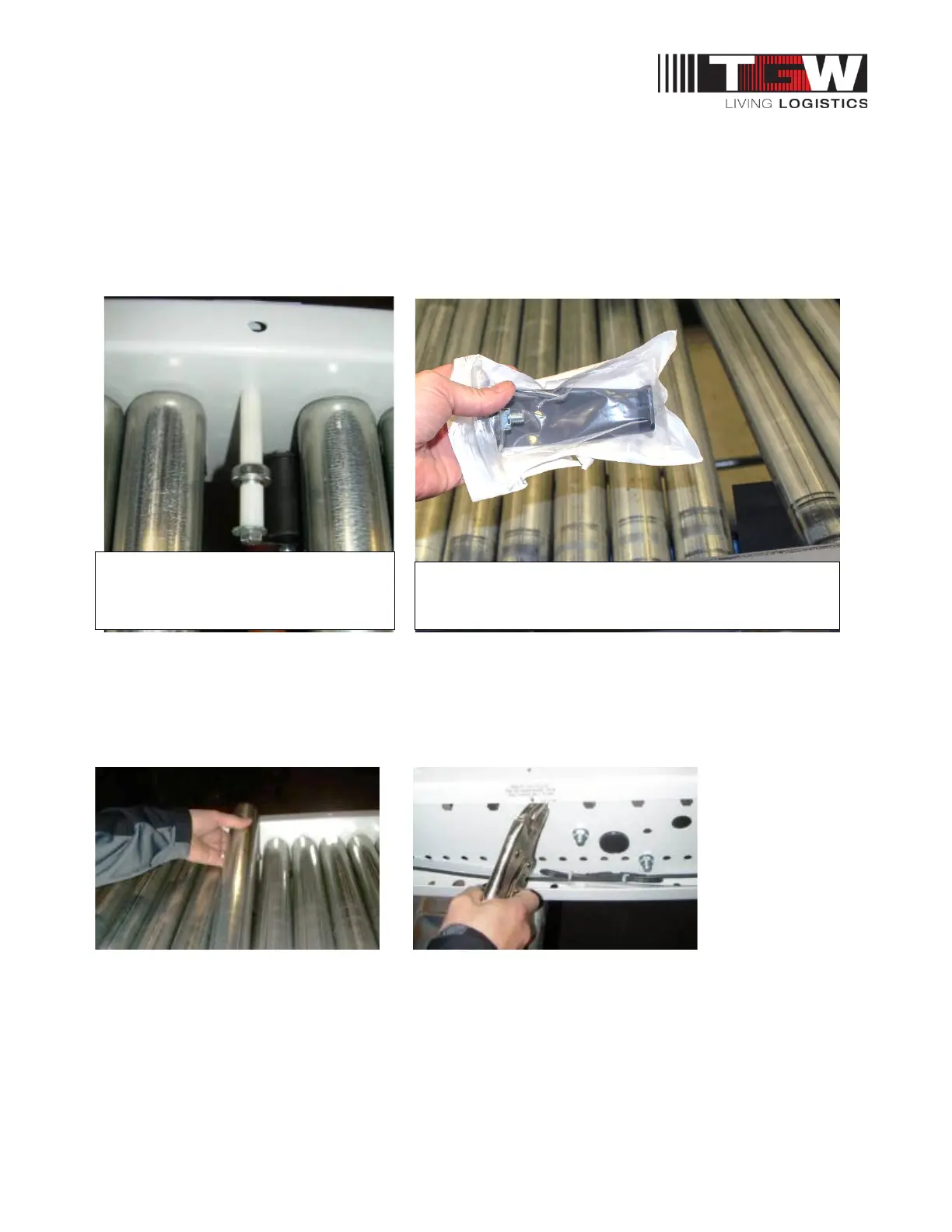

1.22: INSTALLATION STEPS FOR FIELD INSTALLED SKEWED MAINTENANCE
PRESSURE ASSEMBLIES
NOTE:
The required parts and instructions to add a maintenance skew zone are included in zippered bag
attached to the conveyor side channel and located on the inside face of the channel on the opposite
side of the belt.
1.23: ROLLER CENTERS 2”
Step 1
Select the conveyor section in which the rollers are to be skewed. Determine the direction of skew
desired and remove one roller from discharge end of the center zone.
NOTE:
The bed 4’ center zone is the only zone that can be skewed on a 12’ intermediate bed.
Old Style Finger Guards
New Style Finger Guard
To Next Page
