TGW NBC - Pressure and Brake Assemblies

NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 120 of 129
1.52: NBC PRESSURE ASSEMBLY
Replacement Parts - NBC Pressure Pans Assembly
PAN,PRS ASY 3IN-48Z AC NBC
Balloon Description 16 BF 22 BF 28 BF 34 BF
2 ROLLER,PRESSURE NBC 1109203 1109203 1109203 1109203
14 CLIP,BELT COVER,MIDDLE NBC 1113596 1113596 1113596 1113596
15 CLIP,BELT COVER,END NBC 1113597 1113597 1113597 1113597
16 DIAPHRAGM,ASY PNEUMATIC 1 AIR 60710000 60710000 60710000 60710000
17 & 18 TUBING,1/4" PLYU-90DUR X 13" 89000580 89000580 89000580 89000580
Width & Item #
REPLACEMENT PARTS - NBC PRESSURE PAN ASSEMBLY

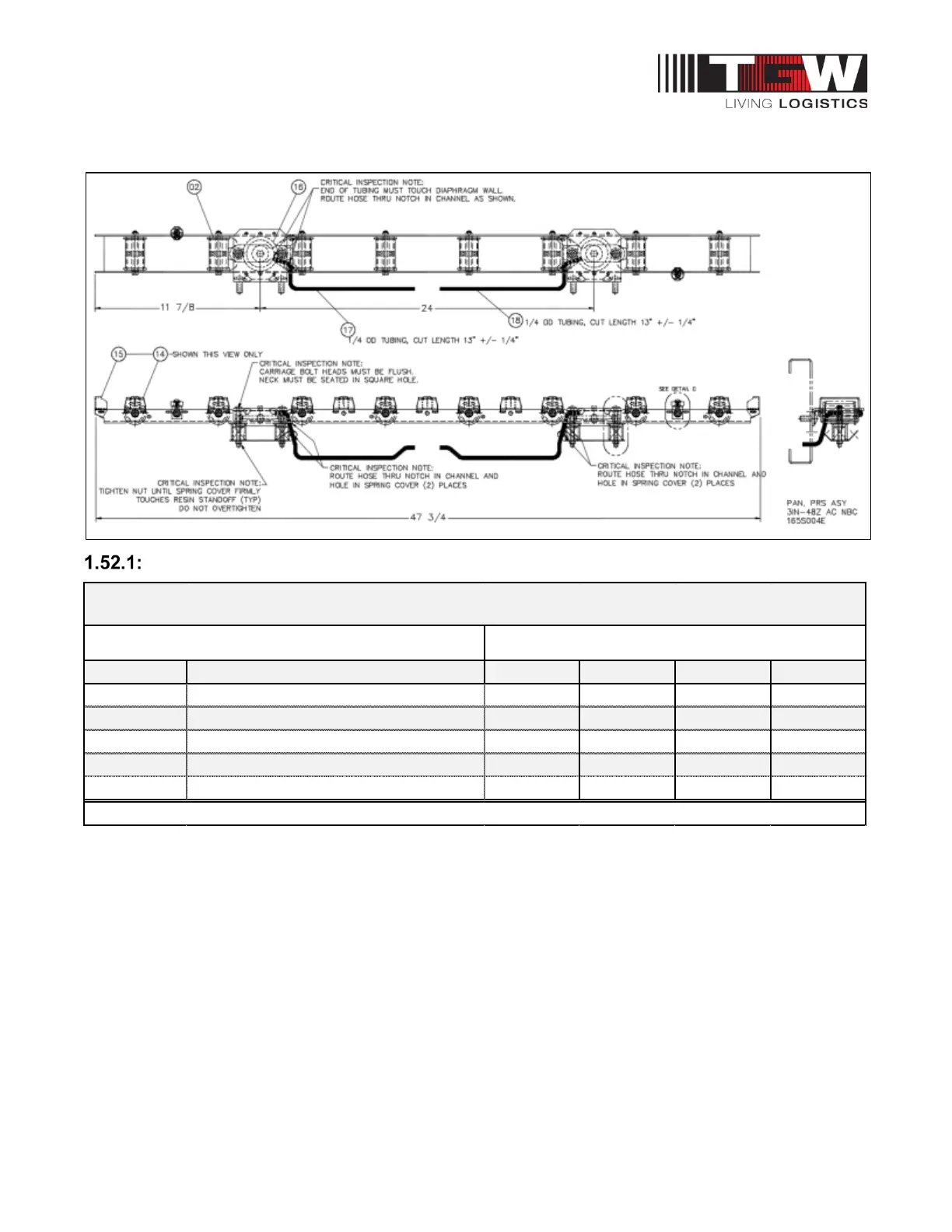

REF DWG# 165S004E
