NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 119 of 129

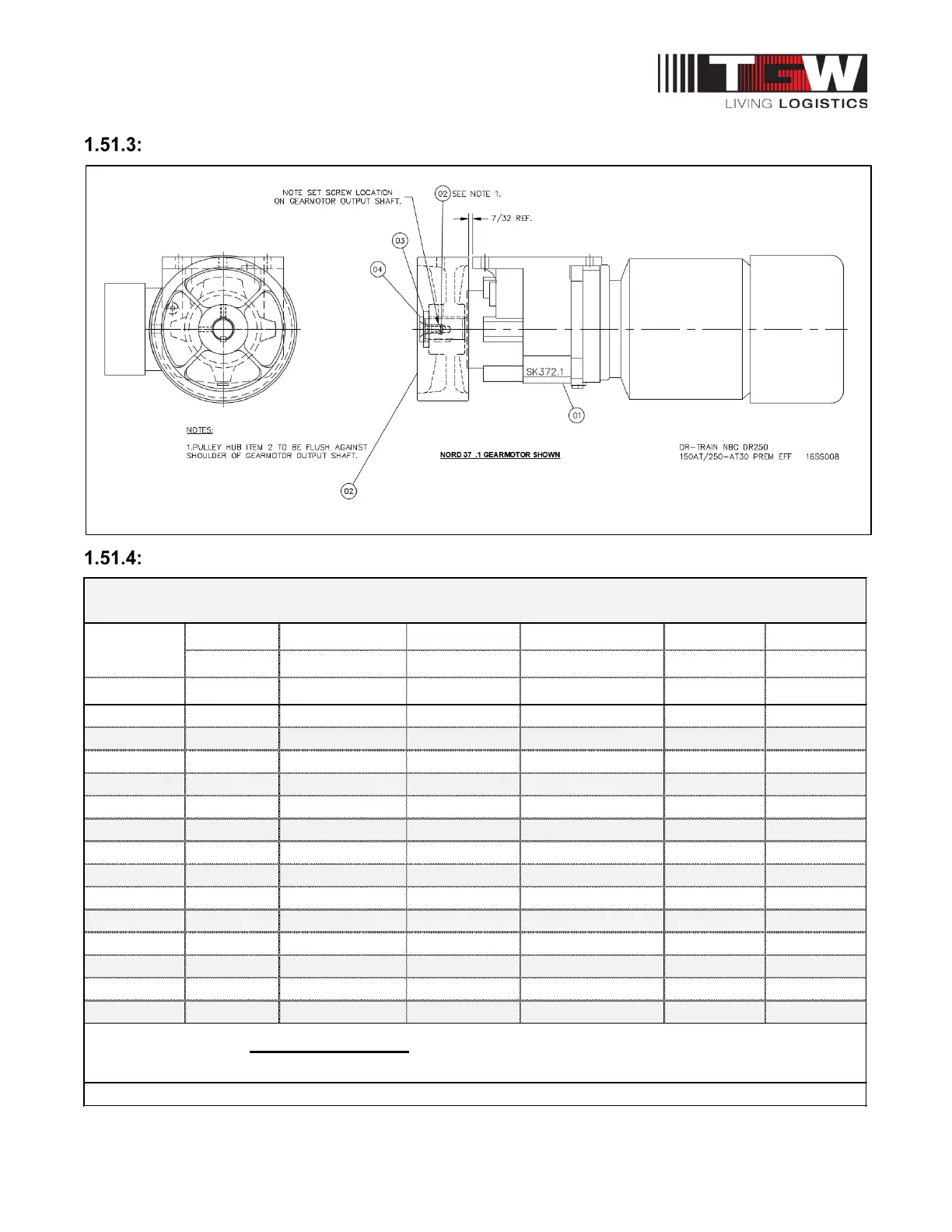

NBC 250-AT30 Drive Trains
Replacement Parts - NBC 250-AT30 Drive Trains
DR-TRAIN GEARMOTOR MOTOR REDUCER SIZE PULLEY BORE
P/N P/N HP IN INCHES
ITEM 01 ITEM 01 ITEM 01 ITEM 02 ITEM 02
105 1187059 1187060 1 SK372.1/80LP 1120871 1"
125 1117772 1117788 1 SK372.1/80LP 1120871 1"
140 1117773 1117789 3/4 SK372.1/80S 1120871 1"
140 1117774 1117790 1 SK372.1/80LP 1120871 1"
155 1117775 1117791 3/4 SK372.1/80S 1120871 1"
155 1117776 1117792 1 SK372.1/80LP 1120871 1"
155 1117777 1117793 1 1/2 SK372.1/90SP 1120871 1"
175 1117778 1117794 1 SK372.1/80LP 1120871 1"
175 1117779 1117795 1 1/2 SK372.1/90SP 1120871 1"
220 1117780 1117796 1 SK372.1/80LP 1120871 1"
220 1117781 1117797 1 1/2 SK372.1/90SP 1120871 1"
220 1215000 1214993 2 SK372.1/90LP 1120871 1"
250 1117782 1117798 1 1/2 SK372.1/90SP 1120871 1"
250 1117783 1117799 2 SK372.1/90LP 1120871 1"
NBC 250-AT30 DRIVE TRAINS
NOTE: TOTAL BELT PULL
FOR NBC UNIT NOT TO EXCEED 250LBS.
1-HP, 1-1/2-HP, AND 2-HP @ PE.
Ref DWG # 165S008
NOMINAL
FPM
