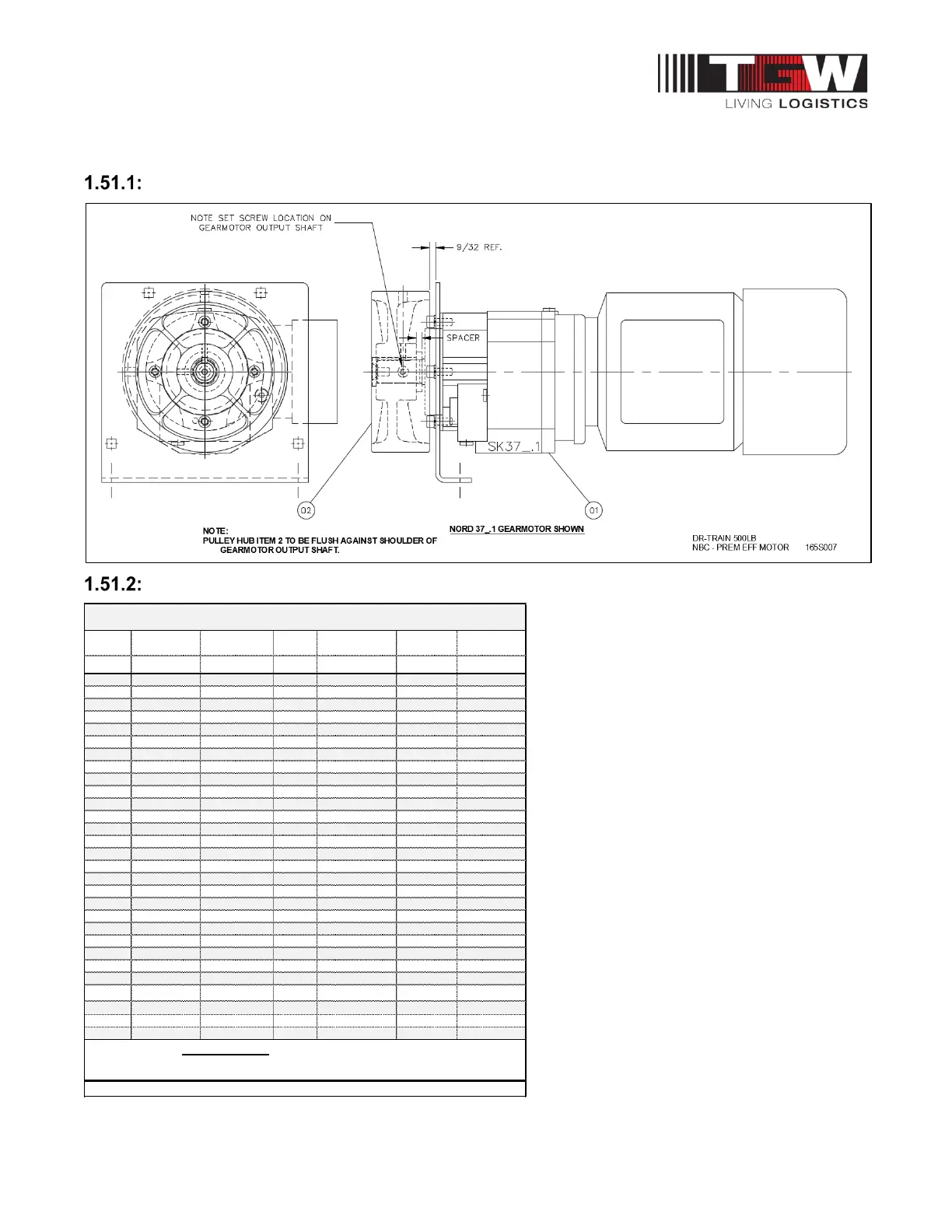

1.51: NBC DRIVE TRAIN
NBC 500-AT Drive Trains
Replacement Parts - NBC 500 Drive Trains
NOMINA
L
DRIVE TRAIN
P/N
GEARMOTOR
P/N
MOTOR REDUCER SIZE PULLEY
BORE IN
INCHES
FPM ITEM 01 ITEM 01 HP ITEM 01 ITEM 02 ITEM 02
70 1117667 1117633 1 SK572.1/80LP 1115931 1-1/4"
70 1117667 1117633 1 SK572.1/80LP 1191846 1-1/4"
85 1187048 1187049 1 SK573.1/80LP 1191846 1-1/4"
90 1117669 1129796 1 SK572.1/80LP 1191846 1-1/4"
90 1117670 1117636 1 1/2 SK572.1/90SP 1191846 1-1/4"
105 1117672 1117638 1 SK572.1/80LP 1191846 1-1/4"
110 1117673 1117639 1 1/2 SK572.1/90SP 1191846 1-1/4"
125 1117674 1117640 1 SK372.1/80LP 1120871 1"
130 1117675 1129797 1 1/2 SK572.1/90SP 1191846 1-1/4"
130 1117676 1117642 2 SK572.1/90LP 1191846 1-1/4"
140 1117677 1117643 1 SK372.1/80LP 1120871 1"
140 1117678 1117644 1 1/2 SK372.1/90SP 1120871 1"
145 1117679 1117645 2 SK572.1/90LP 1191846 1-1/4"
150 1214996 1214989 2 SK573.1/90LP 1191846 1-1/4"
150 1117682 1117648 3 SK573.1/100LP 1191846 1-1/4"
155 1117680 1117646 1 1/2 SK372.1/90SP 1120871 1"
165 1117681 1117647 2 SK572.1/90LP 1191846 1-1/4"
165 1117685 1117651 3 SK573.1/100LP 1191846 1-1/4"
175 1117683 1117649 1 1/2 SK372.1/90SP 1120871 1
185 1117684 1129798 2 SK573.1/90LP 1191846 1-1/4"
185 1214997 1214991 3 SK573.1/100LP 1191846 1-1/4"
210 1117688 1114134 3 SK572.1/100LP 1191846 1-1/4"
220 1117686 1117652 1 1/2 SK372.1/90SP 1120871 1"
220 1117687 1117653 2 SK372.1/90LP 1120871 1"
235 1214998 1214990 2 SK572.1/90LP 1191846 1-1/4"
235 1117691 1117656 3 SK572.1/100LP 1191846 1-1/4"
250 1117689 1117654 1 1/2 SK372.1/90SP 1120871 1"
250 1117690 1117655 2 SK372.1/90LP 1120871 1"
250 1214999 1214992 3 SK572.1/100LP 1191846 1-1/4"
NBC 500# DRIVE TRAINS
NOTE: TOTAL BELT PULL FOR NBC UNIT NOT TO EXCEED 500LBS.
1-HP, 1-1/2-HP, 2-HP, AND 3-HP @ PE.
Ref DWG# 165S007
