TGW NBC - Drive Assemblies and Parts

NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 114 of 129

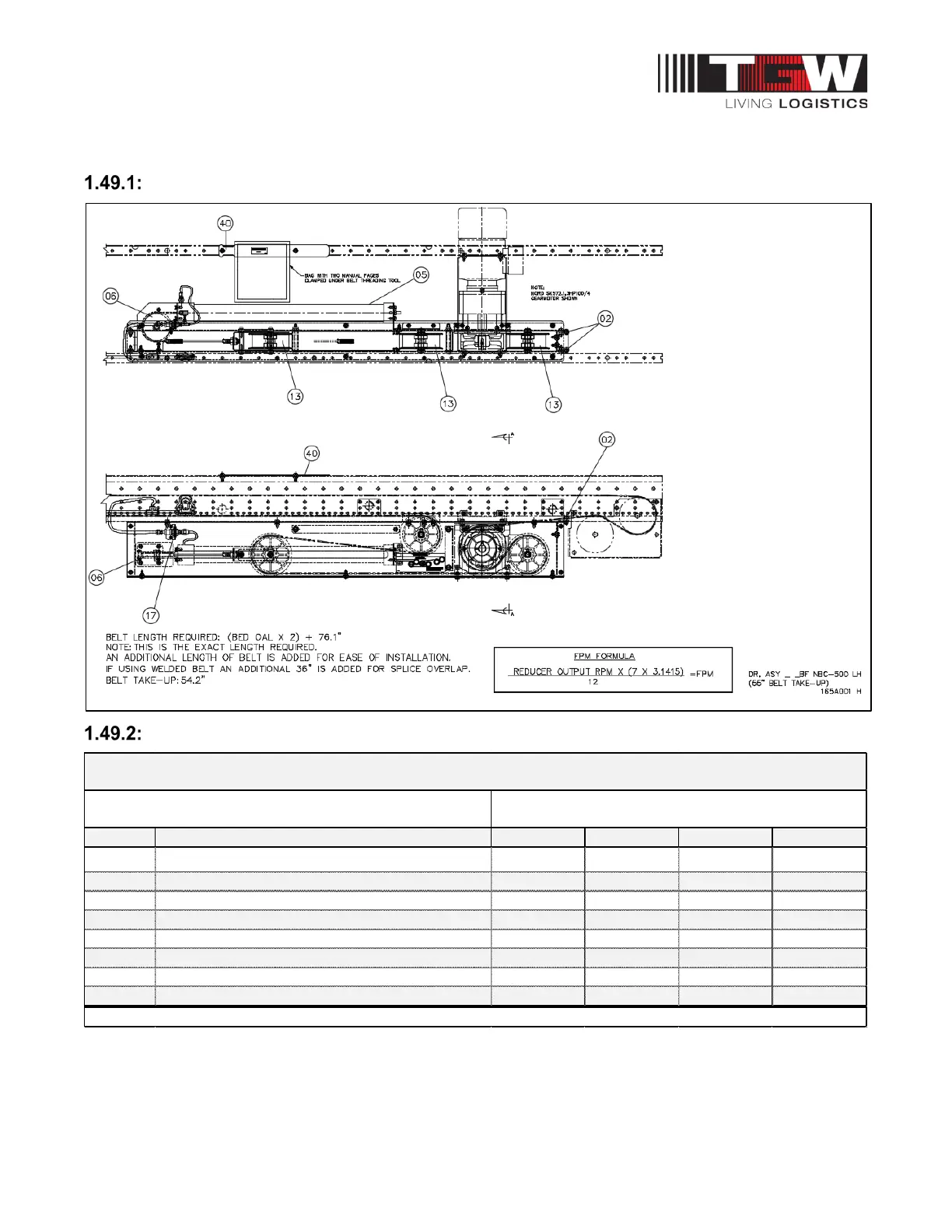

1.49: NBC DRIVE ASSEMBLY
NBC 500-AT Drive Assembly
Replacement Parts - NBC 500-AT Drive Assembly
DR-ASY,NBC-28BF-500AT-LH
Balloon Description 16 BF 22 BF 28 BF 34 BF
-- GEARMOTOR SEE CHART SEE CHART SEE CHART SEE CHART
-- DRIVE PULLEY SEE CHART SEE CHART SEE CHART SEE CHART
06 PULLEY,CABLE 1/4" WIDE X 5" OD 1121143 1121143 1121143 1121143
02 BEARING, R6ZZ C3 90050111 90050111 90050111 90050111
05 CYLINDER, 2.5" BORE X 28" STK W/ CABLE 1103837 1103837 1103837 1103837
13 PULLEY, ASY 6" W/FLANGE E0002214 E0002214 E0002214 E0002214
17 ASY,AIR VALVE NBC 3/8" IN - 1/4" OUT 1117620 1117620 1117620 1117620
40 TOOL,NBC BELT THREADING & INSTRUCTIONS 1119143 1119143 1119143 1119143
REPLACEMENT PARTS - NBC 500 LB AT DRIVE
REF DWG# 165A001H
Width & Item #
