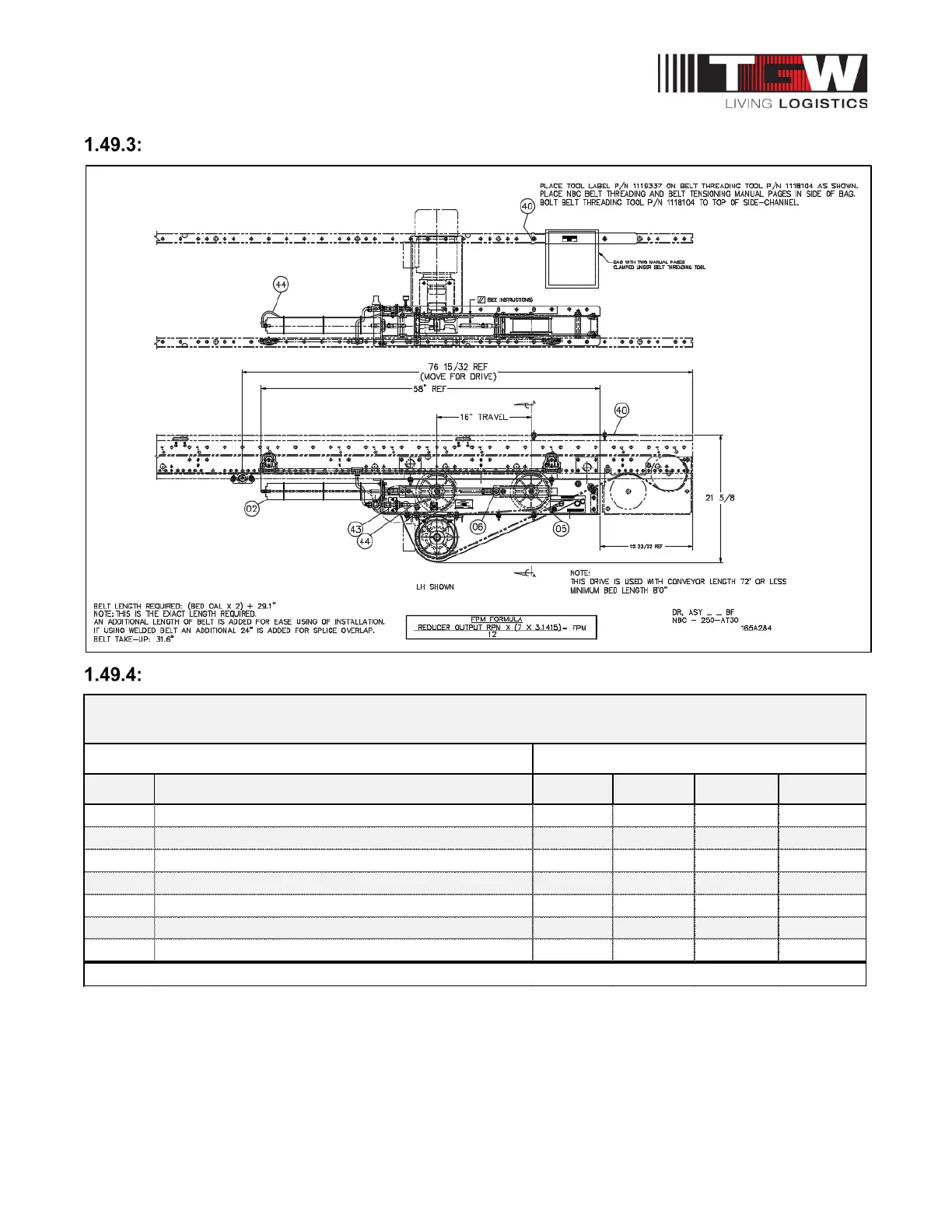

NBC 250-AT30 Drive Assembly
Replacement Parts - NBC 250-AT30 Drive Assembly
DR-ASY,NBC-_ _BF-250AT30-LH or RH
Balloon
Description 16 BF 22 BF 28 BF 34 BF
5 PULLEY,ASY 6"DIA W/FLANGE E0002214 E0002214 E0002214 E0002214
CYL,AIR CLIPPARD 2-1/2"BX16"S 1166665 1166665 1166665 1166665
6 ROD,END SPHERICAL 1/2" ID, 1137475 1137475 1137475 1137475
2 BRG, R6 ZZ C3 90050111 90050111 90050111 90050111
43 ASY,AIR VALVE NBC 250AT DRIVE 1185955 1185955 1185955 1185955
44 TUBING,1/4"POLYU-95DURO.160ID E0005539 E0005539 E0005539 E0005539
40 TOOL,NBC BELT THREADING & INSTRUCTIONS 1119143 1119143 1119143 1119143
REPLACEMENT PARTS - NBC 250-AT30
Width & Item #
DWG 165A284
