NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 66 of 129
1.34: A METHOD OF STOPPING THE COASTING PRODUCT

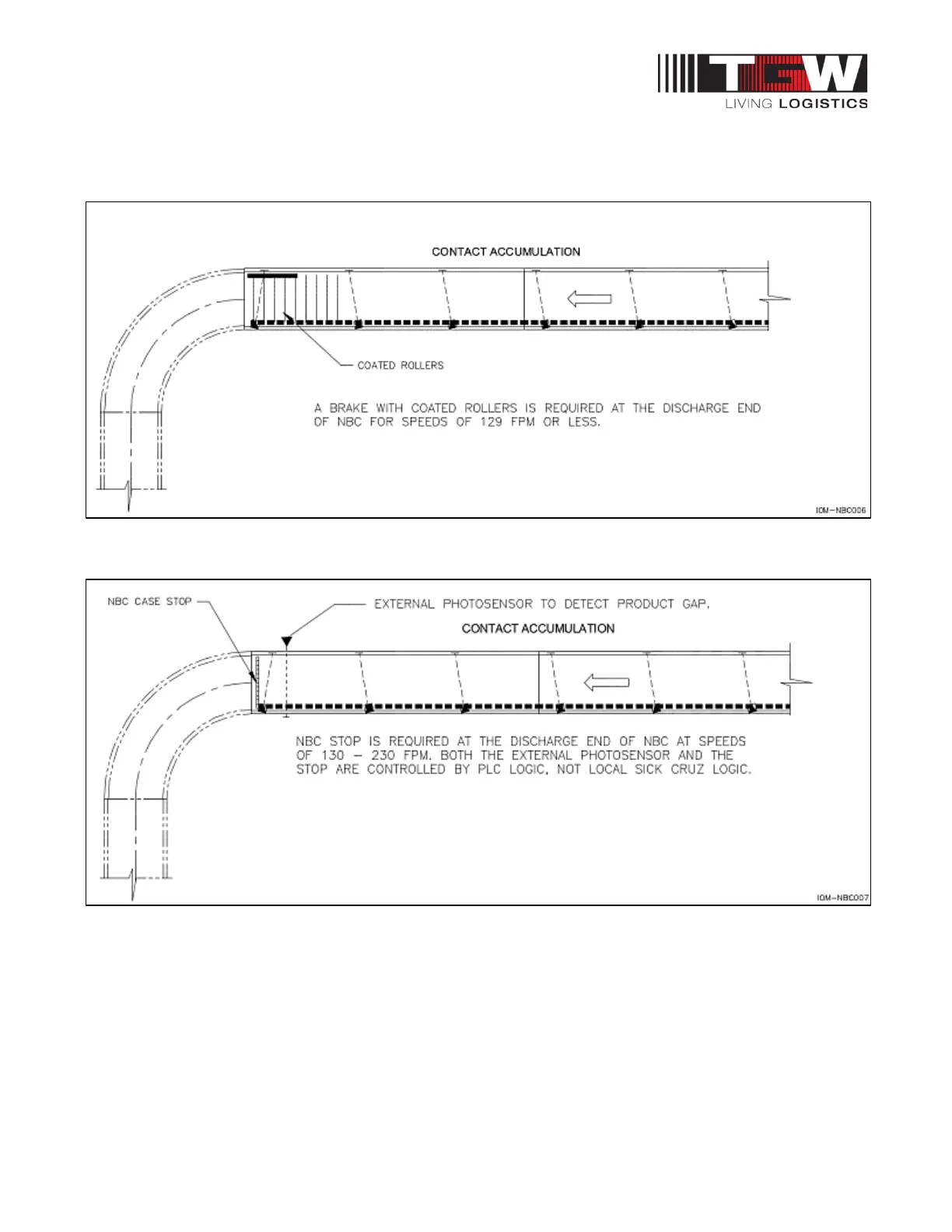

The follo5wing diagrams describe three different methods of stopping coasting products.
For speeds up to 129 FPM, a brake with six coated rollers is sufficient. Standard brake kits are
available for NBC.
For speeds from 130 FPM to 230 FPM, a stop is recommended at the discharge end of NBC to stop
the coasting product and begin accumulation. Standard stop assemblies are available for NBC.
Please note that a stop cannot be allowed to come up under a product. An external PLC controlled
sensor must be used to detect a gap and then activate a solenoid to raise the stop.
