NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 47 of 129
1.24: ROLLER CENTERS 3”

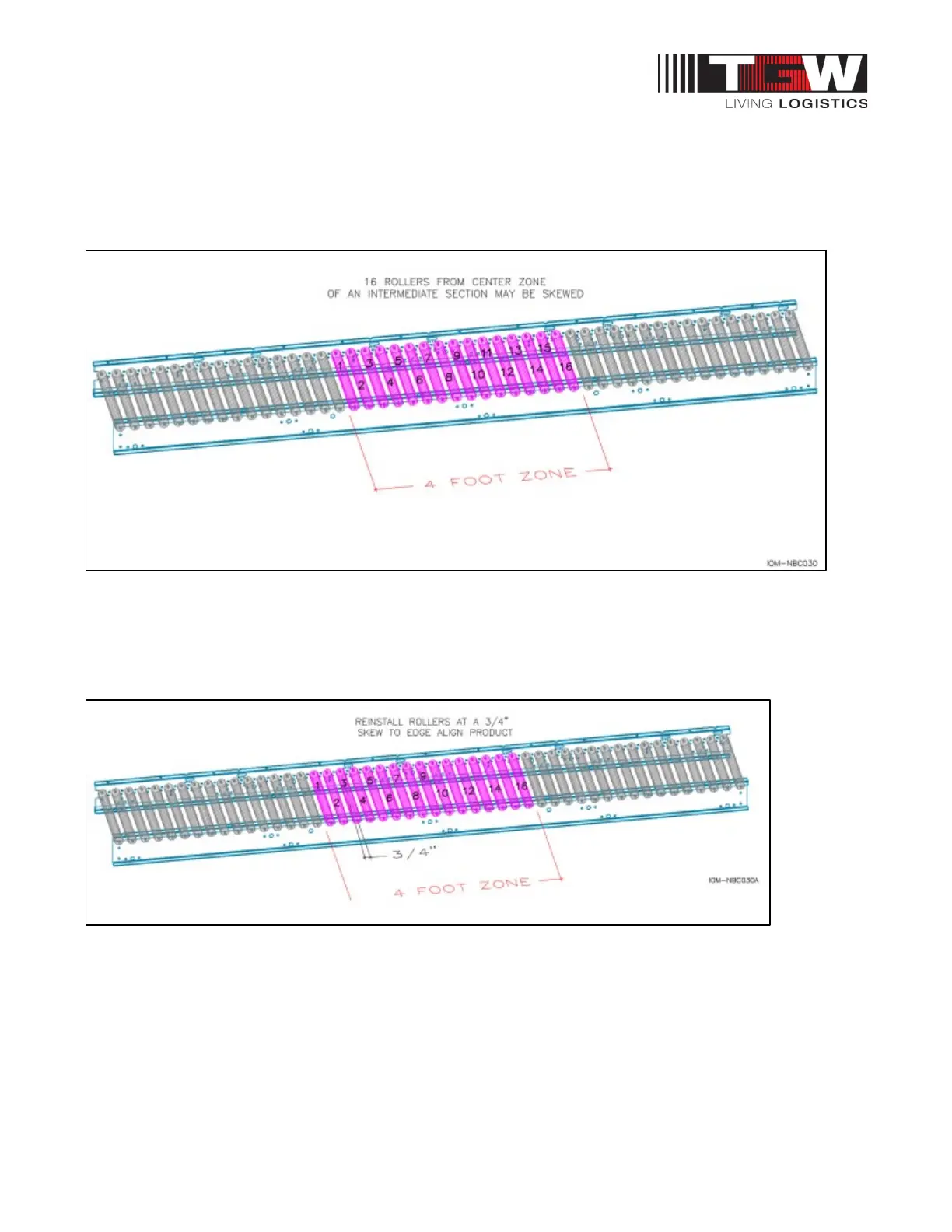

Step 1
Select the conveyor section in which the rollers are to be skewed. Determine the direction of skew
desired. All rollers in the middle zone are used for skewing.
NOTE:
The bed center 4’ zone is the only zone that can be skewed on a 12’ intermediate bed.
Step 2
Skew rollers 3/4" to direct the product to the alignment side.
NOTE:
Rollers may only be skewed a maximum of ¾” in either direction on the side channel opposite the
drive belt.
