NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 48 of 129

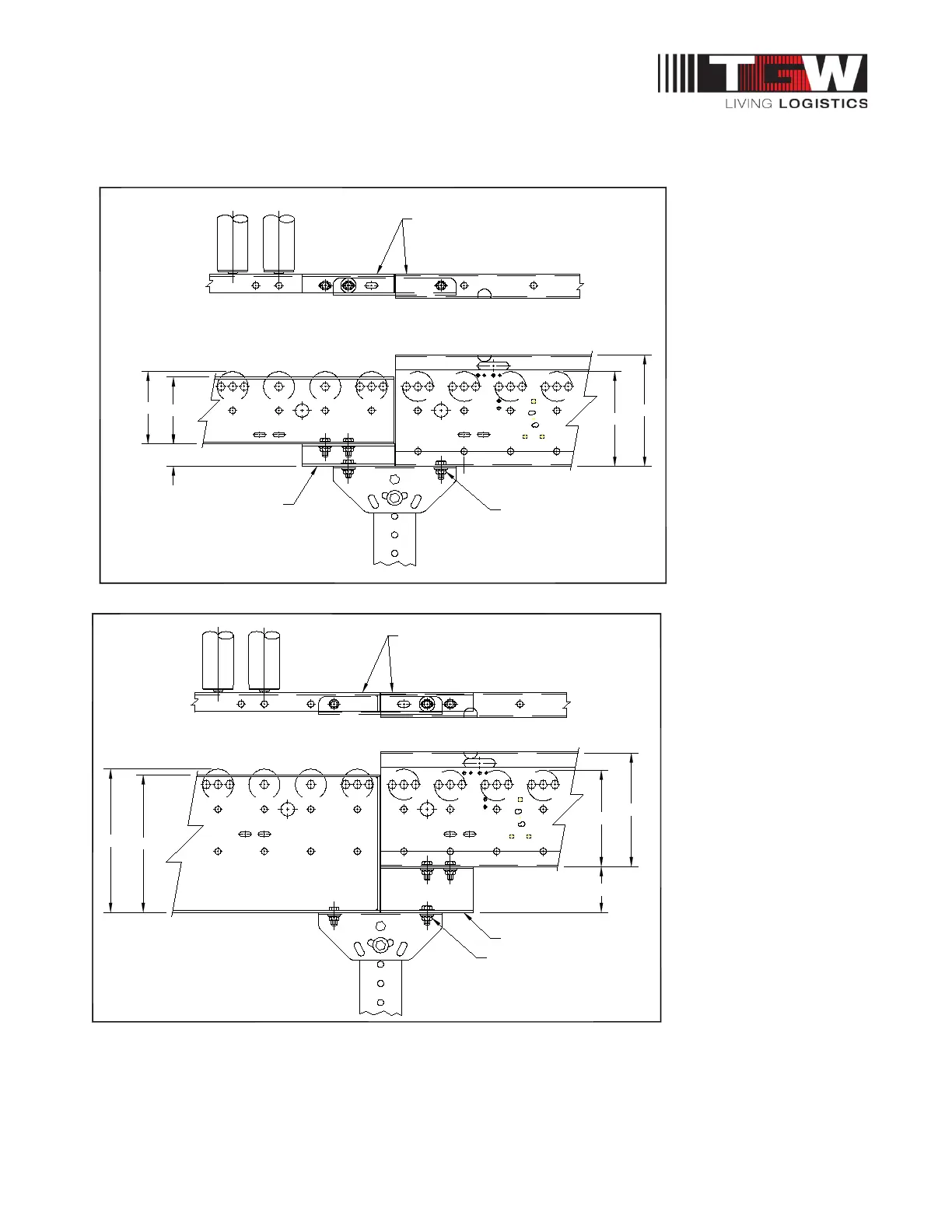

1.25: CRUZ
®
CHANNEL TO XENOROL
®
CHANNEL CONNECTIONS
NOTE: C6 Channel uses the exact same connections when mounted to XenoROL.
KIT,CHANNEL CONN
P/N 92300004
4to7ChannelConn-89003
ALIGN INSIDE SURFACES OF SIDE CHANNELS
4-1/2
4-7/8
1-1/2
6-3/8
7-1/2
3/8 HARDWARE (TYP)
P/N 80700119
P/N 92300009
KIT,CHANNEL CONN
9to7ChannelConn-89003
ALIGN INSIDE SURFACES OF SIDE CHANNELS
3/8 HARDWARE (TYP)
P/N 80700120
7-1/2
6-3/8
3
9
9-3/8
