TGW NBC - Nbc

NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 124 of 129

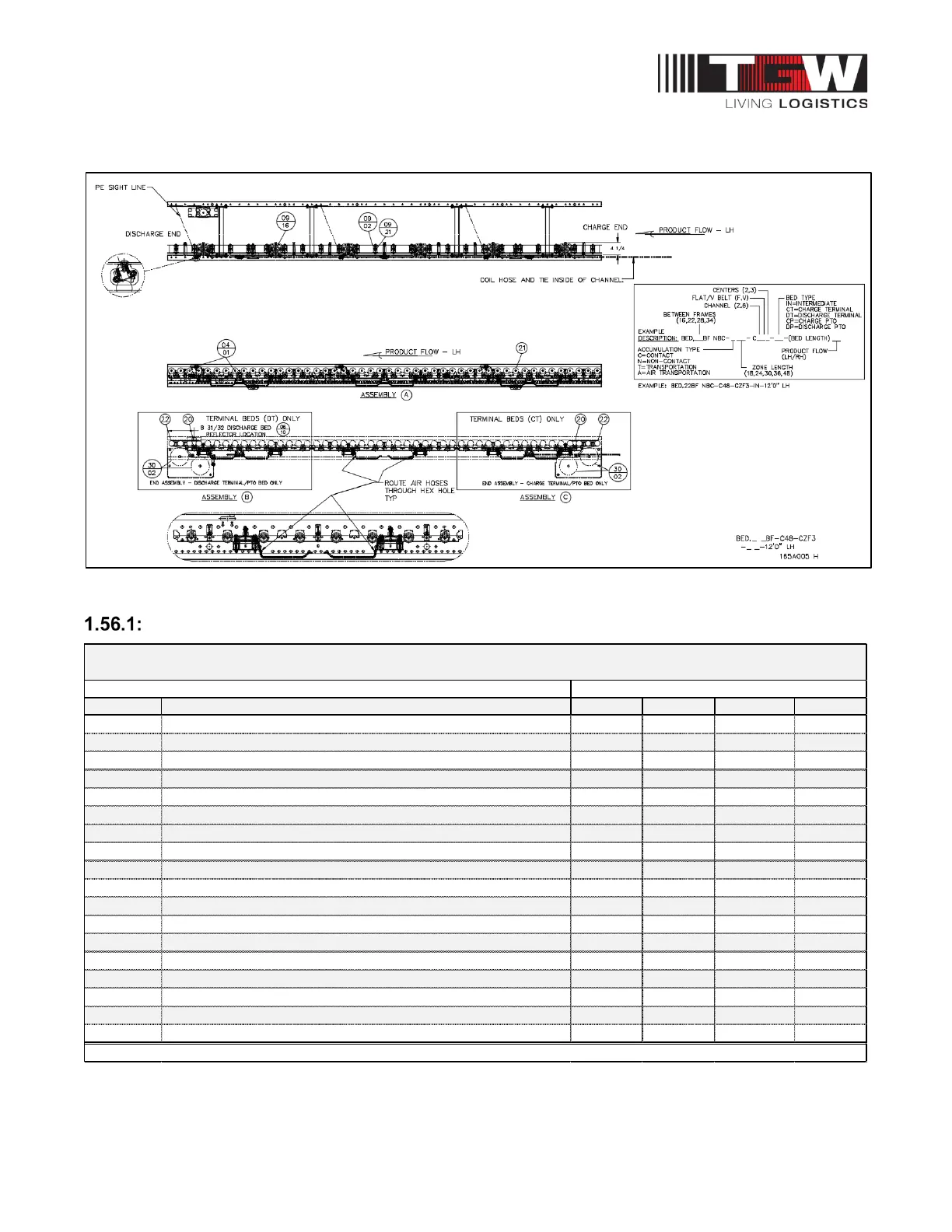

1.56: NBC 12 FT. CONTACT ACCUMULATION
(LH bed shown)
Replacement Parts - NBC Contact Accumulation
BED,NBC-_ _BF-C48-IN-CZ-2rc OR 3RC-LH/RH
Balloon Description
16 BF 22 BF 28 BF 34 BF
---- HARNESS,ASY NBC 48" 3 ZONE LH ATB
---- ---- ---- ----
04/01 LM,ASY AIR TO BRAKE W/PE BRKT & HDWE 1115898 1115898 1115898 1115898
---- PE,REFLECTOR W/ FOAM TAPE HORIZONTAL MOUNTED ---- ---- ---- ----
06/10 PE,REFLECTOR 4-3/8" X 1-1/8" 400004 400004 400004 400004
---- ASY,RETURN ROLLER NBC ---- ---- ---- ----
30/02 ACTUATOR,SHEAVE ASY E0002212 E0002212 E0002212 E0002212
----- STANDOFF,ACTUATOR,SHEAVE ASY E0002213 E0002213 E0002213 E0002213
------ PAN,PRS ASY ---- ---- ---- ----
09/02 ROLLER,PRESSURE NBC 1109203 1109203 1109203 1109203
09/16 DIAPHRAGM,ASY PNEUMATIC 1 AIR SINGLE AIR INLET 60710000 60710000 60710000 60710000
----- TUBING,URETHANE .250OD,.159ID 89000580 89000580 89000580 89000580
09/21 BRG, R6 ZZ C3 90050111 90050111 90050111 90050111
BED,NBC-_ _BF ---- ---- ---- ----
20 ORING,83A ST TRNS 3/16X9-15/16 90530005 90530005 90530005 90530005
21 ROLLER,_ _"GRAV 1.9 PLTD PRBG 60218009 60224009 60230009 60236009
22 ROLLER,_ _ITR 1.9PLTD PRBG E0002412 E0002413 E0002414 E0006220
---- HOSE, CLEAR ---- ---- ---- ----
---- TUBING,POLYETHYLENE 3/8 OD,CLR 89000585 89000585 89000585 89000585
REPLACEMENT PARTS - NBC CONTACT ACCUMULATION
Dwg# 165A005
Width & Item #
