NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 46 of 129
Step 2

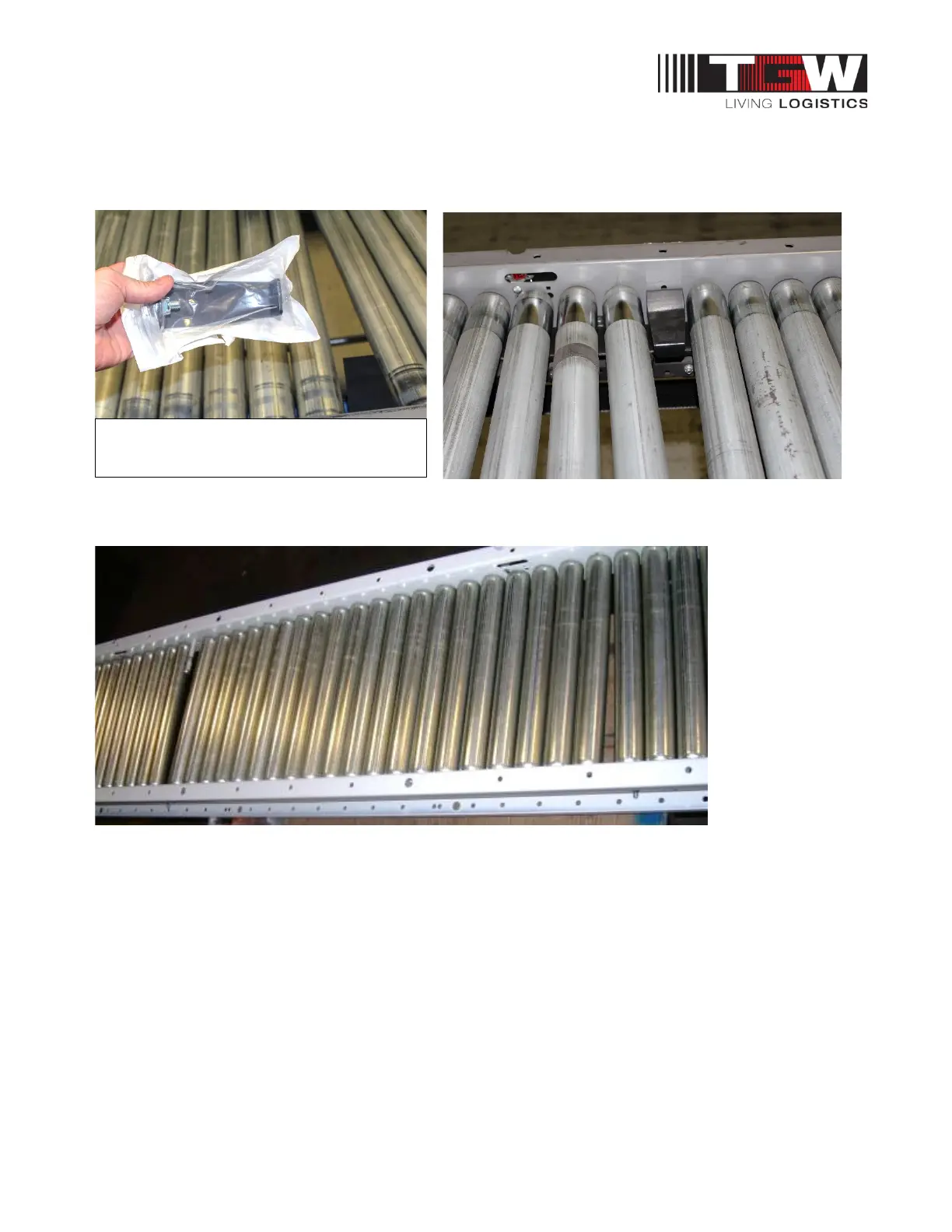

Install belt guard in 9/32" dia. hole provided. Belt guard provides support of small product at the
formation of the skewed zone.
Step 3
Skew rollers 3/4" to direct the product to the alignment side.
Right Hand Skew Shown Traveling from Right to Left
NOTE:
Rollers may only be skewed a maximum of 3/4" in either direction. One hex hole either side of three
hole groups on 3” roller centers.
