NBC 250-AT30 Air Take-Up

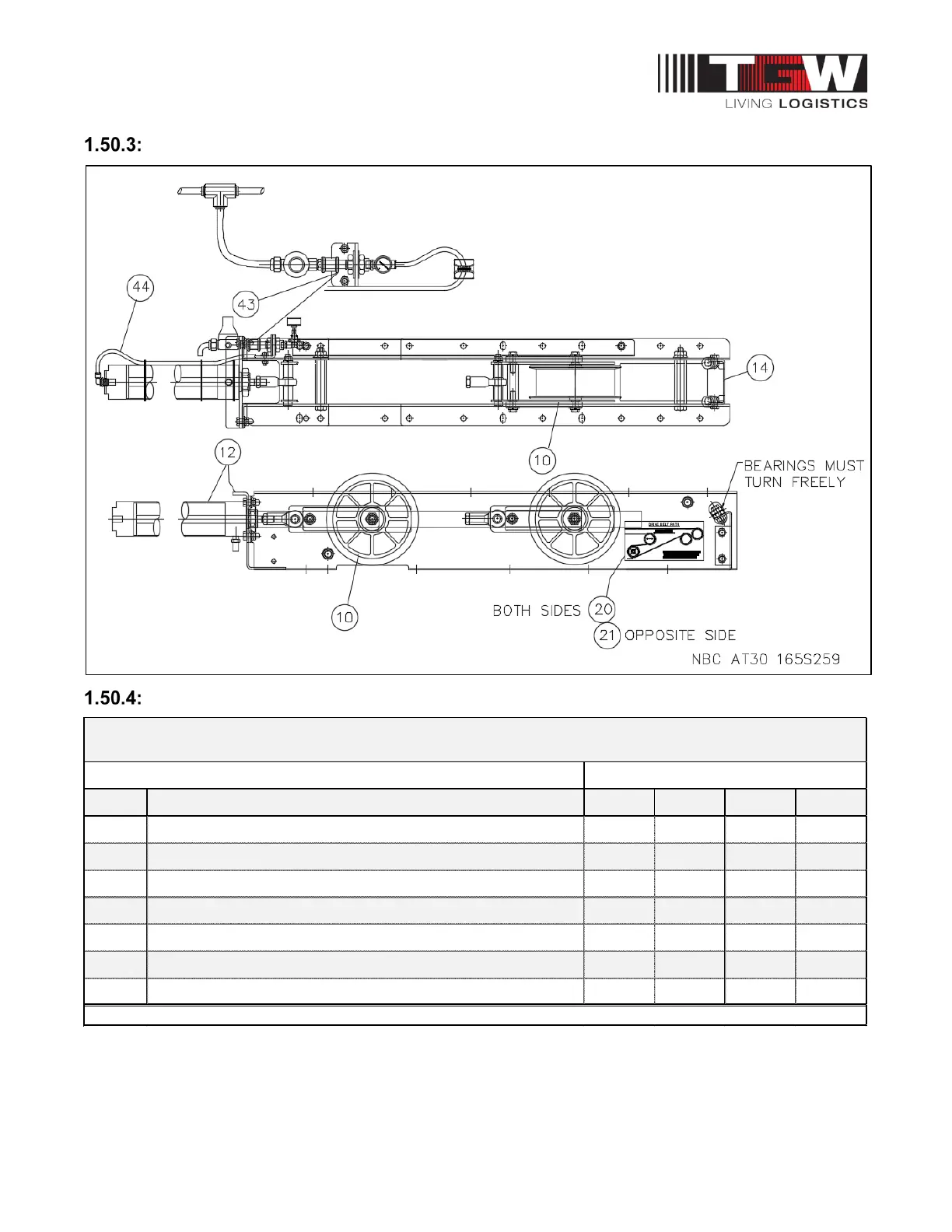

Replacement Parts - NBC 250-AT30 Air Take-Up
DR,FRAME ASY NBC-150-AT RH/LH
Balloon Description 16 BF 22 BF 28 BF 34 BF
10 CARRIAGE,TAKE-UP DR250-AT30 NBC 1167395 1167395 1167395 1167395
12 C
YL,ASY NBC DR250-AT30 1167396 1167396 1167396 1167396
14 GUIDE,BELT DR250 NBC 1117950 1117950 1117950 1117950
20 LABEL,NBC DRIVE 250 BELT PATH LH 1118030 1118030 1118030 1118030
21 LABEL,NBC DRIVE 250 BELT PATH RH 1118031 1118031 1118031 1118031
43 ASY,SLEEVE VALVE NBC 3/8" IN - 1/4" OUT W/90 ELBOW 1168369 1168369 1168369 1168369
44 TUBING,1/4"POLYU-95DURO.160ID FREELIN WADE #1B-151-10 E0005539 E0005539 E0005539 E0005539
Width & Item #
REPLACEMENT PARTS - NBC 250-AT30
DWG 165S259 A
