Conveyor Power Supply
TGW’s power supplies feature a compact housing design that is designed specifically for use with
CRUZcontrol logic modules.
These units meet the latest NEC Class II requirements in accordance with UL, EN, IEC standards.
Installation is fast and easy due to slotted holes in a durable mounting plate that mounts directly to the
side of the conveyor.
The power supplies are also capable of buffering brief power failure conditions at rated voltage (e.g.
20 ms at 120 VAC) in accordance with EN 60204-1. Global acceptance is also achieved by
conformance with cULus standards (North American compliance) and CE standard requirements
(European compliance).
Power Supply Features
• Adjustable output voltage up to 24…28 VDC
• 115/230 VAC or 480 2 phase VAC input
• State-of-the-art design
• Type 1 enclosure, IP 20
• Bolt on mounting

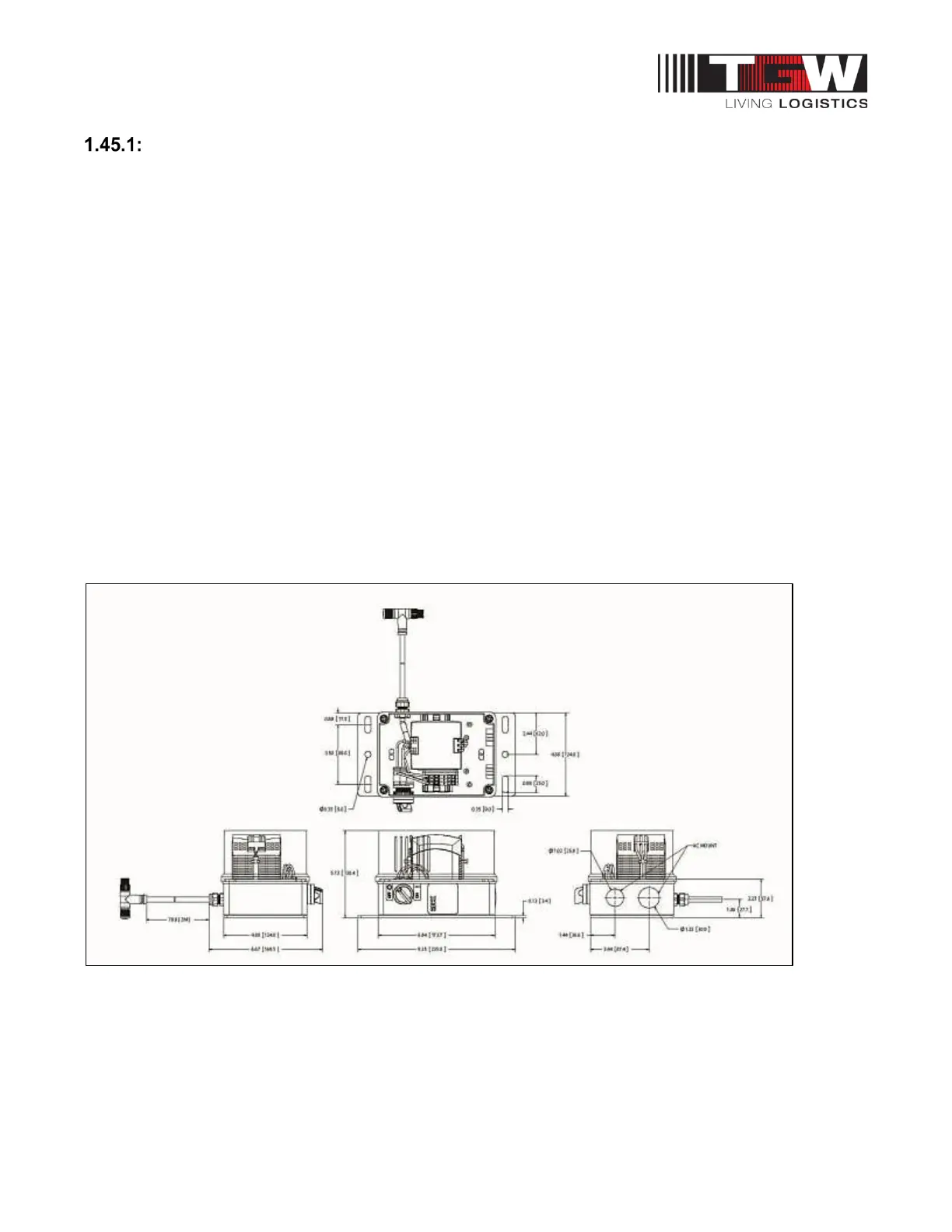

Figure 29: TGW P/N 1117432 Dimensional Diagrams
