NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 34 of 129

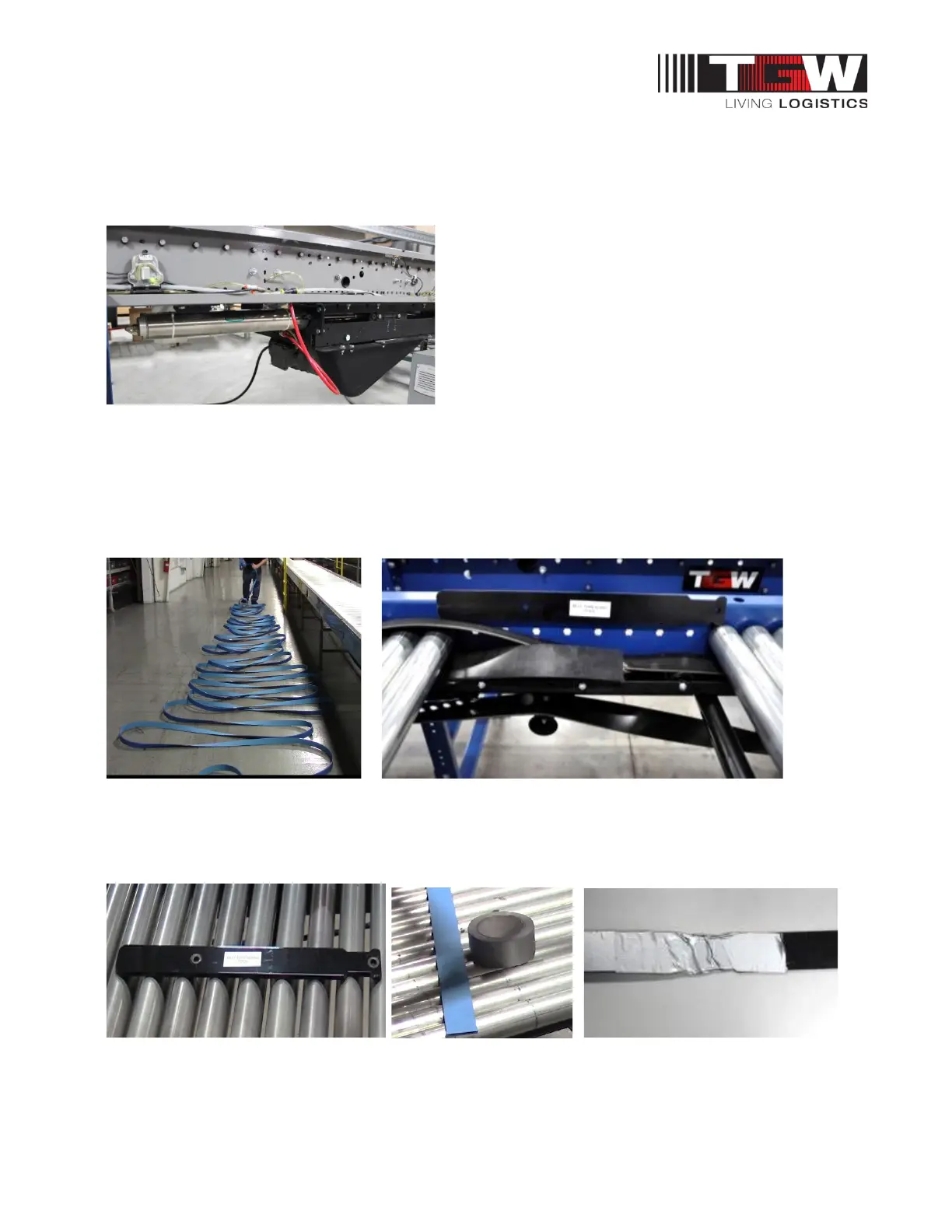

Step 3
Remove bottom guard on drive to have access for belt threading (250-AT30 drive guard
shown – the 500-AT bottom guard is a flat plate).
Step 4
Uncoil the new belt. With the air pressure ON the logic, and the logic module power OFF,
attach a sheet metal splint or the belt threading tool (attached to each drive from factory P/N
1118104) with tape to the end of the belt. This will enhance the ability to thread the belt
under the rollers without the ends curling.
NOTE:
Keep tape smooth and do not apply too much tape, as it will make it difficult to push the belt
through the guide rollers.
