NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 37 of 129

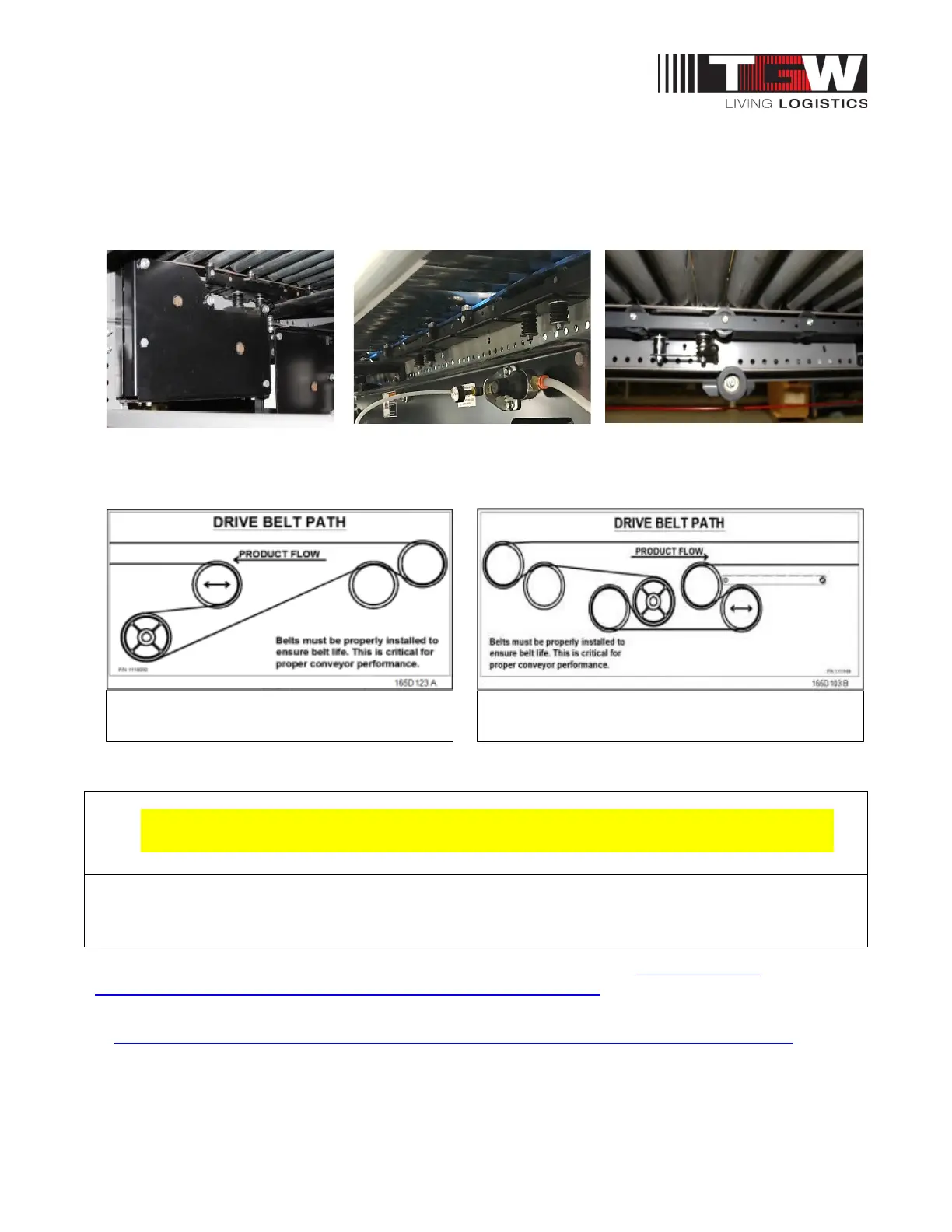

Step 7
Pull belt through the bottom side of the conveyor. The belt must be on TOP of the return belt
idlers. Wrap the belt end around the drive take-up pulley (250lb manual drive). Wrap the belt
end around the drive idler pulley before the air take-up pulley in AT drives.
Step 8
Always reference the belt path label on the side of the drive and pull the belt through.
Form more NBC applications TGW recommends the following IOM’s at https://www.tgw-
conveyor.com/technologies/belt-driven-roller-conveyor/nbc-manual
TGW Also recommends NBC maintenance videos for tracking the NBC belt and NBC belt alignment
at https://www.tgw-conveyor.com/media-center/maintenance-videos/82-belt-driven-live-roller
•
Never field splice the blue urethane belt (TGW P/N 1205548) with mechanical lacing,
as the belt fabric is not designed to hold lacing.
250-AT30 (Air Take-up)
500-AT (Air Take-up)
