TGW NBC - Page 40

NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 40 of 129

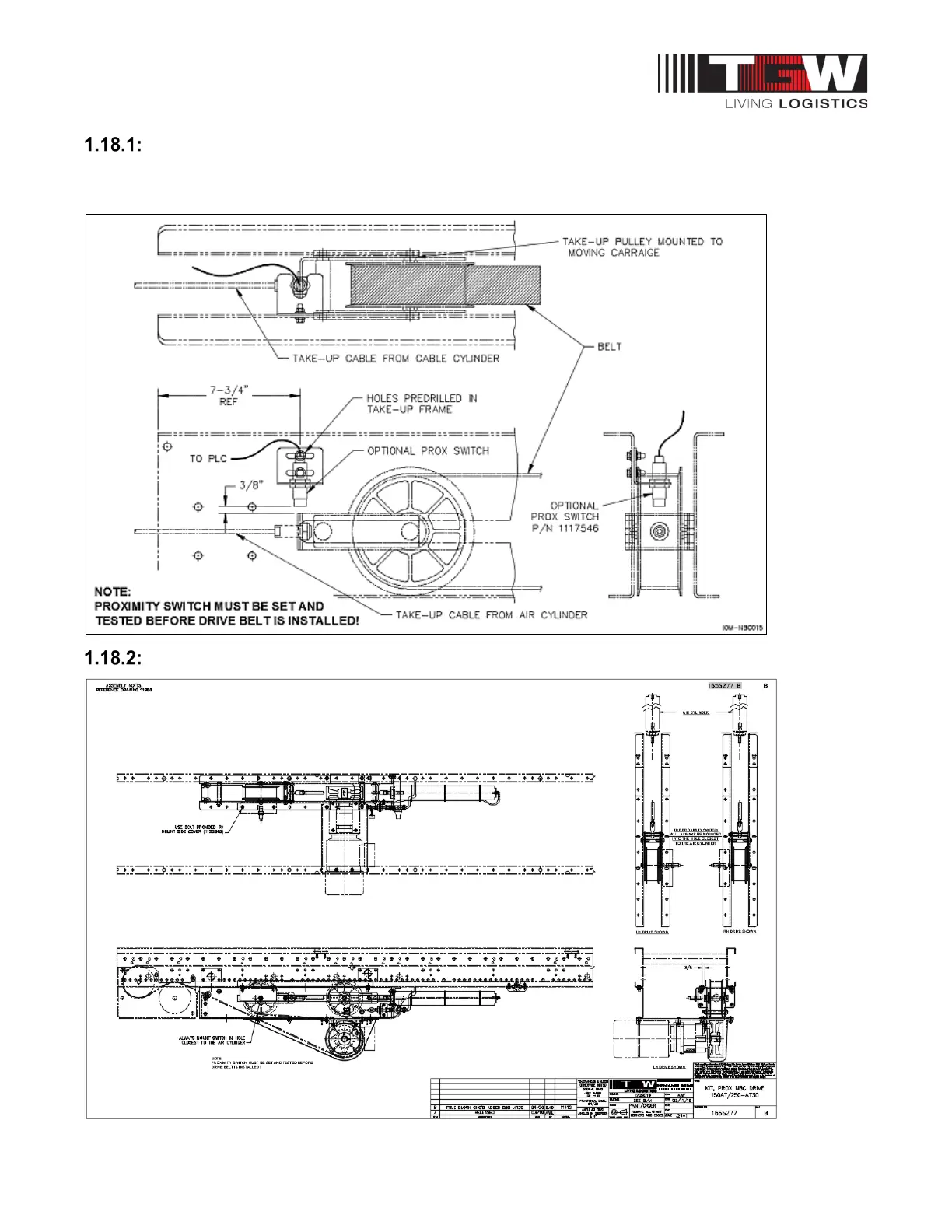

Wiring (Optional) Proximity Switch - 500-AT Drive Air Take-up
There is a location for wiring a proximity switch in the air take-up. This can be used to shut off the
drive should the belt stretch to the point of bottoming out the take-up or if a belt would break.
Wiring (Optional) Proximity Switch - 250-AT30 Drive Air Take-up
