NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 96 of 129

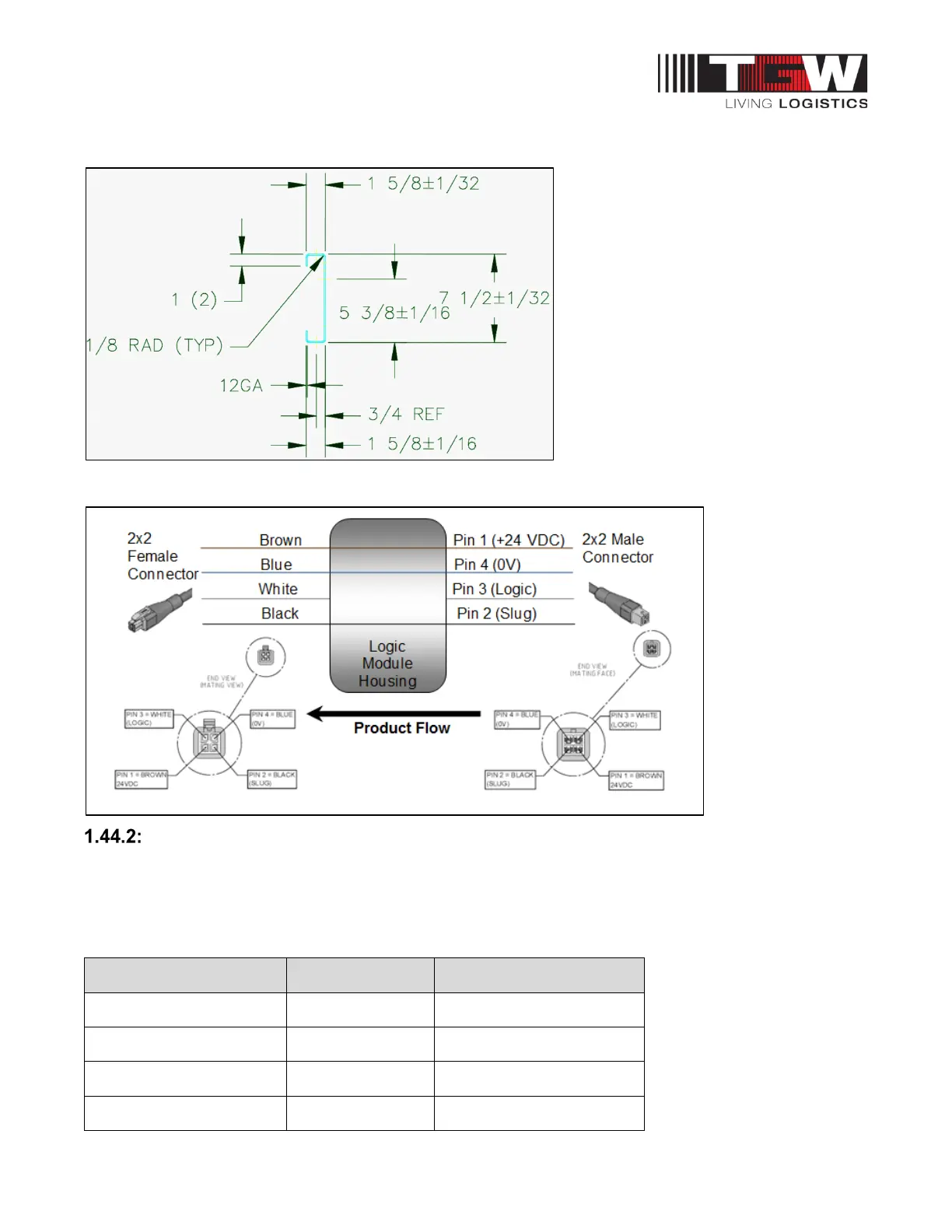

Figure 20: TGW Conveyor CRUZ-Channel
Figure 21: Logic Module Wiring for over molded 2x2 Daisy Chain Cables
Description of Logic
Two accumulate modes will be selectable on the module and two release modes will be available via
wiring. Their operation is described below. NOTE that both single and slug release is available in
basic mode while progressive mode will only slug release due to the logic (refer to Table 20).
Table 16: Logic Function
Function Basic Logic Progressive Logic
Single Accumulate Yes No
Slug Accumulate No Yes
Single Release Yes No
Slug Release Yes Yes
Basic Accumulation Module
