3.5.3 AUX 1-3 On/Off/Auto
• ON position will activate the auxiliary device, example water table.
• AUTO position will activate the auxiliary device, example water table when a cutting program is active.
• OFF position will turn off the auxiliary device, example water table).
3.5.4 Down Draft On/Off/Auto
• ON position will activate the fume extractor.
• AUTO position will activate the fume extractor when a cutting program is active.
• OFF position will turn off the fume extractor.

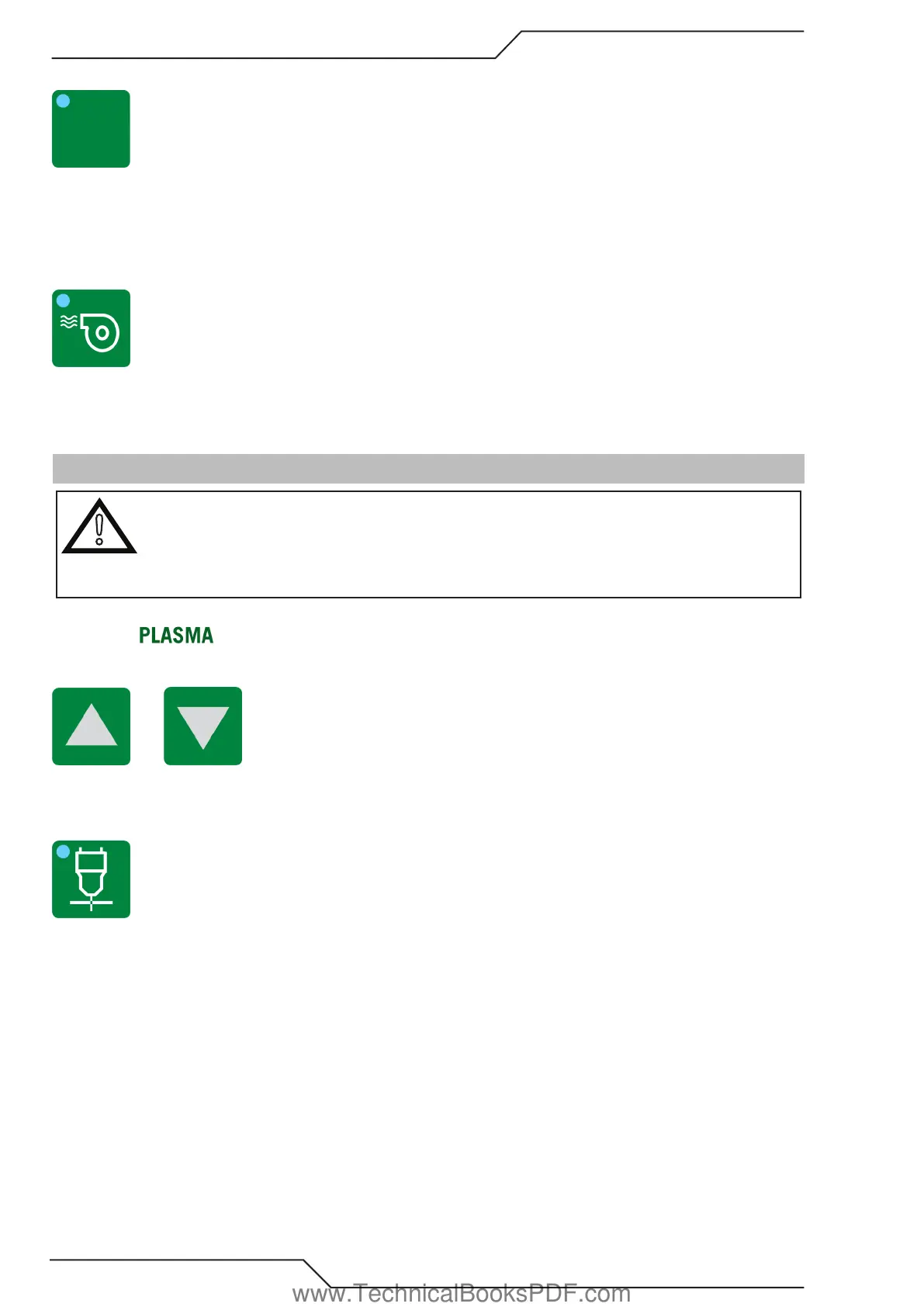

3.6 Plasma Button Descriptions and Functions
!
CAUTION
Most buttons have 2 functions and the different color LEDs indicate the state. Pressing a button
will toggle the function ON/OFF and keeping the button pressed in for 3 seconds will toggle the
function to AUTO. Green LED indicates ON state and orange indicates AUTO state. If both LEDs
are OFF then the state is OFF
3.6.1 Up / Down
• Up / Down button will move the plasma torch Up/Down.
3.6.2 Plasma On/Off/Auto
• ON position will activate the plasma start output.
• AUTO position will activate the plasma start output when a cutting program is active.
• OFF position will turn off the plasma start output.
