iCNC PERFORMANCE
5-40 NESTING Manual 0-5399

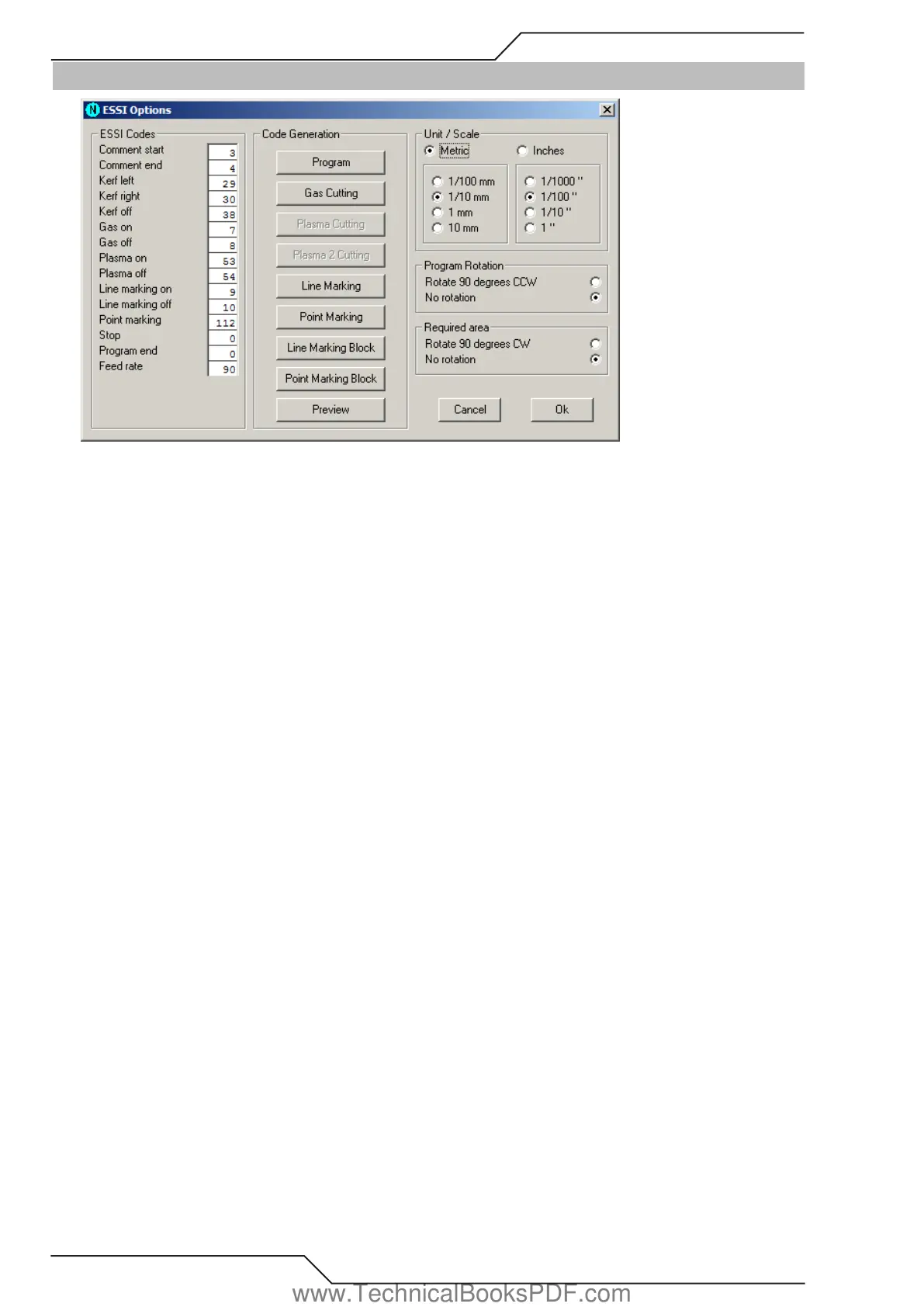

5.13 ESSI Options
These options are used when reading and writing ESSI files.
Essi Codes
ESSI files are interpreted according to these codes. These codes should match the codes used in the ESSI file.
Program Rotation
If the rotation is selected, all the new nestings which are read from ESSI files will be rotated 90 degrees counter clockwise.
Unit / Scale
These options set the default units and scale used in ESSI files.
Code Generation
Use these commands to define start and end sequences of different actions. These sequences are used in writing ESSI files. See Code
Sequences for more information.
