iCNC PERFORMANCE
4-8 iHC Manual 0-5399
Outputs
14. System Error (Inverted) can be connected to CNC controllers external stop
15. Optional reserved for future use
16. Sense Relay 24VDC Output for voltage divider board.
17. IHS Active outbit which is active form the time IHS Start turns active until Ignition Height has been reached.
18. Main Arc outbit to CNC which becomes active when the main arc inbit is activated and the transfer delay has passed.
19. Marking outbit to turn ON the marking output.
20. Plasma Start outbit to tunr on the plasma start output.
21. Stepper Enable step motion enabled/disabled.
22. Stepper Direction DIR signal active.
23. Stepper Pulse step pulse signal active.
24. Laser pointer outbit to turn ON the laser pointer output.

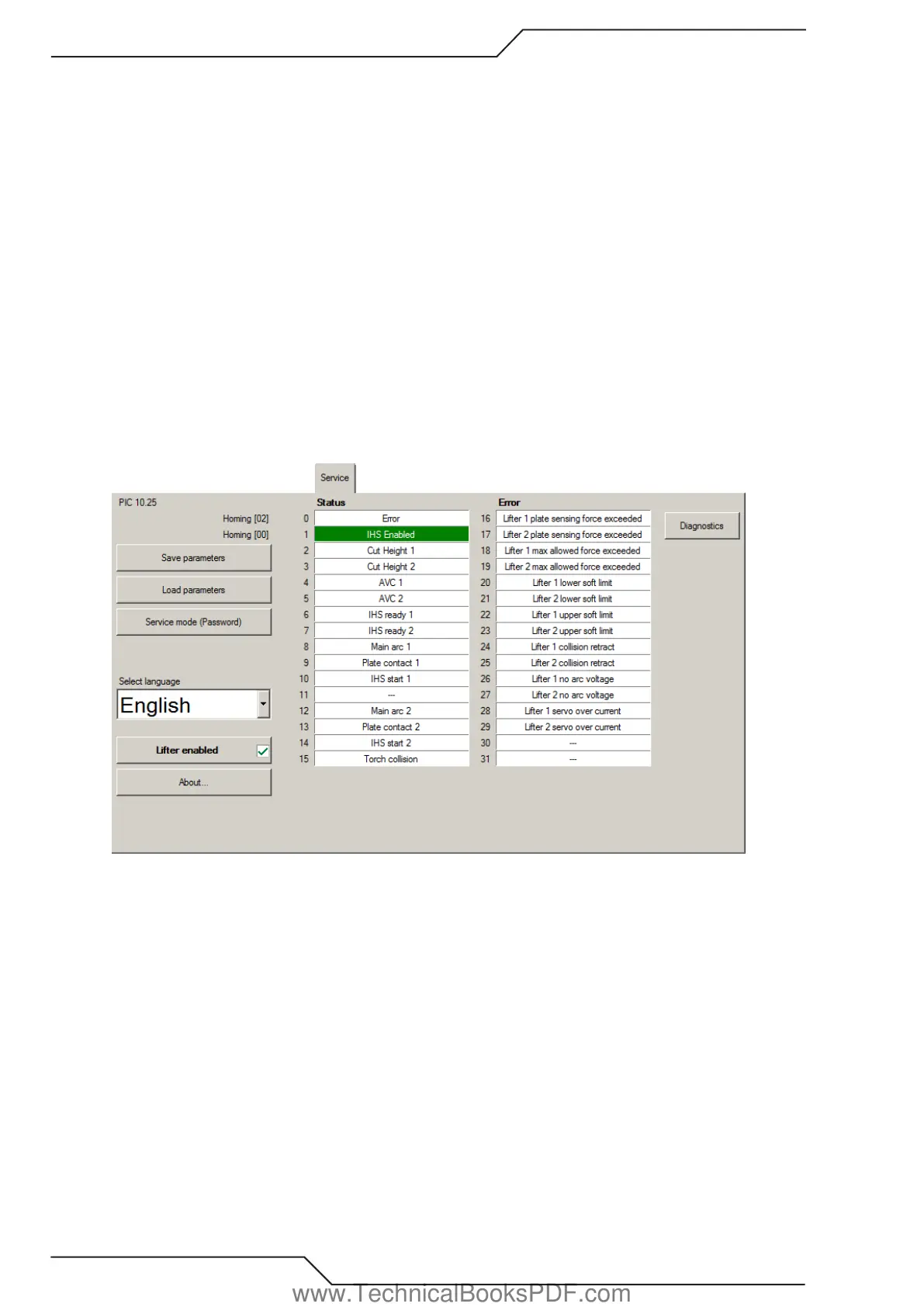

4.4.5 Service Tab
This window contains information about iHC software version, status and errors. Also displays the following:
• Save parameters Saves current parameters, only available in service mode
• Load parameters Loads saved parameters, only available in service mode
• Enter service mode Enables the use of functions and parameters only available in service mode
• Select language Select the language in use
