Thermal Dynamics MERLIN 6000 User Manual

Manual 0-2568 61 APPENDIX
APPENDIX VIII: CNC INTERFACE CABLES
A-01514

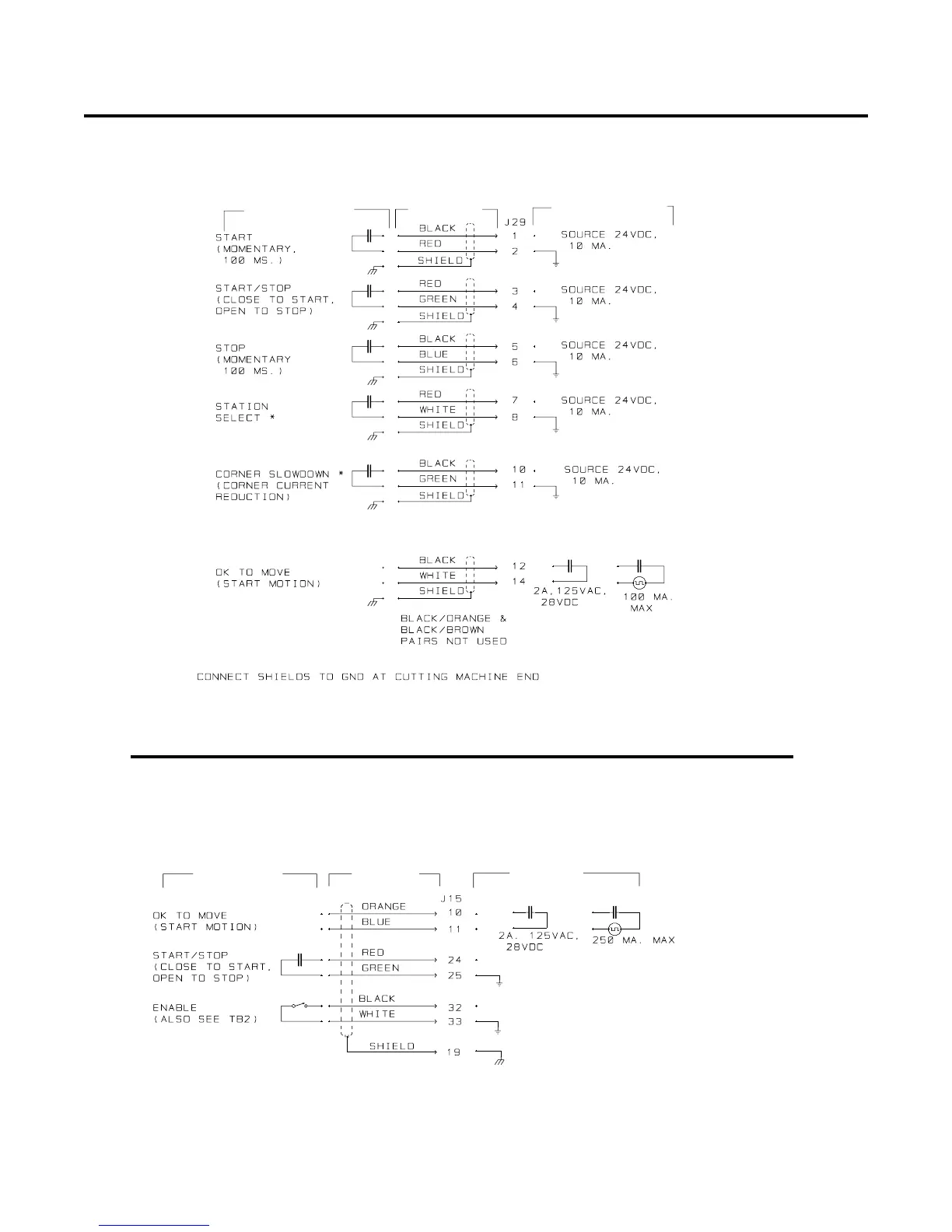

Cable Connections Used With Remote Control RC6010
Cutting Machine
CNC Cable
Remote Control
RC6010
Contact **
24 VAC
Source **
* Refer to Remote Control RC6010
Manual for Station Select and CSD options
** Selected inside the
Remote Control RC6010
A-01515
Cable Connections Used With Standoff Control SC11
Cutting Machine CNC Cable
Merlin 6000
Contact *
24 VAC Source *
* Selected on the Logic PC Board
Source 15 VDC, 10 ma
Source 15 VDC, 10 ma
