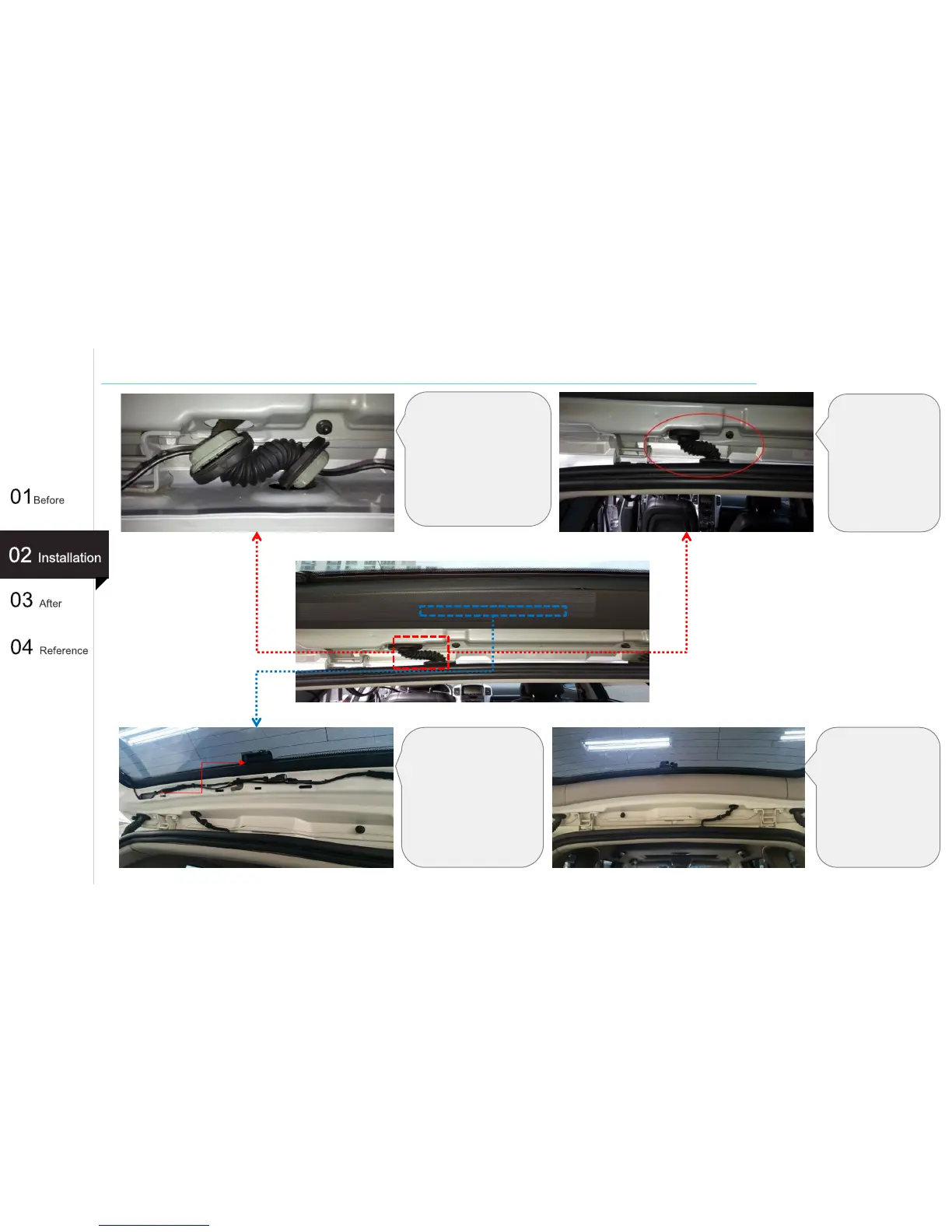

Order of mounting a rear camera _ SUV
⑥
Recover the
trunk
connection tube.
After mounting the
rear camera,
connect the cable in
the direction of arrow
as illustrated.
Disassemble the trunk
connection tube to be
sure the cable
penetrates.
Arrange the wires
at the
ceiling(indoor
material) and
assemble the
trunk door trim
and the weather
strip.
