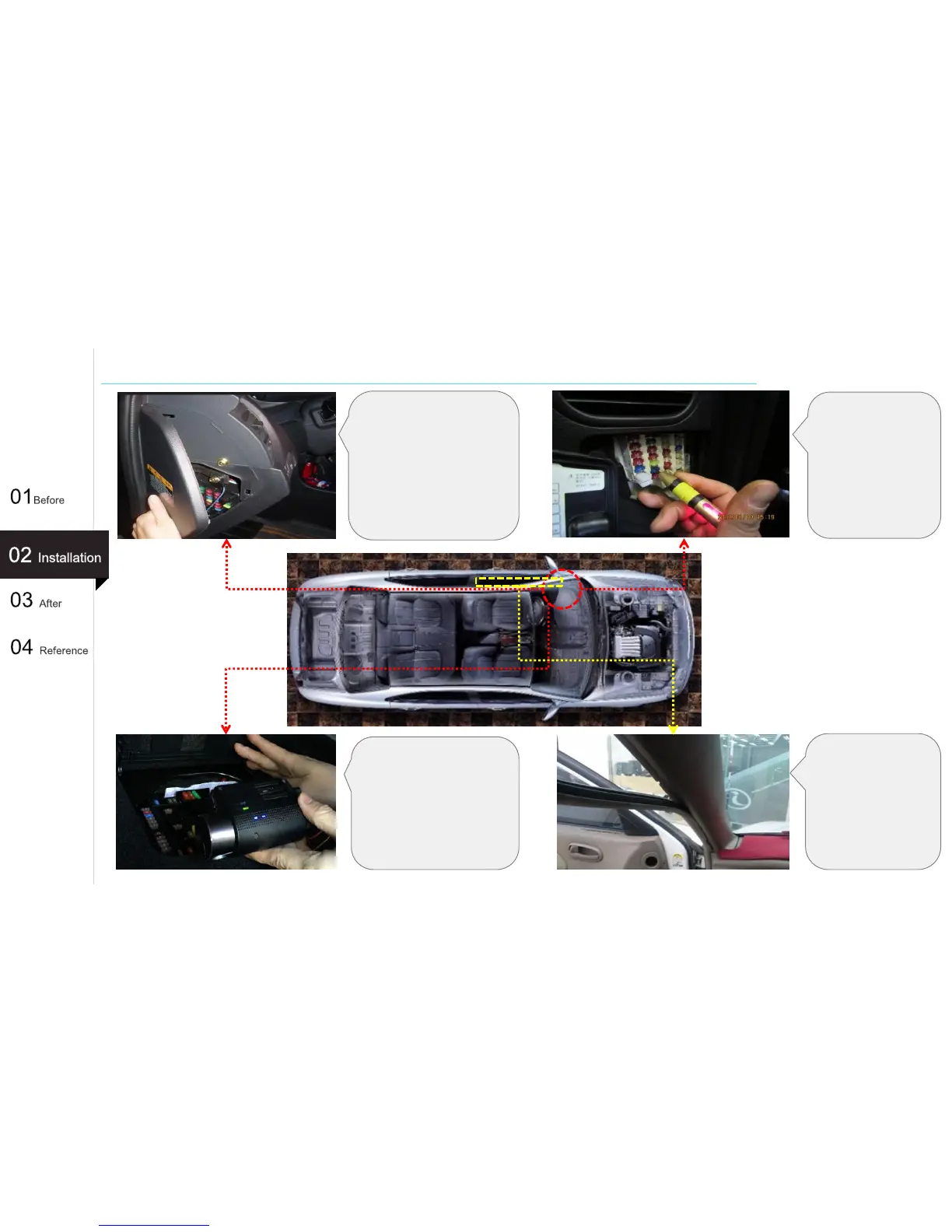

Order of mounting a front camera
Check the location of the
fuse box and remove the
cover.
(Use the hera or remover.)
①
Using a wiring
tester, check for
ACC /B+/GND and
connect wires.
(refer to page 12 to
14)
While the continuous
power cable is connected
to the fuse, turn on the
terminal and ensure it is
powered up properly.
(Ensure the booting is
finished successfully.)
With your hand, pull
down the weather
strip on the driver
seat and remove it
properly.
④
③
②
