Configuration of common Alarm and Shutdown relay outputs
The versatility of the TPS 300 software permits the user to configure any output relay for
available common Alarm or Common Shutdown relay output for the MEC 310 project. To
properly configure a Common Alarm or Common Shutdown relay output you would need to
perform the following steps:
NOTE: For this example Relay 45 will be used as a Common Shutdown and Relay 47 will be
used as a Common Alarm.

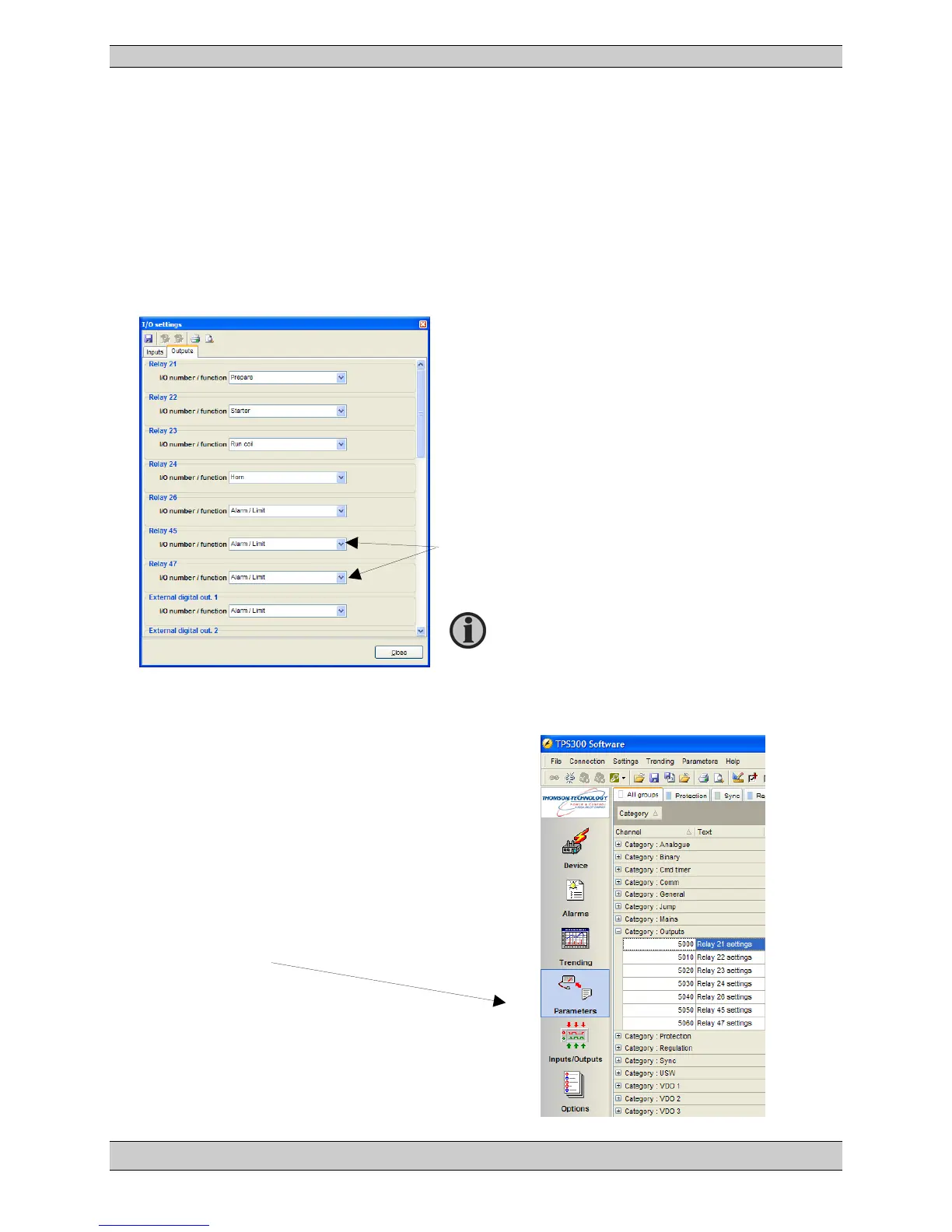

1. In the I/O Settings window, set output relay 45 and relay 47 as Alarm/Limit.
Select ‘Alarm / Limit’ from the drop down list for
both Relay 45 and Relay 47.
2. In the Outputs category of the Parameters tab, set relay 45 and relay 47 as Limit.
In the TPS300 Software, click on the
Parameters tab found on the left hand side.
Remember to save and write
the settings to the unit.
