MEC 310 GENSET CONTROLLER
PM075 REV 2 09/08/20 Page 37 THOMSON TECHNOLOGY

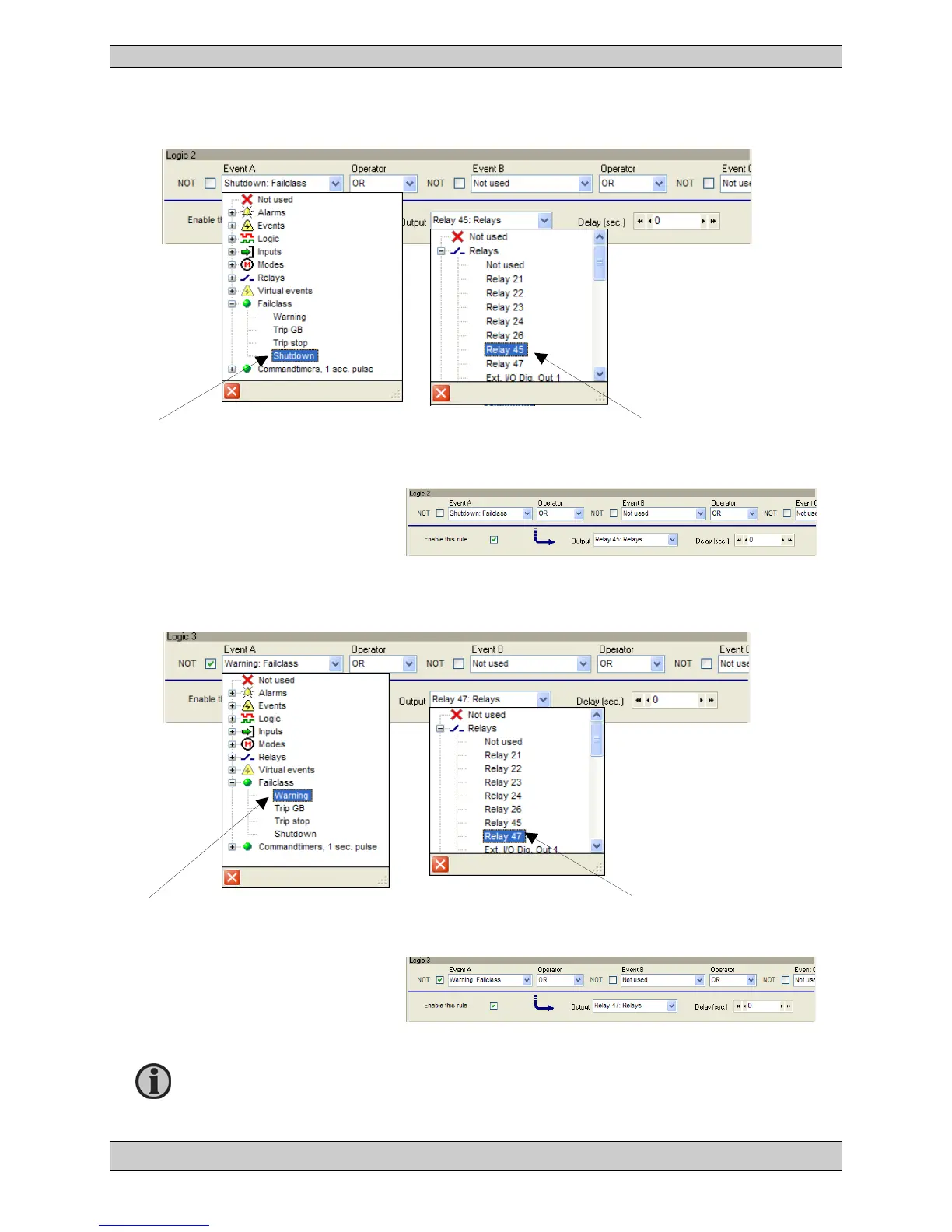

Setup a Logic rung with the following information for Relay 45 - Common Shutdown:
NOT
Event A – ‘Shutdown: Failclass’
Output – ‘Relay 45: Relays’
Enable this rule –
Setup a Logic rung with the following information for Relay 47 - Common Alarm:
NOT
Event A – ‘Warning: Failclass’
Output – ‘Relay 47: Relays’
Enable this rule –
From the dropdown list for
Event A
- Select
Shutdown
From the dropdown list for
Output
- Select
Relay 45
From the dropdown list for
Event A
- Select
Warning
From the dropdown list for
Output
- Select
Relay
47
Relay 47 has a N/C (normally closed) contact, selecting NOT will invert the
contact state.
Remember to save and write the settings to the unit.
