5.4.5 Flange Back Distance
Calculating the flange back distance
Maximum immersion depth for lenses
5.4.5.1 Calculating the Flange Back Distance
To correctly determine the flange back distance of a DCx camera, you need to consider the
distance between the lens flange and the active area of the sensor and, additionally, the type and
thickness of any materials inserted into the optical path.
The "distance in air" between the threaded flange and the active area is 17.526 mm with C-mount
lenses and 12.526 mm with CS-mount lenses.
This "mechanical distance" can change due to the material-specific refractive index of the inserted
materials. The glass cover of the sensor and all filters inserted into the optical path (see Filter types
table) must be taken into account in the calculation.

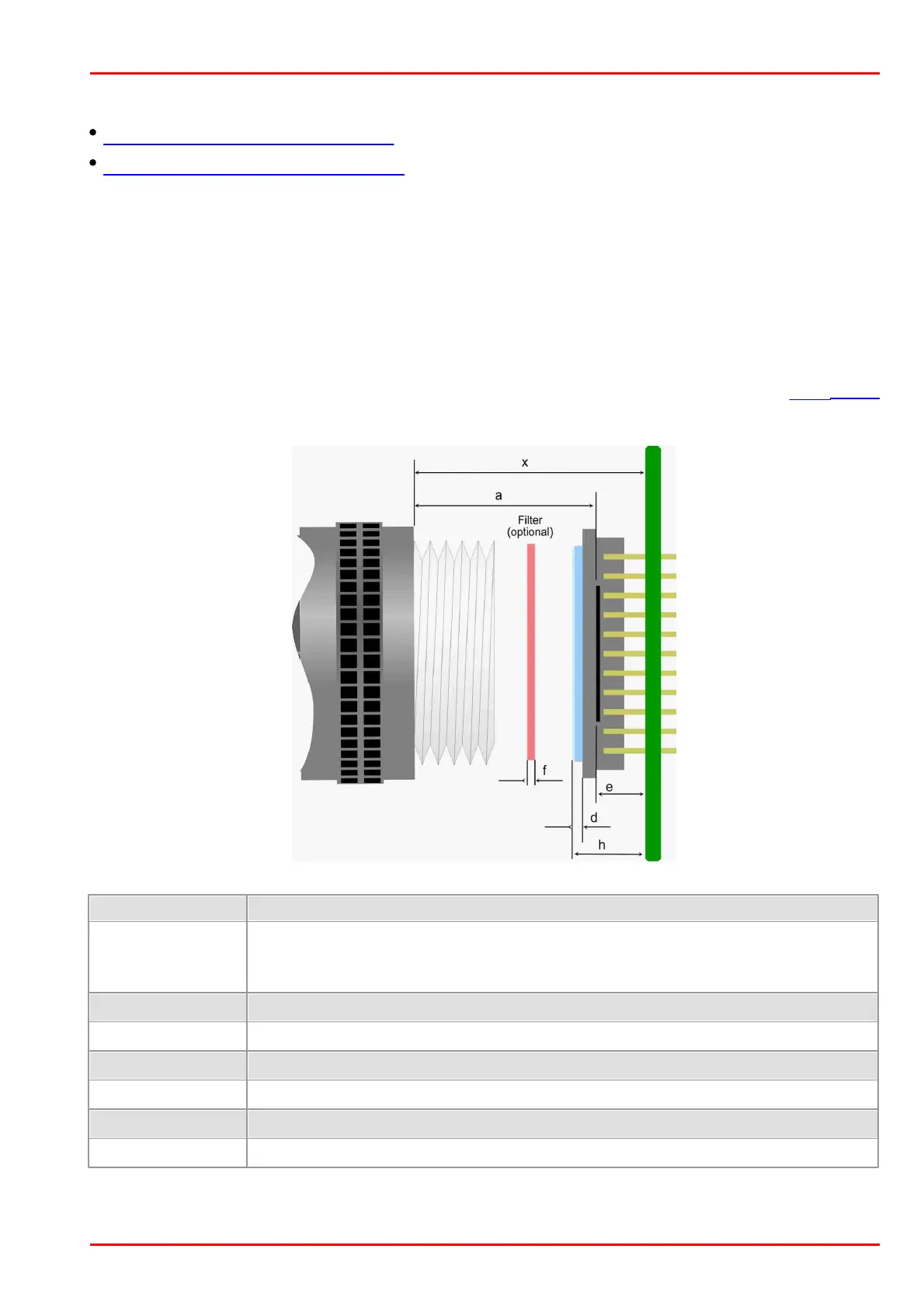

Calculating the flange back distance (schematic illustration)
Designation
Description
a
Distance from threaded flange to active sensor area (flange back distance)
17.526 mm
*1
for C-mount
12.526 mm
*1
for CS-mount
x
Distance from threaded flange to PCB
e
Distance from active sensor area to PCB
d
Thickness of the glass cover of the sensor
f
Filter thickness (optional)
n
Refractive index
h
Maximum sensor height above the PCB
*
1
This distance describes the equivalent in air (see introduction above)
