© 2013 Thorlabs GmbH
2 Camera Basics
19
2.1.2 Trigger Mode
In trigger mode, the sensor is on standby and starts exposing on receipt of a trigger signal. A trigger event can be
initiated by a software command (software trigger) or by an electrical signal via the camera’s digital input (hardware
trigger).
This chapter describes the different trigger modes you can use with the DCx Cameras. To choose a mode, go to
the camera properties of the uc480 Viewer application or use the API command.
Note
Note on the schematic diagrams: These illustrations show a schematic view of the image capture sequence. The
sensor exposure and readout times and the transmission times depend on the camera model and settings. The
pre-processing time depends on the API functions you are using (e.g. color conversion, edge enhancement).
For more information on flash timing see the Digital In-/Output (Trigger/Flash) chapter.
Software trigger mode
When this mode is enabled, calling the "Snap" function triggers the capture of an image, which is then transferred
to the PC. If you call the "Live" function in this mode, the image capture is triggered continuously and images are
transferred continuously.

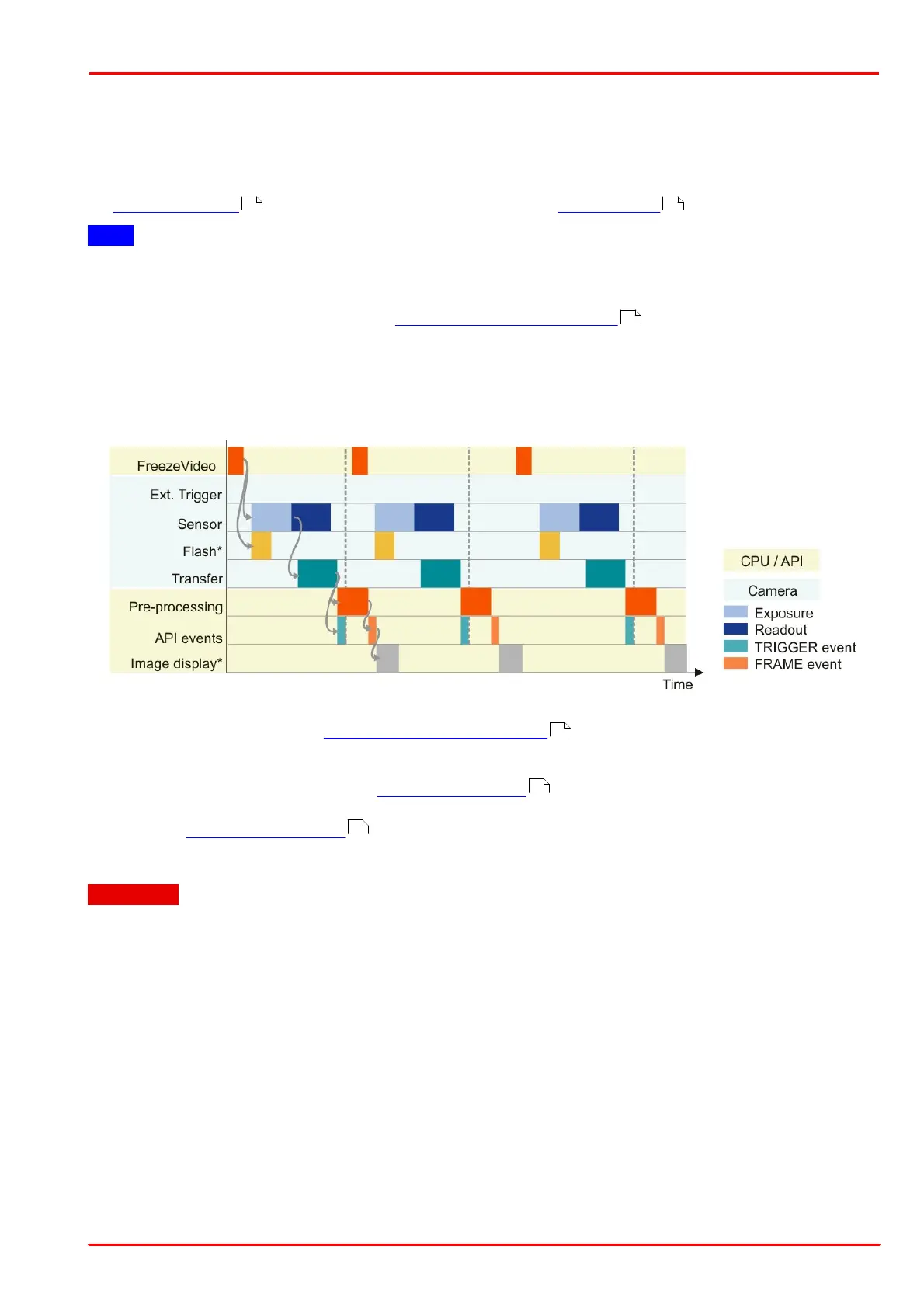

Software trigger mode with continuous image capture
* Optional flash function. See also Digital input/output (trigger/flash)
Hardware trigger mode
When this mode is enabled, calling the is_FreezeVideo() (Snap) function makes the camera ready for
triggering just once. When the camera receives an electrical trigger signal, one image is captured and transferred.
If you call the is_CaptureVideo() (Live) function, the camera is made ready for triggering continuously. An
image is captured and transferred each time an electrical trigger signal is received; the camera is then ready for
triggering again (recommended procedure).
Attention
When you use triggered image capture, the camera is only ready to process the next trigger signal after completion
of the data transfer to the PC. Trigger events that occur during image exposure or data transfer are ignored. An
internal counter records the number of ignored trigger events and can be read out from the PC.
104 327
47
47
223
177
