THORLABS DCU223 SERIES User Manual

© 2013 Thorlabs GmbH498
DCx Cameras
5.6.2 Accessories for DCC1x45X
For USB cables and accessories see also Accessories for all DCx cameras .
DCC1545M and DCC1645C CS mount cameras are delivered with both CS / C objective mount adapter and CS /
SM1 1" optics adapters.

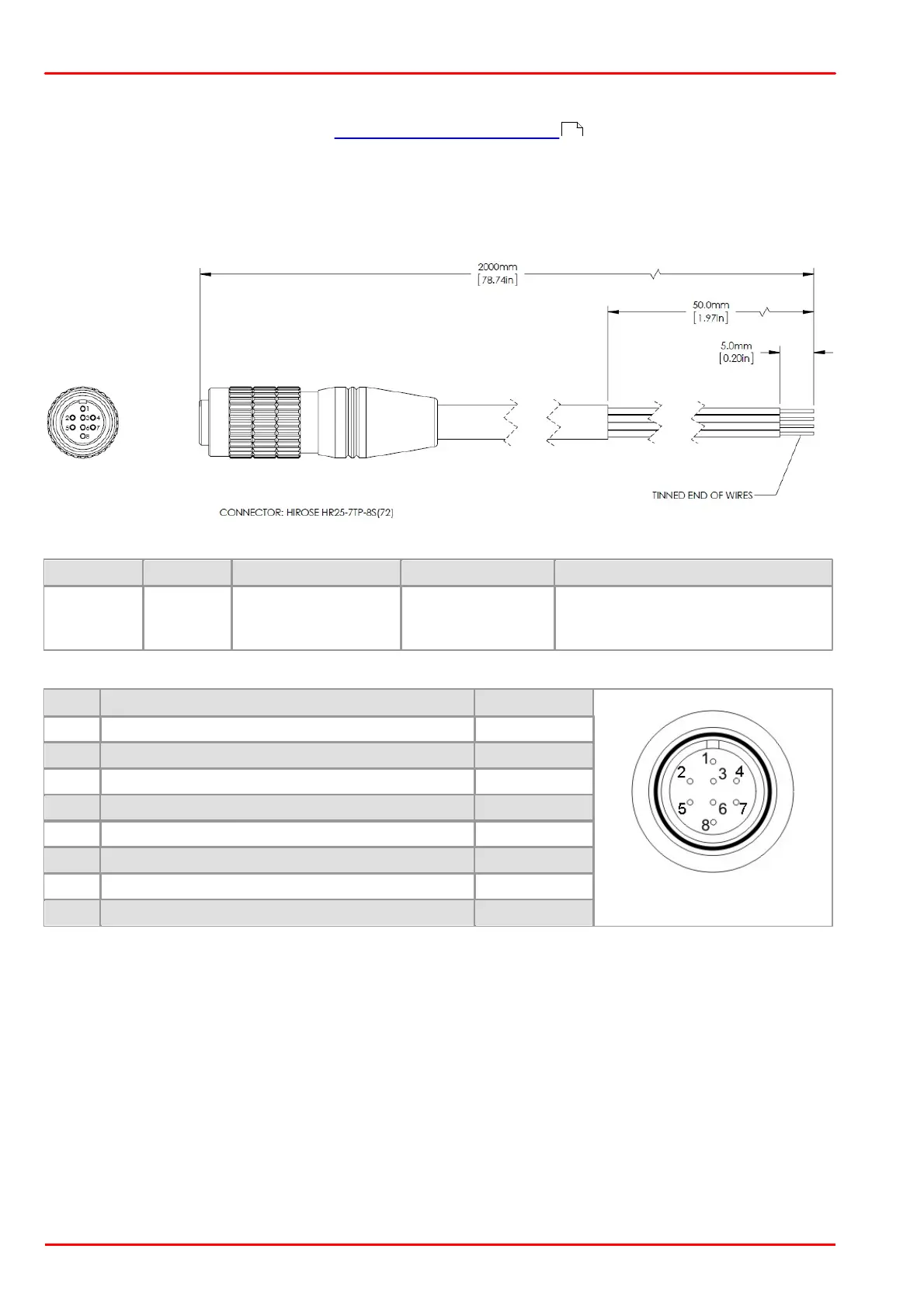

5.6.3 Accessories for DCC3240x
Type
Length
Cable Type
Function
Connector Camera Side
CAB-DCU-T3
3 m
Shielded high-flexible
control cable 8
x0.1mm, Ø 4.9mm
GPIO
digital in (trigger)
digital out (flash)
Hirose 8 pin (HR25)
Pin assignment of the 8-pin Hirose connector HR25 for trigger, flash and GPIO
Pin
Description
Cable color
Hirose connector female,
cable tip view
1
Ground (GND)
gray
2
Flash output, opto-decoupled (-)
green
3
GPIO 1, 3.3 V LVCMOS
blue
4
Trigger input, opto-decoupled (-)
brown
5
Flash output, opto-decoupled (+)
yellow
6
GPIO 2, 3.3 V LVCMOS
red
7
Trigger input, opto-decoupled (+)
white
8
Output supply voltage, 5 V (100 mA)
pink
497
